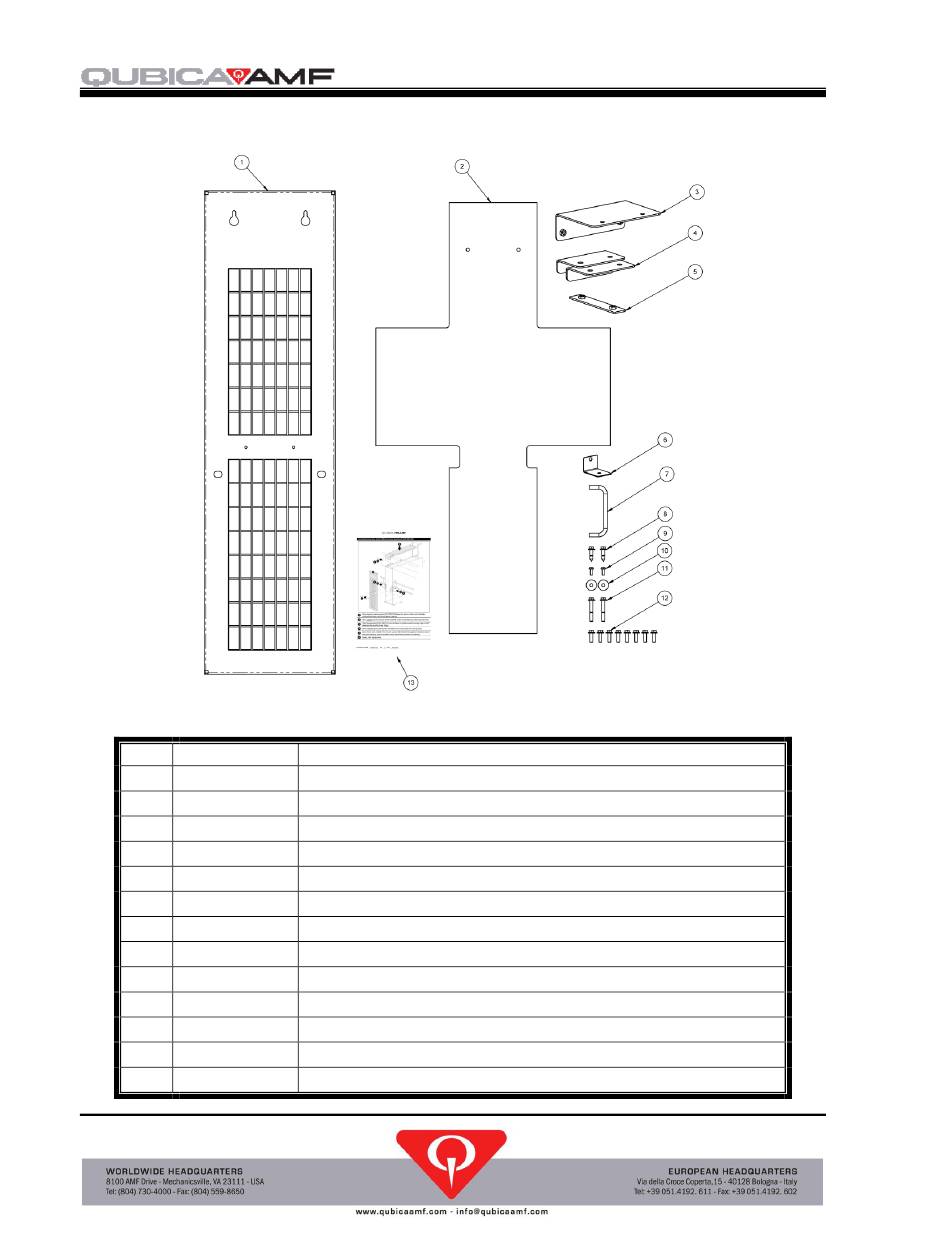

610-051-003 – TMS Accelerator Guard Kit
610-051-003 – TMS Accelerator Guard Kit
Item Part Number Description
1 051-020-032
2 051-070-086
3 051-020-030
4 051-020-035
5 051-070-097
6 088-200-313
7 088-501-144
8 859-048-167
9 818-740-082
10 000-026-865
11 801-749-281
12 801-749-121
13 400-051-014
400-051-010-01
TMS STRING PINSPOTTER OWNER'S MANUAL
ACCELERATOR GUARD GATE WELDMENT
ACCELERATOR WALKBOARD
ACCELERATOR GUARD GATE SUPPORT WELDMENT
ACCELERATOR GUARD GATE BRACKET WELDMENT
WALKBOARD NUT PLATE ASSEMBLY
MASK GUARD ANGLE BRACKET
HANDLE
FBLS 1/4 X 1.00 ZN
HWMS 10-32 X 0.50 ZN
FW 0.25 X 0.88 X 0.06 ZN
FBCS 1/4-20 X 1.75 GR8 BO
FBCS 1/4-20 X 0.75 GR8 BO
ACCELERATOR GUARD INSTALLATION SHEET
Rev. Date: 6/17
Page 5-56
