051-090-010 - Chain Tensioner Assembly - QubicaAMF TMS Tenpin String Pinspotter Owner's Manual

051-090-010 - Chain Tensioner Assembly

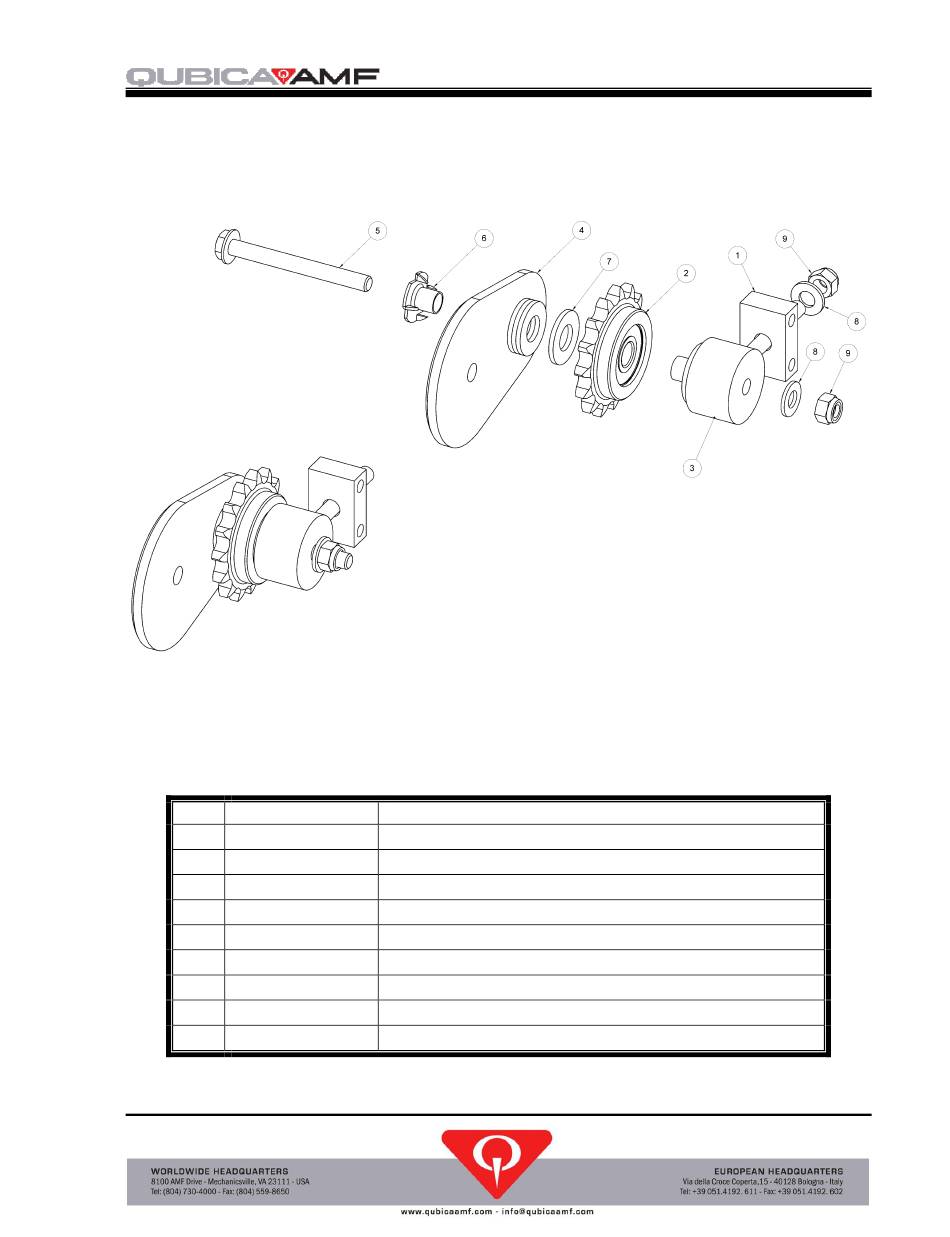

Chain Tensioner Assembly Parts List
Item Part Number
1 051-020-012
2 9102094
3 9102036
4 P-001A
5 801-757-481
6 7045-003716-043 TEE NUT, 3/8-16
7 7050-050106-009 WASHER, FLAT, ½ X 1-1/16
8 948-722-111
9 7036-003118-000 NUT, HEX, 5/16-18, NYLON LOCK
400-051-010-01
TMS STRING PINSPOTTER OWNER'S MANUAL
Description
CHAIN BLOCK
DRIVE CHAIN SPROCKET, FRONT
TENSIONER
DRAWBAR SHEAVE PLATE
SCREW, HEX WASHER HEAD, 5/16-18 X 3, BLACK
WASHER, FLAT, 5/16, BLACK
Rev. Date: 6/17
Page 5-23
