QubicaAMF 90XLi Manual Supplement

Pinspotter pin distributor
Hide thumbs
Table of Contents

Advertisement

Quick Links

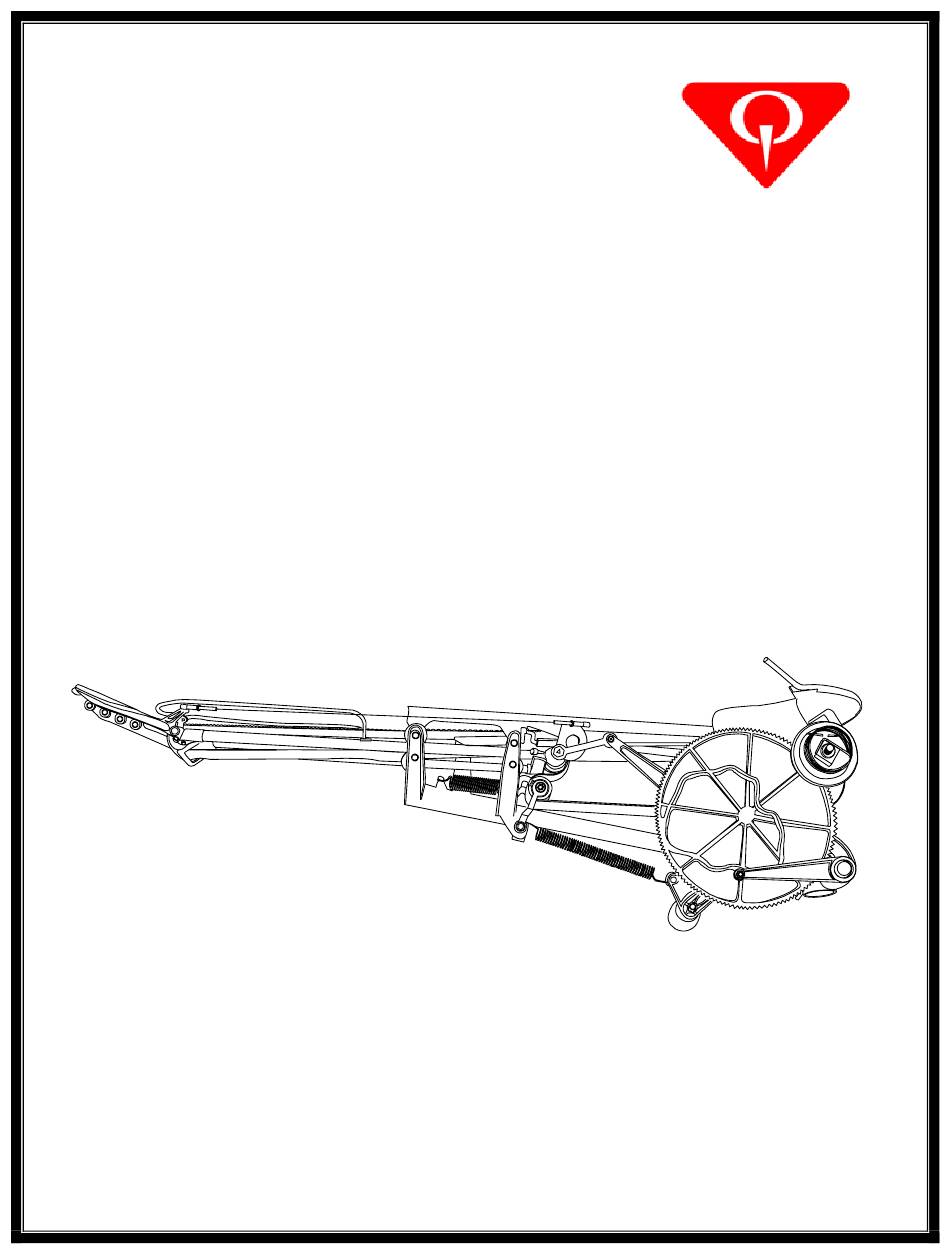

QubicaAMF 90XL
Pinspotter
i
PIN DISTRIBUTOR
Pinspotter Manual Supplement
DISTRIBUTOR 1
400-088-012 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90XLi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QubicaAMF 90XLi

Summary of Contents for QubicaAMF 90XLi

  • Page 1 QubicaAMF 90XL Pinspotter PIN DISTRIBUTOR Pinspotter Manual Supplement DISTRIBUTOR 1 400-088-012 Rev. B...
  • Page 3 ALL RIGHTS RESERVED All rights to this manual including the diagrams, figures, and technical specifications are the property of QubicaAMF Bowling Products, Inc. Reproduction or transmission of any of the material contained in this manual without the prior written permission of QubicaAMF Bowling Products, Inc.
  • Page 5 QubicaAMF 90XL PIN DISTRIBUTOR Manual Rev. B 400-088-012 UMMARY OF HANGES Change No. ECR No. List of Effective Pages Page Change No. Effective Date Revision A 11/20/2006...

  • Page 7: Table Of Contents

    Table of Contents SAFETY ......................1 INTRODUCTION ....................1-1 How To Use This Manual ..............1-1 DISTRIBUTOR OPERATION & ADJUSTMENT ..........2-1 Distributor Operation ................2-1 Distributor Belt Replacement ............. 2-2 2.2.1 Preparing Rough Top Belts ............... 2.2.2 Vice Lacer Instructions ..............2.2.3 Identifying a Good Splice ..............

  • Page 9: Safety

    SAFETY General Safety Guidelines QubicaAMF believes strongly in its commitment to safety. Proper service and repair are important to the safety of the mechanic as well as the safe, reliable operation of the pinspotters. Please read, understand, and follow all of the recommended safety procedures presented in this manual.
  • Page 10 QubicaAMF 90XLi PINSPOTTER Safety Labels and Symbols It is important to understand the safety labels and symbols used in this manual set. Three of these labels are used to show the relative risk associated with a particular activity or instruction. These labels are shown below in order of decreasing importance. Be aware...
  • Page 11 SAFETY Safety – Refer to the Service Manual before performing maintenance or repair. – Caution! Severe pinching hazard - belts. It is also important to understand that the use of these symbols and labels is not all- inclusive because it is impossible to warn of all the possible hazards and consequences that could result from failure to follow these instructions.
  • Page 12 QubicaAMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-012 Page 4 Rev. Date 11/06...

  • Page 13: Introduction

    • The Drawings and Parts Lists Section is designed to be an invaluable tool for identifying parts and part numbers for maintenance and repair of the unit. This manual is intended to be a supplement to, and is included with, the QubicaAMF 90XLi Pinspotter Manual Set.
  • Page 14 QubicaAMF 90XLi PINSPOTTER This Page Intentionally Left Blank 400-088-012 Page 2 Rev. Date 11/06...

  • Page 15: Distributor Operation & Adjustment

    SECTION 2.0 Operation & Adjustment DISTRIBUTOR OPERATION & ADJUSTMENT Distributor Operation The distributor transfers pins from the pin elevator wheel to the bin assembly. The distributor is driven by the back end motor through an adjustable clutch to its various positions.

  • Page 16: Distributor Belt Replacement

    The lacing will add approximately ¼ inch to the overall length. The QubicaAMF 90XLi pinspotter distributor uses the following belt components: • 088-001-350, Grooved Distributor Belt – precut, skived, and chamfered • 088-000-071, Stainless Steel Belt Lacing (2 required per belt) •...

  • Page 17: Preparing Rough Top Belts

    Belt Skiver is a safe and be done virtually anywhere. Top Belt Skiver (Fig. 2-2) effective alternative to ROUGH TOP BELT SKIVER – QubicaAMF Part # 792-516-021 Figure 2-2 Instructions: 1. Place the belt on a solid 3. Maintain an even To Sharpen: (Fig 2-5 A &...
  • Page 18 QubicaAMF 90XLi PINSPOTTER 2.2.2 Vise Lacer Instructions The clipper belt lacer is provided to help the center mechanic manufacture replacement distributor belts. The optimum belt length can vary slightly from distributor to distributor. If possible, match the existing belt length. The belt lacing will add approximately 1/4 inch to the overall, installed belt length.

  • Page 19: Identifying A Good Splice

    4. Use one more hook on leading edge than on trailing Figure 2-7b edge (Fig. 2-7b). 5. Chamfer the trailing edge. (QubicaAMF’s new grooved belts are already chamfered.) 6. Laces should be uniformly embedded across the entire width of the splice.

  • Page 20: Distributor Removal

    QubicaAMF 90XLi PINSPOTTER Distributor Removal 1. Disconnect the drive shaft and universal joint from the distributor drive unit. 2. Remove the lateral drive spring and safety link spring from the base of the distributor (see Figure 2-8). 3. Make sure that the elevator wheel is turned so that a pin bracket is not directly above the orientor pan of the distributor.
  • Page 21 SECTION 2.0 Operation & Adjustment Clutch Spring Trip Stop Rod Assembly Return Spring D IS T R IB U T O R 2 DISTRIBUTOR 2 Figure 2-9 3. Set the clutch spring tension (Figure 2-9). With the clutch nut finger tight on the shaft, rotate the spring’s adjusting clip in the counterclockwise direction until you just start to feel some spring tension.

  • Page 22: Distributor Cam Operation

    QubicaAMF 90XLi PINSPOTTER Distributor Cam Operation The cam has a timing mark along its outer edge at the base of a valley between two teeth. This bump and a notched tooth on the pinion gear must be aligned for proper timing.

  • Page 23: Distributor Roller Adjustment

    SECTION 2.0 Operation & Adjustment Distributor Roller Adjustments 1. Starting with the distributor at the #1 bin position and the back end drive motor turned off, telescope the distributor inward so that it is at its minimum length. 2. Position the front lower adjustable roller in its lowest position so that the distance between the roller and the carriage tube is at its maximum.

  • Page 24: Distributor Trip Lever

    QubicaAMF 90XLi PINSPOTTER Trip Rod Tube Cable Assembly Figure 2-12 DISTRIBUTOR 3 D IS T R IB U T O R 3 Distributor Trip Lever 1. Operate the distributor trip lever. Inspect for mechanical binds in the lever and associated linkage. Check that the rollers turn freely.

  • Page 25: Lubrication Instructions

    SECTION 3.0 Lubrication LUBRICATION INSTRUCTIONS LUBRICATION Lubrication is one of the most important items in the proper operation and maintenance of the distributor. Care must be taken to ensure that lubricants are applied correctly. Avoid excessive lubrication to minimize the possibility of transmitting lubricants to the bowler.

  • Page 26: Distributor Drive

    QubicaAMF 90XLi PINSPOTTER DISTRIBUTOR DRIVE - Figure 3-1 1 Trip support casting bearings (2 places): apply 2 drops of oil every 3 months. 2 Pinion gear access holes (2 places): apply 1 drop of oil in each hole every 3 months.
  • Page 27 SECTION 3.0 Lubrication DISTRIBUTOR - Figure 3-2 1 Trip lever rollers (8 places): apply 1 drop of oil every 3 months. 2 Trip lever bushings (2 places): apply 1 drop of oil every 3 months. 3 Carriage tubes (4 places): apply a light film of oil every 3 months along the top and bottom of each tube.
  • Page 28 QubicaAMF 90XLi PINSPOTTER DISTRIBUTOR - Figure 3-3 1. Trip rod (front) (6 places): 1 drop of oil every 2 months. 2. Trip rocker arm (2 places): apply 1 drop of oil to each side every 3 months. 3. Roller tracking bracket (3 places): 1 drop of oil every 2 months.

  • Page 29: Troubleshooting

    SECTION 4.0 Troubleshooting TROUBLESHOOTING PROBLEM: Distributor does not feed pins at correct bin position. START Check bump on nylon gear with Distributor drive cam beveled tooth on pinion gear. not indexed with Align if necessary. Make sure pinion gear? Distributor is in the #1 bin position when aligning.
  • Page 30 QubicaAMF 90XLi PINSPOTTER PROBLEM: Pins feed into bin continuously at one bin position or too many pins in one bin location. START Distributor clutch Check spring tension. out of Adjust if necessary. adjustment? Distributor rollers Adjust distributor out of rollers.
  • Page 31 SECTION 4.0 Troubleshooting PROBLEM: Pins delivered head end first to bin pockets. START Pins slow in orientating, Check and clean putting 2 pins too close orientor pan. together? Distributor orientor pan Adjust orientor pan. too far from pin wheel? Distributor orientor pan Level the pan side to not Level side at pin wheel.
  • Page 32 QubicaAMF 90XLi PINSPOTTER PROBLEM: Distributor front end hits bin during pin feed. START Place shims between Distributor support front end of the support assembly too low? assembly and the cross bar as required. Bin assembly binding Find problem with bin and jammed upwards and repair.

  • Page 33: Drawings And Parts Lists

    SECTION 5.0 Drawings and Parts Lists 400-088-012 Page 5-1 Rev. Date 11/06...

  • Page 34: Distributor Assembly 1

    DISTRIBUTOR ASSEMBLY 1 SECTION 5.0 Drawings and Parts Lists 400-088-012 Page 5-2 Rev. Date 11/06...
  • Page 35 DISTRIBUTOR ASSEMBLY 1 QubicaAMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 809-849-165 SCREW, HEX, ¼ - 20 X 1 070-006-052 DRIVE ARM 070-006-084 TRIP STOP SUPPORT BRACKET 070-007-119 DRIVE ARM ASSY (includes: 33, 34, 36 & 37)

  • Page 36: Distributor Assembly 2

    DISTRIBUTOR ASSEMBLY 2 SECTION 5.0 Drawings and Parts Lists 400-088-012 Page 5-4 Rev. Date 11/06...
  • Page 37 DISTRIBUTOR ASSEMBLY 2 QubicaAMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION see 1A BELT 000-024-679 BEARING 070-006-757 BELT ASSEMBLY (includes items 1, 2, & 3) see 24A IDLER CARRIAGE PULLEY 070-006-036 BELT LACING 070-006-011 PULLEY ASSEMBLY (includes 23 & 24)

  • Page 38: Distributor Assembly 2 (Continued)

    DISTRIBUTOR ASSEMBLY 2 - continued SECTION 5.0 Drawings and Parts Lists 400-088-012 Page 5-6 Rev. Date 11/06...
  • Page 39 DISTRIBUTOR ASSEMBLY 2 - continued QubicaAMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION see 45A CARRIAGE SUPPORT CASTING 070-006-688 CARRIAGE SUPPORT ASSY (incl: 45 & 47) 000-026-031 BELT TIGHTENER SPRING 701-710-098 BEARING, UNIBALL 070-006-117 BEARING, GROOVED, CONCENTRIC...

  • Page 40: Distributor Drive Shaft Assembly

    DISTRIBUTOR DRIVE SHAFT ASSEMBLY SECTION 5.0 Drawings and Parts Lists DISTRIBUTOR DRIVE SHAFT ASY 400-088-012 Page 5-8 Rev. Date 11/06...
  • Page 41 DISTRIBUTOR DRIVE SHAFT ASSEMBLY QubicaAMF 90XLi PINSPOTTER ITEM QTY PART # DESCRIPTION ITEM QTY PART # DESCRIPTION 090-002-018 SHAFT, R.H. MACHINE 090-006-102 DISTRIBUTOR DRIVE SHAFT ASSY – R.H. (Includes items 1 & 3 through 10) 090-002-017 SHAFT L.H. MACHINE 090-006-103 DISTRIBUTOR DRIVE SHAFT ASSY –...
