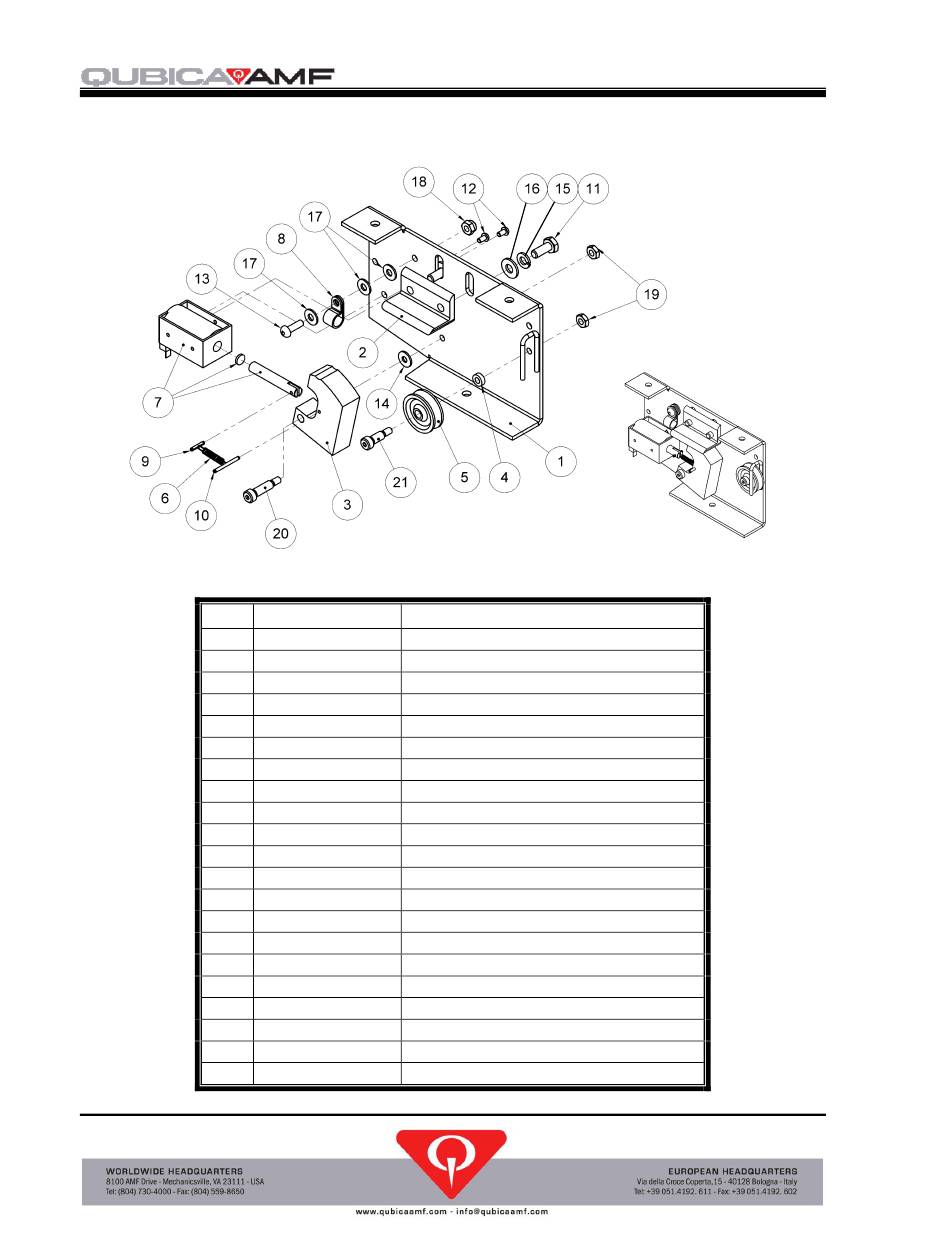

Pin Brake Assembly

Pin Brake Assembly Parts List
Item Part Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
400-051-010-01
TMS STRING PINSPOTTER OWNER'S MANUAL
Description
9102070 BRAKE PLATE
9102071 BRAKE ANGLE PLATE
9103070 BRAKE CAM
9103071 PLASTIC SPACER
9103072 GUIDE WHEEL
9105070 EXTENSION SPRING
758-002-002 SOLENOID ASSEMBLY, 220 vac
E-660-09 CABLE CLAMP
7006-000900-050 SPRING PIN, 3/32 X 1/2
7006-000900-100 SPRING PIN, 3/32 X 1
7010-002528-062 SCREW, HEX, 1/4-28 X 5/8
7016-410632-025 SCREW, ROUND HEAD, 6-32 X 1/4
7016-411032-062 SCREW, ROUND HEAD, 10-32 X 5/8
7150-019050-004 WASHER, FLAT, .193 X 1/2 X 3/64
7060-025046-006 LOCK WASHER,1/4
7050-028062-006 WASHER, FLAT, 9/32 X 5/8 X 1/16
7050-021050-006 WASHER, FLAT, 7/32 X 1/2 X 3/ 64
7036-001032-000 NUT, HEX, 10-32 NYLON INSERT
7034-001024-000 NUT, HEX, 10-24
7020-002500-075 SHOULDER SCREW, 1/4 X 3/4
7020-002500-050 SHOULDER SCREW, 1/4 X 1/2
Rev. Date: 6/17
Page 5-28
