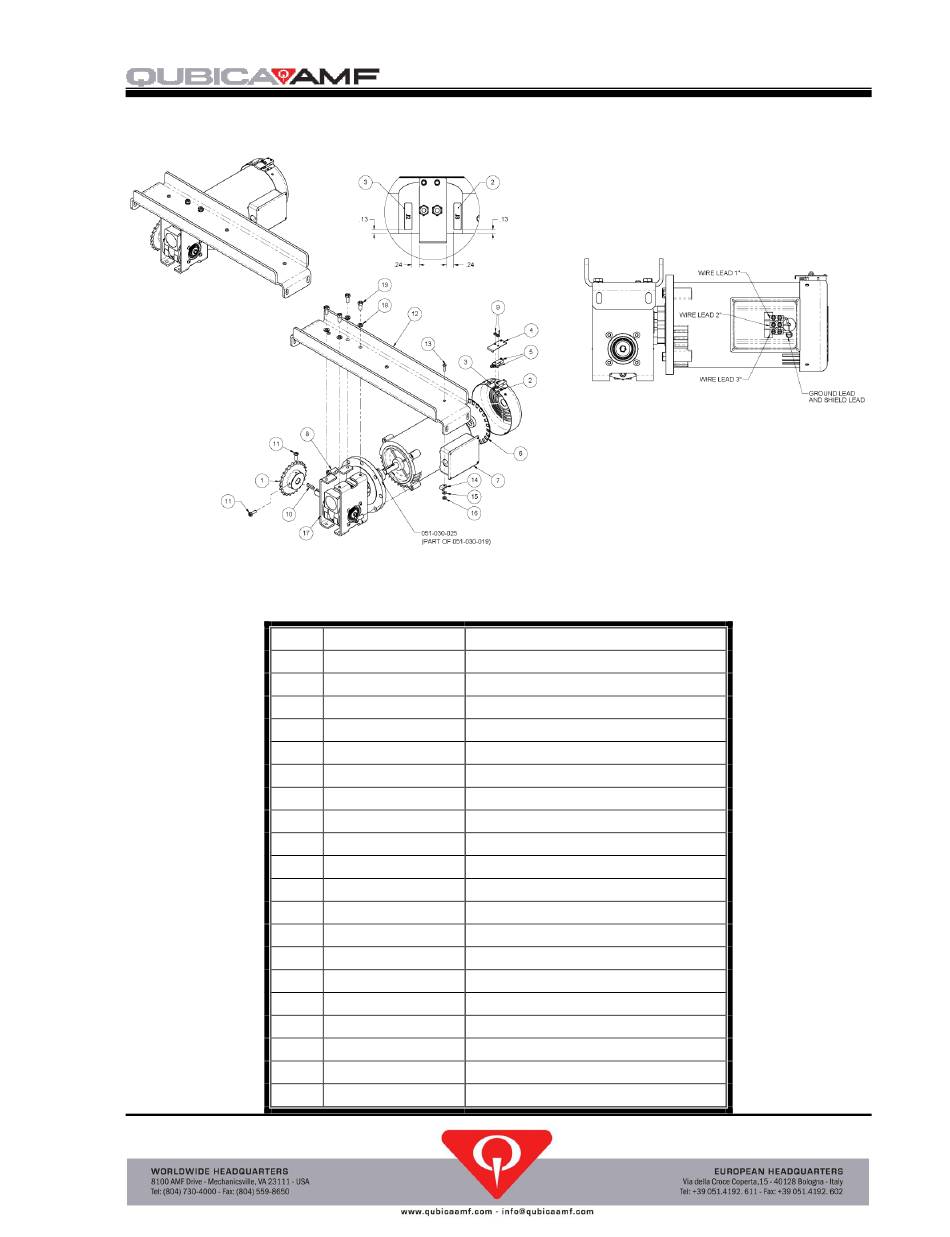

Motor, Reduction Gear, & Encoder Assembly
Motor, Reduction Gear, & Encoder Assembly Parts List
Item Part Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
400-051-010-01
TMS STRING PINSPOTTER OWNER'S MANUAL
Description
9102292
SPROCKET
051-010-030
J3 ENCODER LABEL
051-010-029
J2 ENCODER LABEL
302-2200-00
CONNECTION RETAINER
770-060-251
ENCODER OPTICAL SENSOR
051-030-002-01
MOTOR ENCODER ASSEMBLY
051-030-015
TMS DRAWBAR MOTOR
809-865-165
HHCS 3/8-16 X 1.00 GR8 PB
7036-000632-000 HLN 6-32 ZN NM
302-2410-00
KEY SQ 0.19 X 1.00 Q
809-849-125
HHCS 1/4-20 X 0.75 GR8 BO
051-020-026
DRAWBAR MOTOR BRACKET
7016-411032-075 PHPMS 10-32 X 0.75 ZN
744-107-016
CMP CBL 0.19 X 0.50 NY
7050-021050-006 FW 10 SAE ZN
7034-001032-000 HMSN 10-32 ZN
051-030-019
TMS GEARBOX
951-156-002
SWM 5/16 ANSI BO
809-857-125
HHCS 5/16-18 X 0.75 GR8 PB
7014-002520-050 SSS 1/4-20 X 0.50 CUP BO
Rev. Date: 6/17
Page 5-25
