Extended diagnostic functions
8.2

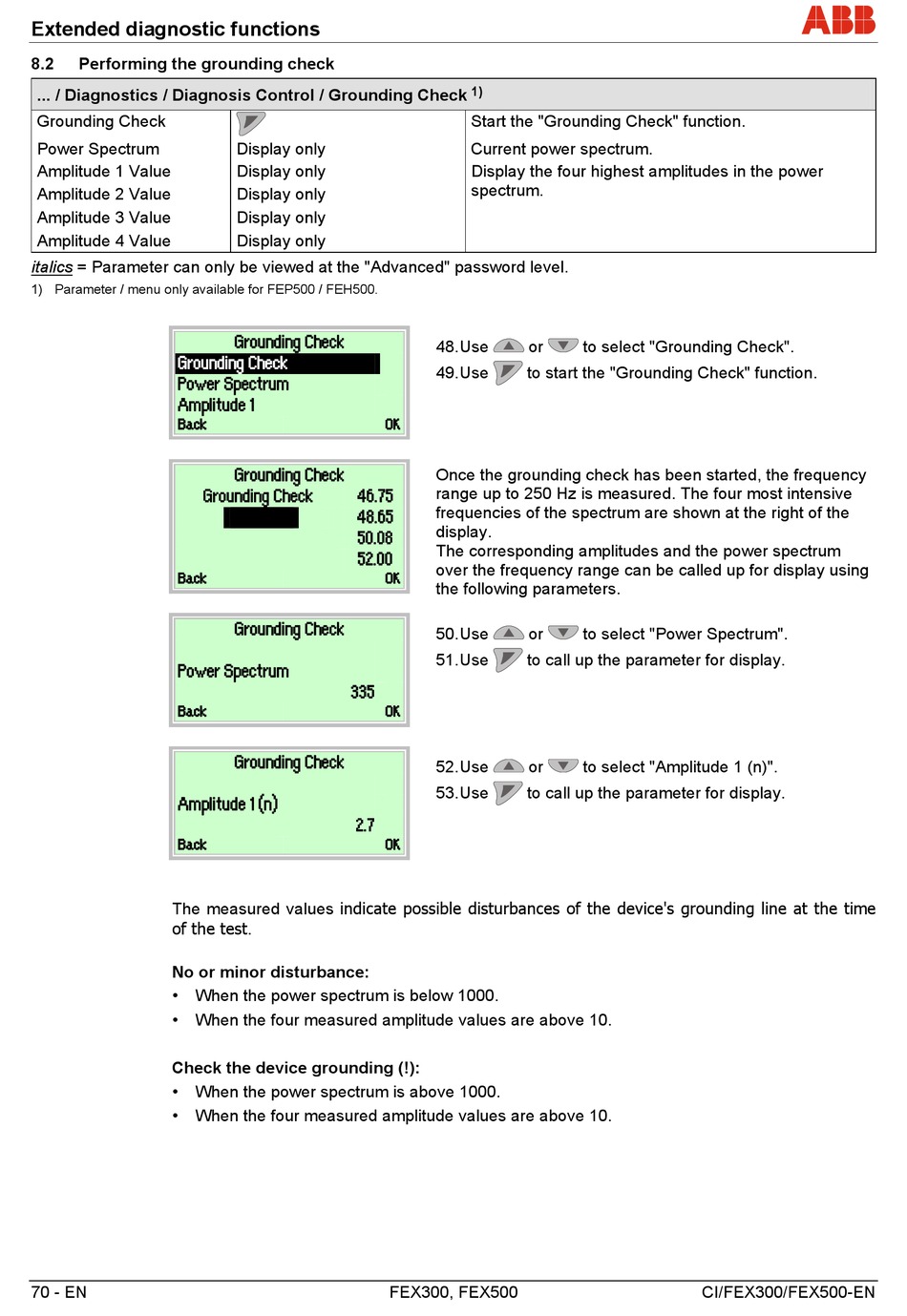

Performing the grounding check

... / Diagnostics / Diagnosis Control / Grounding Check
Grounding Check
Power Spectrum
Amplitude 1 Value
Amplitude 2 Value
Amplitude 3 Value
Amplitude 4 Value
italics = Parameter can only be viewed at the "Advanced" password level.
1) Parameter / menu only available for FEP500 / FEH500.
Grounding Check
Power Spectrum
Amplitude 1
Back
Back
Power Spectrum
Back
Amplitude 1 (n)
Back
The measured values indicate possible disturbances of the device's grounding line at the time
of the test.
No or minor disturbance:
• When the power spectrum is below 1000.
• When the four measured amplitude values are above 10.
Check the device grounding (!):
• When the power spectrum is above 1000.
• When the four measured amplitude values are above 10.
70 - EN
Display only
Display only
Display only
Display only
Display only
Grounding Check
Grounding Check
Grounding Check 46.75
48.65
50.08
52.00
Grounding Check
335
Grounding Check
2.7
1)
Start the "Grounding Check" function.
Current power spectrum.
Display the four highest amplitudes in the power
spectrum.
48. U se or
49. U se to start the "Grounding Check" function.
OK
Once the grounding check has been started, the frequency
range up to 250 Hz is measured. The four most intensive
frequencies of the spectrum are shown at the right of the
display.
The corresponding amplitudes and the power spectrum
over the frequency range can be called up for display using
OK
the following parameters.
50. U se or
51. U se to call up the parameter for display.
OK
52. U se or
53. U se to call up the parameter for display.
OK
FEX300, FEX500
to select "Grounding Check".
to select "Power Spectrum".
to select "Amplitude 1 (n)".
