6.3.1.3 Invoking the error description
Additional details about the occurred error can be called up on the information level.
Diagnostics
Operator Page 1
Operator Page 2
Back
Back
Notice
For a detailed error description and information on troubleshooting refer to the "Error
messages" section in the corresponding operating instructions.
6.4

Configuring the current output

The factory setting for the current output is 4 ... 20 mA.
For devices without explosion protection or for operation in Zone 2 / Div. 2 the following
is valid:
The signal can be configured in "active" or "passive" mode. The current setting is contained in
the order confirmation.
For devices for operation in Zone 1 / Div. 1 the following is valid:
For devices designed for use in Ex Zone 1 / Div.1, the current output cannot be reconfigured
subsequently. The configuration required for the current output (active / passive) must be
specified when the order is placed.
For the correct current output design (active / passive), see the marking contained in the
device's terminal box.
If the signal is configured in "active" mode, no external power may be supplied to the current
output.
If the signal is configured in "passive" mode, external power must be supplied to the current
output (similar to pressure and temperature transmitters).
50 - EN
Process display
Electronics
Operator Menu
Select
Electronics
F123,321
Brief description
Information
Exit
FEX300, FEX500

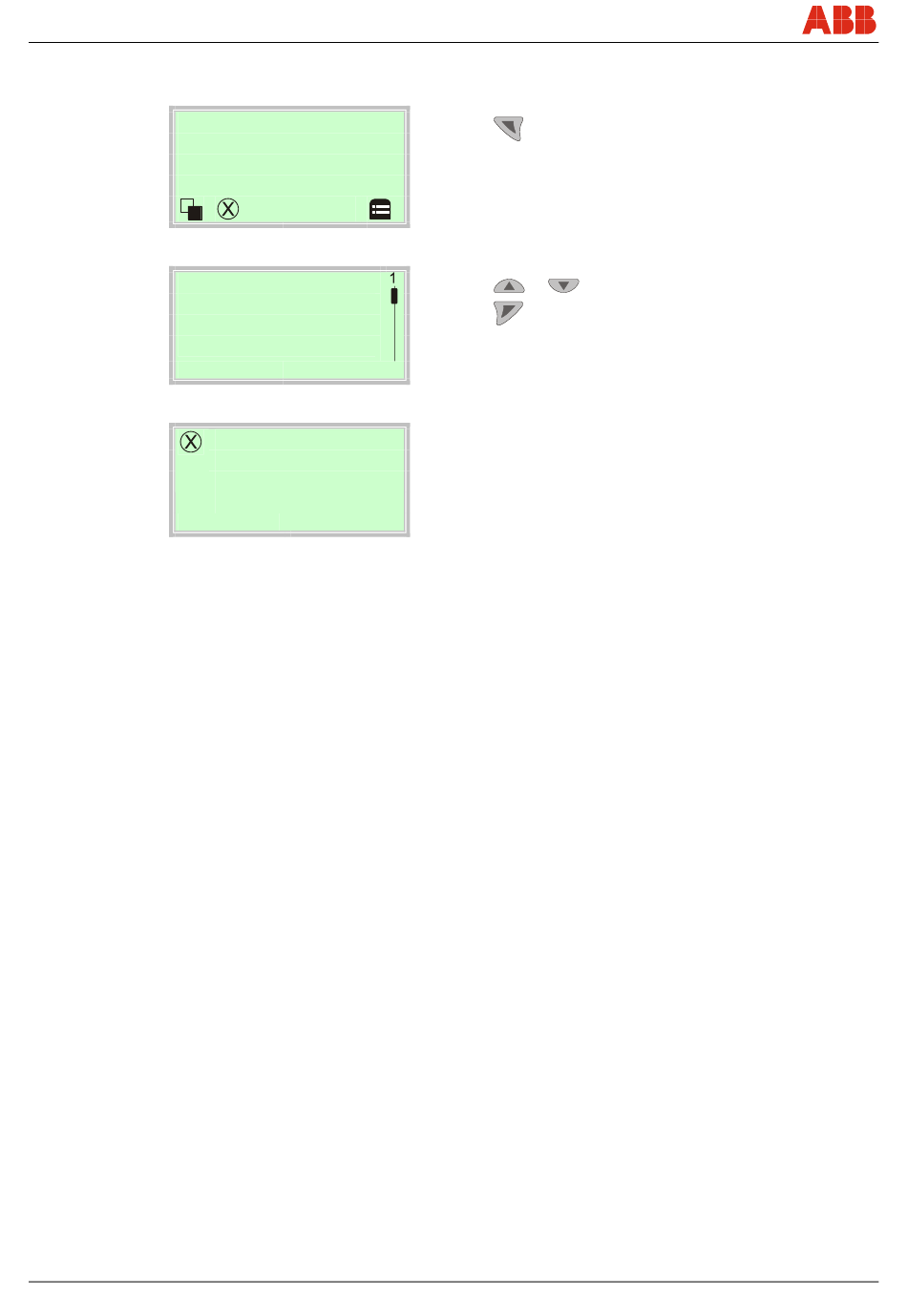

1. Use to switch to the information level.
2. Use or , select the "Diagnostics" submenu.
3. Use to confirm your selection.
The first line shows the area in which the error has
occurred.
The second line shows the unique error number.
The next lines show a brief description of the error and
information on how to remedy it.
