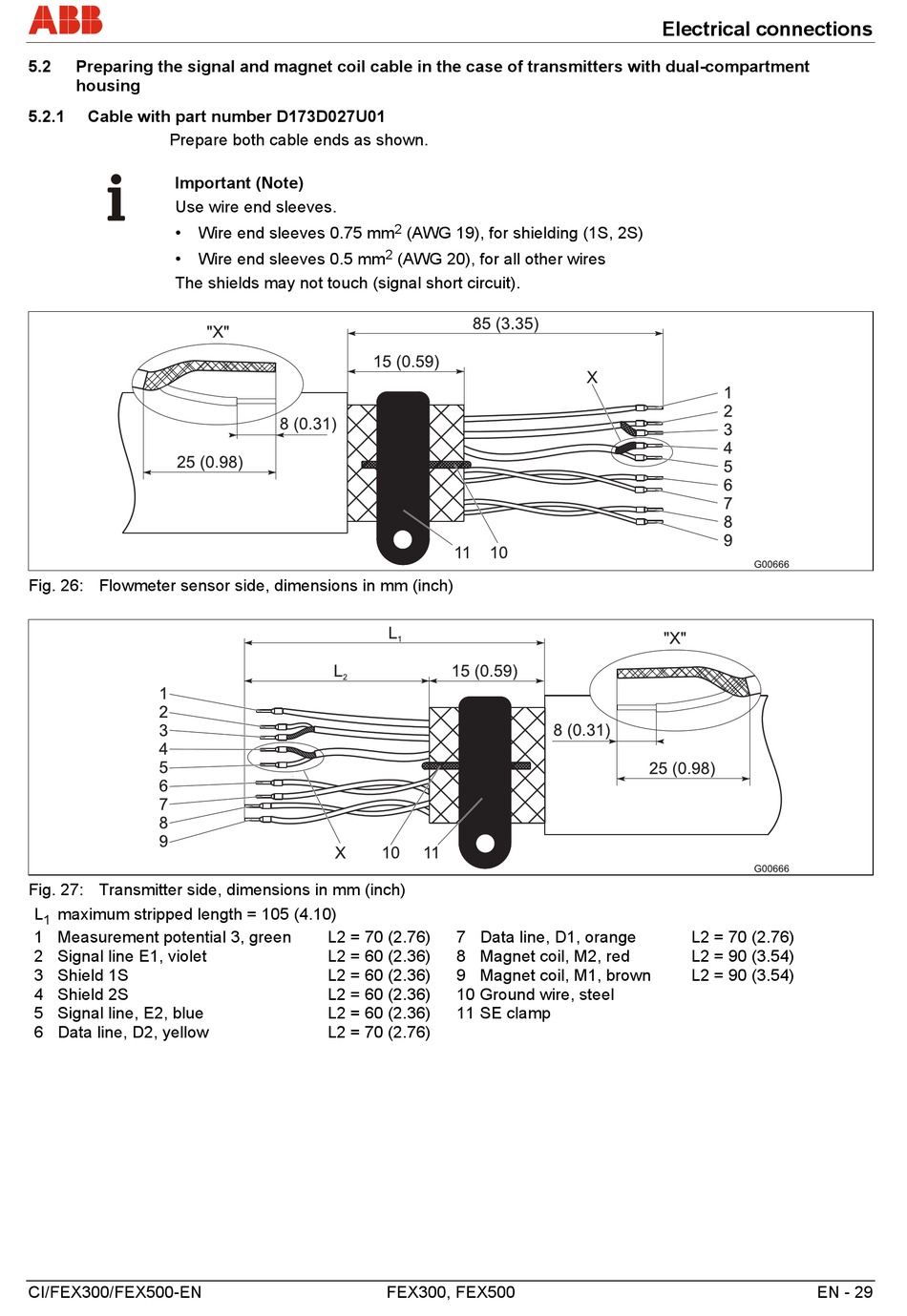

5.2 Preparing the signal and magnet coil cable in the case of transmitters with dual-compartment
housing
5.2.1

Cable with part number D173D027U01

Prepare both cable ends as shown.
Important (Note)
Use wire end sleeves.
• Wire end sleeves 0.75 mm
• Wire end sleeves 0.5 mm
The shields may not touch (signal short circuit).
Fig. 26: Flowmeter sensor side, dimensions in mm (inch)
Fig. 27: Transmitter side, dimensions in mm (inch)
L maximum stripped length = 105 (4.10)
1
1 Measurement potential 3, green
2 Signal line E1, violet
3 Shield 1S
4 Shield 2S
5 Signal line, E2, blue
6 Data line, D2, yellow
CI/FEX300/FEX500-EN
2
(AWG 19), for shielding (1S, 2S)
2
(AWG 20), for all other wires
L2 = 70 (2.76) 7 Data line, D1, orange
L2 = 60 (2.36) 8 Magnet coil, M2, red
L2 = 60 (2.36) 9 Magnet coil, M1, brown
L2 = 60 (2.36) 10Ground wire, steel
L2 = 60 (2.36) 11SE clamp
L2 = 70 (2.76)
FEX300, FEX500
Electrical connections
L2 = 70 (2.76)
L2 = 90 (3.54)
L2 = 90 (3.54)
EN - 29
