6.5.2

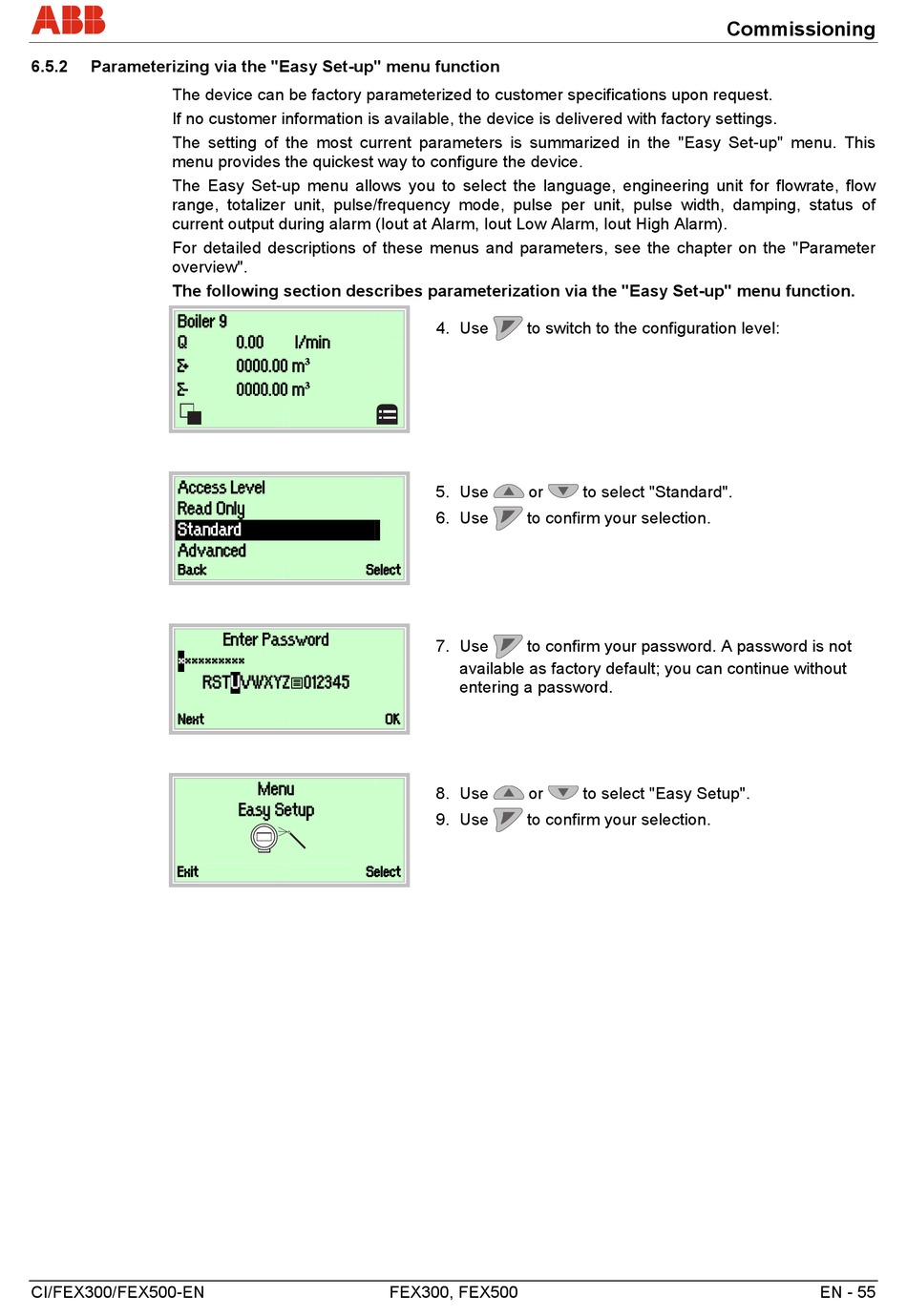

Parameterizing via the "Easy Set-up" menu function

The device can be factory parameterized to customer specifications upon request.
If no customer information is available, the device is delivered with factory settings.
The setting of the most current parameters is summarized in the "Easy Set-up" menu. This
menu provides the quickest way to configure the device.
The Easy Set-up menu allows you to select the language, engineering unit for flowrate, flow
range, totalizer unit, pulse/frequency mode, pulse per unit, pulse width, damping, status of
current output during alarm (Iout at Alarm, Iout Low Alarm, Iout High Alarm).
For detailed descriptions of these menus and parameters, see the chapter on the "Parameter
overview".
The following section describes parameterization via the "Easy Set-up" menu function.
Boiler 9
Q
Σ+
Σ-
Access Level
Read Only
Standard
Advanced
Back
**********
Next
Exit
CI/FEX300/FEX500-EN
0.00 l/min
0000.00 m³
0000.00 m³
Select
Enter Password
RSTUVWXYZ012345
Menu
Easy Setup
Select
4. Use to switch to the configuration level:
5. Use or
6. Use to confirm your selection.
7. Use to confirm your password. A password is not
available as factory default; you can continue without
entering a password.
OK
8. Use or
9. Use to confirm your selection.
FEX300, FEX500
Commissioning
to select "Standard".
to select "Easy Setup".
