Watts 2 Manual

Model No. 2, 2T and 2PEX

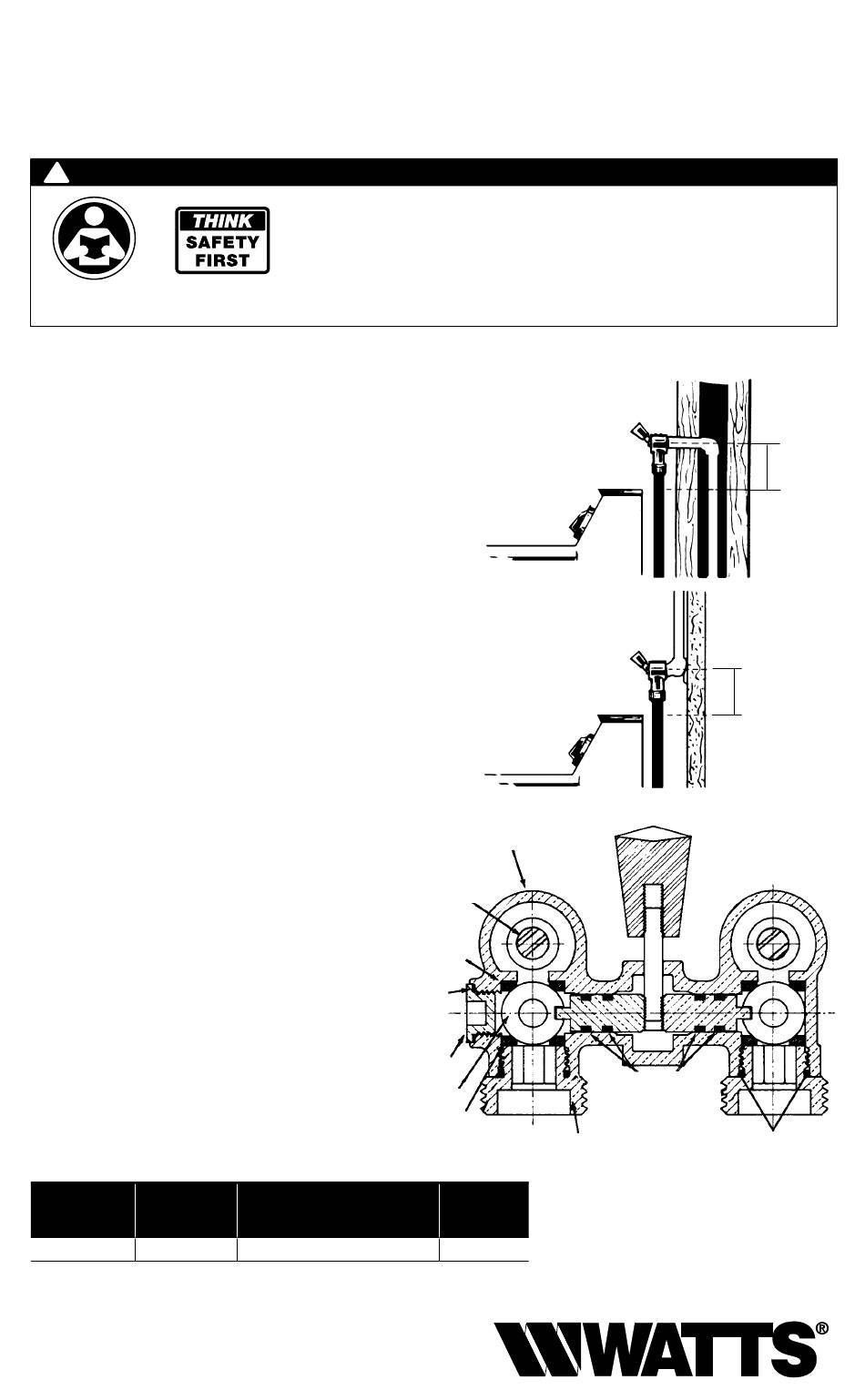

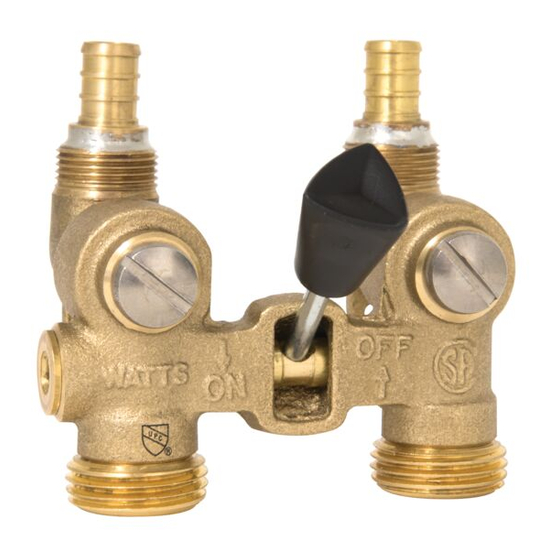

Ball-type Washing Machine Shutoff Valve
WARNING
!

Installation Instructions

1. No. 2 features 1/2" solder or
adapters.
No. 2T features
adapters.
No. 2 PEX features
2. Disassemble adapters and remove
O-rings prior to soldering.
3. Install a minimum of 3" (76mm) above
top of washing machine Ell adapters can
be orientated to top, bottom or side.
4. Pipe connections are 2
center.
Model M2 identification
shown on body casting.
Kit for No. 2-M2 consists of:
1-Side Plug O-ring
2-Adapter O-rings
4-PTFE Discs
2-Adapter Screw O-rings
2-Spindle O-rings
2-Hose Adapter O-rings
ORDERING KIT NO.
CODE NO.
0862000 2-M2-RK
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use information can
result in death, serious personal injury, property damage, or
damage to the equipment.
Keep this Manual for future reference.
⁄ " compression
5
8
⁄ " solder or male thread
1
2
⁄ " PEX adapters.
1
2
⁄ " (60mm) on
3
8
Screw O-ring
Upper PTFE Disc
Side Plug
O-ring
Side Plug
Ball Valve
Lower PTFE Disc
FOR
2-M2, 2T-M2, 2M2PEX
No. 2
No. 2T
Adapter O-ring
Hose
Adapter
SIZE
⁄ "
1
2
3" min.
Spindle O-ring
Hose Adapter
O-ring
IS-2-M2
3" min.
