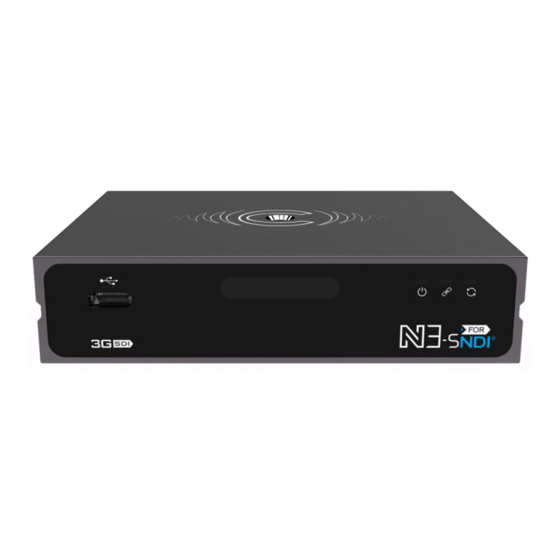

N3-s SDI and NDI Bi-directional Converter
NDI Encoder/Decoder
（2022-5 Version）
Before using this product, it is recommended that you read the guide carefully. To ensure
your personal safety and avoid physical or electrical damage to the device, please strictly
follow the instructions of this guide to install and use it under the guidance of professionals.
Incorrect electrical connections or physical installation may cause permanent damage to the
device and even threaten personal safety.
Leading solution provider of IP-Based video transmission
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kiloview N3-s SDI
Summary of Contents for Kiloview N3-s SDI
- Page 1 Leading solution provider of IP-Based video transmission Quick Start Guide N3-s SDI and NDI Bi-directional Converter NDI Encoder/Decoder （2022-5 Version） Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals.
-
Page 2: Packing List
1 Packing List (1) N3-s×1 (2) Power Supply×1 (3) Cold Shoe×1 (4) Warranty Card×1 (5) Quick Start Guide×1 (6) Type-C to USB Adapter×1 2 Device Interface (1) 1GbE port with PoE (6) Tally (2) SDI Output (7) Type-C Port (3) SDI Input (8) Tally (4) 3.5mm Line In/Line Out (9) Working Indicator... -
Page 3: Device Indicators
(10) Reset 3 Device Indicators Video status under encoding mode Tally Green light Red light Name Color Status Description Always on Power connected Power White Power off or failure LED Indicators Flashing/Always on Network connected LINK White Network disconnected/abnormal Flashing Working normally White Always on... - Page 4 4 Applications 4.1 Connection under encoding mode LOOP SDI Video Source DC5V Power Supply AC100~240V Network Switcher Note Please use the standard power adapter equipped in the package. Otherwise, other ⚫ unqualified power adaptor may damage the device. You can also choose to power via PoE and D-Tap.
-
Page 5: Device Discovery
Visit website https://www.kiloview.com/en/ndi/multiview/, select “NDI Series” “ Multiview”and click download, then install software step by step as instructions.Kiloview Multiview is a free software for NDI video discovery, management and multi-view, which is popular and highly praised all over the world. - Page 6 Start the Kiloview Multiview, open the setting interface. Find the device in the device discovery list. Enter management interface through web browser.
- Page 7 Note N3-s naming rules：N3-s-<serial number>. Serial number refers to the numbers pasted on the device label. Two ways of accessing to the device management page Method 1：Drag the device directly in the discovery list to the left window, wait and ⚫...
- Page 8 There are icons for switching between encoding mode and decoding mode on the left of the N3-s Web management page. When the device works under other mode, click icon “Encoder” to switch back to encoding mode. For more configuration and help for N3-s, please visit Kiloview official website https://www.kiloview.com/en/support/docs/N3-s/.
- Page 9 9 presets, you can keep nine preset decoding sources in the preset list, thus you can quickly switch and decode by clicking different NDI sources from number 1 to 9 at any time. For more configuration and help of N3-s decoding mode, please visit Kiloview official website “https://www.kiloview.com/en/support/docs/N3-s/”...
-
Page 10: Firmware Upgrading
8 Firmware upgrading 8.1 Download the upgrading firmware Kiloview will continue to provide the firmware of updating functions and fix bugs “ for N3-s. Kindly visit https://www.kiloview.com/en/support/download/” Select “NDI” in the filter list > “N3-s”, find the latest firmware to download. -
Page 11: Restore Factory Settings
9 Restore factory settings If the device cannot work normally after you modify the parameters or you forgot IP configuration and could not find the device, please restore factory settings. Two methods for restoring factory settings: 1) If you can login to web page, then via the web page, click "Settings>System settings>Restore factory settings". - Page 12 To prolong the device life，please unplug the power cable and keep it properly if you do not use it for a long time. For more questions, please contact us via： https://www.kiloview.com/en/support KILOVIEW Electronics CO., LTD. Tel：86-18573192787 Email：support@kiloview.com Web：www.kiloview.com/en Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District,...
