Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid
physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the
guidance of professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device
and even threaten personal safety.
Quick Start Guide V1.0
Advertisement
Related Manuals for Kiloview NDI CORE MAX
Summary of Contents for Kiloview NDI CORE MAX
- Page 1 Applications NDI CORE MAX Configurations Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals.

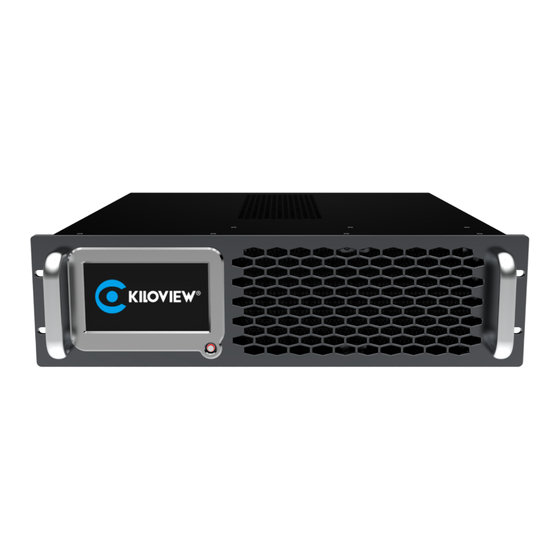

- Page 2 Page 1 1 Packing List (1) NDI CORE MAX×1 (2) Power Supply×2 (3) Warranty Card×1 (4) Quick Start Guide×1 2 Device Interface 1. Power switch 2. 5.5 Inch Touch Screen 3. Power Port 4. DP Port 5. 2.5G Ethernet 6. 2*40G/10G optical port SFP+...
- Page 3 Introduction NDI CORE MAX mainly solves the issue that the NDI encoder cannot be pulled by multiple back-ends at the same time. The video source is virtualized into multiple NDI channels for output by NDI CORE MAX, and more functions such as video source switching and video playlist are integrated.
- Page 4 Page 3 subnet mask and gateway. After saving, the IP address is used for WEB management and video preview, and DHCP is also supported. 4.2 Logging In Click the "QR code" icon in the upper right corner to log in to the webpage with two methods. Method 1：Enter the http://Server IP:84 in the browser to visit the webpage...
- Page 5 To ensure information security, please change your initial password first time you log in. The NDI CORE MAX login port is 84 by default. 4.3 System Settings When the device is connected to the network, you can enable or disable SSH control, and change the HTTP port and restore factory settings.
- Page 6 To ensure information security, please change your initial password at first login. The NDI CORE MAX login port is 84 by default. Port modification is available. 6 Dashboard Click “Dashboard” on the WEB page to check the system information includes network status,...
- Page 7 Page 6 Introduction Network status： eno1: NIC name on the NDI CORE MAX. 49.12G/1.37T: Total upstream traffic/downstream traffic of the current device. The maximum bandwidth of the current network Real-time traffic output of the network. Real-time traffic input of the current network.
- Page 8 Page 7 Step 1：Add NDI input sources Click "Add Input" to add the NDI sources to “NDI Input”. The source can be added by the following way. Click "public-auto discovery", all NDI sources under the same network segment of the LAN and in the “public”...
- Page 9 Page 8 Introduction NDI Channel Name: Please use different names for multiple NDI outputs. The combination of text, numbers and symbols are supported. When there are multiple control panels, the panels can use the same output channel, and if the output is not locked to any panel, it can be switched to.
- Page 10 Page 9 Introduction General: add the NDI source and NDI output channels by click "Manage" on the right side of NDI input and NDI output. NDI source status: the resolution and frame rate of the NDI sources, and the video and audio real-time encoding bit rate of the inputted sources.
- Page 11 Enter the management page of Kiloview Multiview ， find the NDI channel output in the “Discovery”. Introduction The rules for naming of the output NDI streams from NDI CORE MAX：NDI（dst-channel name）, the channel name is the name of "Add Output". 9 Others To prolong the device life,please unplug the power cable and keep it properly if you do not use it for a long time.
- Page 12 Page 11 Any In,Any Out,Anywhere For more questions, please contact us via： https://www.kiloview.com/en/support KILOVIEW Electronics CO., LTD. Tel：86-18573192787 Email：support@kiloview.com Web：www.kiloview.com/en Address: B4-106/109, Jiahua Intelligence Valley Industrial Park, 877 Huijin Road, Yuhua District, Changsha City, Hunan Province, China.
