Edco HSS14 Manual

14” hardscape saws
Hide thumbs Also See for HSS14:
Table of Contents

Advertisement

Quick Links

Download this manual
SKU #
MODEL #
24800
HSS14-5.5H
25800
HSS14-6.5H
26200
HSS14-1.5B
PARTS LIST MANUAL
MODEL HSS14

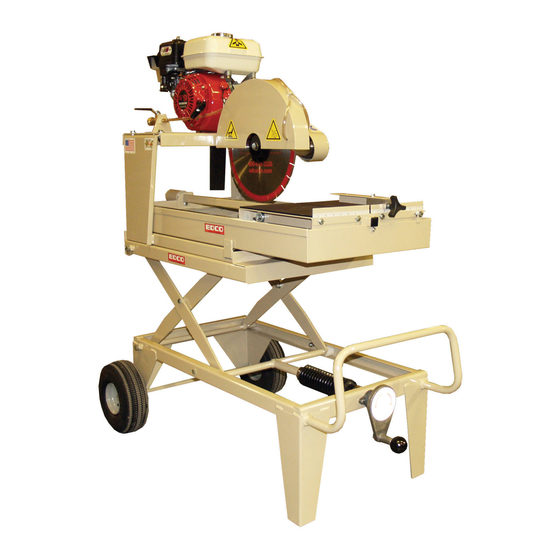

SHOWN WITH OPTIONAL PROCART
14" H
ARDSCAPE
POWER OPTION
HONDA ENGINE GX160U1-QXC9 W/ CYCLONE AIR CLEANER
HONDA ENGINE GX200U-QXC9 W/ CYCLONE AIR CLEANER
BALDOR MOTOR 1.5 HP -1PH-60Hz-115/230-14/7FLA
REVISED STARTING
SERIAL # 110910092
S
AWS
E-HSS14-PL-0911A
Printed in USA
©2011
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSS14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco HSS14

Summary of Contents for Edco HSS14

  • Page 1 E-HSS14-PL-0911A REVISED STARTING SERIAL # 110910092 PARTS LIST MANUAL MODEL HSS14 SHOWN WITH OPTIONAL PROCART 14” H ARDSCAPE SKU # MODEL # POWER OPTION 24800 HSS14-5.5H HONDA ENGINE GX160U1-QXC9 W/ CYCLONE AIR CLEANER 25800 HSS14-6.5H HONDA ENGINE GX200U-QXC9 W/ CYCLONE AIR CLEANER 26200 HSS14-1.5B...
  • Page 2 Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,...

  • Page 3: Safety Messages And General Instructions

    E-HSS14-PL-0911A READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord.

  • Page 4: Table Of Contents

    E-HSS14-PL-0911A PARTS LIST MANUAL MODEL HSS14 14” HARDSCAPE SAW Section Page Number Safety Messages and General Instructions ......2 How To Order Replacement Parts .

  • Page 5: Illustration 1: Main Grouping

    E-HSS14-PL-0911A ILLUSTRATION 1 : MAIN GROUPING Printed in USA ©2011 Page 4...
  • Page 6 E-HSS14-PL-0911A PARTS LISTING - ILLUSTRATION 1: MAIN GROUPING ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 42301 MAIN FRAME 42310 BRACKET, WATER VALVE, HSS-14 42148 PLUG, SQ. TUBE 1-1/2 X 11 GA., BLK 10053 SCREW, CAP 5/16-18 X 3/4...

  • Page 7: Illustration 2: Rolling Table Assembly

    E-HSS14-PL-0911A ILLUSTRATION 2: ROLLING TABLE ASSEMBLY ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 10602 WASHER, FLAT 1/4 SAE 42315 TABLE COMPLETE, ROLLING, HSS-14 (INCLUDES ITEMS 2 THRU 25) 10861 NUT, KEPS 1/4-20 10031 SCREW, CAP 1/4-20 X 1 42226 TABLE, ROLLING, GMS-10 &...

  • Page 8: Illustration 3: Arbor Assembly

    E-HSS14-PL-0911A ILLUSTRATION 3: ARBOR ASSEMBLY ITEM # PART # DESCRIPTION QTY. 40056A ARBOR ASSY. W/ 2.75” 2GR.3V SHEAVE 40056 ARBOR ASSY. W/ 3” 2GR.A SHEAVE 10321 SCREW, CAP 1/2-20 X 1-1/4 40023 ARBOR BLADE CAP 4”, MASONRY SAW 40022 ARBOR BACKING PLATE 4”, MASONRY SAW 40018 BEARING, RADIAL BALL 20X47X20.6MM...

  • Page 9: Illustration 4: Engine Grouping

    ILLUSTRATION 4: ENGINE GROUPING E-HSS14-PL-0911A ITEM # PART # DESCRIPTION QTY. 40387 ENGINE, HONDA GX160U1-QXC9 CYC.A.C. 15048 ENGINE, HONDA GX200U-QXC9 CYC.A.C. 11541 BARB, PUSH-ON 3/8 HOSE X10MM X 1.25 56116 HOSE, PUSH-ON 3/8”ID X 3”L 11544 BARB, PUSH-ON 3/8 HOSE X 1/4FPT...

  • Page 10: Illustration 5: Motor Grouping

    E-HSS14-PL-0911A ILLUSTRATION 5: MOTOR GROUPING ITEM # PART # DESCRIPTION QTY. 16061 MOTOR, BALDOR 1.5HP-1P 60HZ 3450RPM 115/230V SPEC. NO. 35V801R760G1 REPLACEMENT PARTS: 16164 CAPACITOR, RUN, BALDOR OC3040F09SP 16163 RESET BUTTON, BALDOR TPCRT40CA 40051 CAPACITOR, START,BALDOR EC1645A06SP 16510 SWITCH, TOGGLE DPST 20A SPAD 42237 MOUNT BRKT., MOTOR...

  • Page 11: Illustration 6: Optional Procart

    E-HSS14-PL-0911A ILLUSTRATION 6: OPTIONAL PROCART PART# 24750 ADJUSTABLE SCISSOR STYLE CART REFER TO THE PROCART PARTS LIST MANUAL FOR THE PARTS BREAKDOWN INFORMATION Printed in USA ©2011 Page 10...

  • Page 12: Illustration 7: Optional Folding Stand

    E-HSS14-PL-0911A ILLUSTRATION 7: OPTIONAL FOLDING STAND PART# 24150 Printed in USA ©2011 Page 11...

  • Page 13: Illustration 8: Optional Drain Assembly

    E-HSS14-PL-0911A ILLUSTRATION 8: OPTIONAL DRAIN ASSEMBLY PART# 42250 INCLUDES ITEMS SHOWN BELOW USE IN PLACE OF DRAIN PLUG (ILLUSTRATION 1 - ITEM 5) ITEM # PART # DESCRIPTION QTY. 42251 FITTING, DRAIN 3/4NH X 1/2FPT (BRASS) (INCLUDES THIN JAM NUT) 10444 WASHER, ALUM.

  • Page 14: Illustration 9: Optional 115V Water Pump Assembly

    E-HSS14-PL-0911A ILLUSTRATION 9: OPTIONAL 115V WATER PUMP KIT PART# 42320 ELECTRIC MODEL ONLY Connect the white plastic adapter fitting to the garden hose fitting that’s connected to the ball valve located on the motor deck. Submerse the pump in water. Note: The pump will not work in the pan because it interferes with the rolling table.

  • Page 15: Wiring Diagram For Baldor Motor

    E-HSS14-PL-0911A Printed in USA ©2011 Page 14...

  • Page 16: Notes
