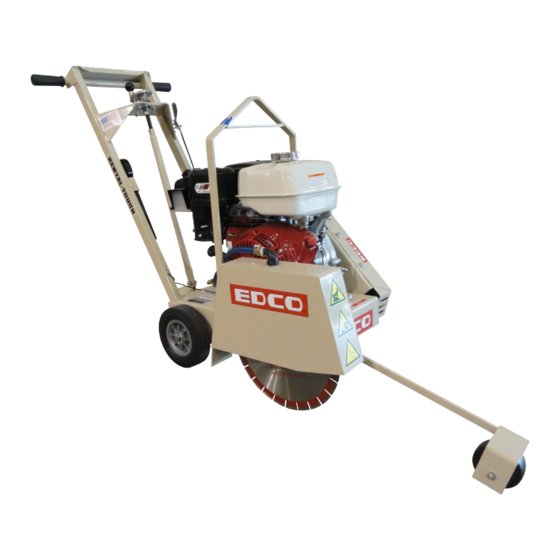

Edco SK14 Part List Manual
14” downcut - concrete and asphalt walk behind saws
Hide thumbs
Also See for SK14:
- Operator's instruction manual (20 pages) ,
- Operator's instruction manual (19 pages)
Table of Contents
Advertisement
14" D
SKU #
MODEL #
45400D
SK14-9H
45600D
SK14-11H
48100D
SK14-13H
PARTS LIST MANUAL
MODEL SK14
- C
OWNCUT
ONCRETE AND
W
B
ALK
EHIND
POWER OPTION
HONDA GASOLINE ENGINE MODEL GX270
HONDA GASOLINE ENGINE MODEL GX340
HONDA GASOLINE ENGINE MODEL GX390
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
A
SPHALT
S
AWS
Phone (301) 663-1600 • 1-800-638-3326
Fax (301) 663-1607 • 1-800-447-3326
Website: www.edcoinc.com
Email: sales@edcoinc.com
E-SK14-PL-1012
REVISED STARTING
SERIAL # 121010002
Printed in USA
©2012
JWA
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Edco SK14
Summary of Contents for Edco SK14
- Page 1 E-SK14-PL-1012 REVISED STARTING SERIAL # 121010002 PARTS LIST MANUAL MODEL SK14 14” D OWNCUT ONCRETE AND SPHALT EHIND SKU # MODEL # POWER OPTION 45400D SK14-9H HONDA GASOLINE ENGINE MODEL GX270 45600D SK14-11H HONDA GASOLINE ENGINE MODEL GX340 48100D SK14-13H...
-
Page 2: Safety Messages And General Instructions
E-SK14-PL-1012 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord. -
Page 3: Table Of Contents
HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ... -
Page 4: Illustration 1: Main Grouping
E-SK14-PL-1012 ILLUSTRATION 1: MAIN GROUPING 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 4 Email: sales@edcoinc.com... - Page 5 E-SK14-PL-1012 PARTS LISTING - ILLUSTRATION 1: MAIN GROUPING ITEM # PART # DESCRIPTION QTY. 52070 MAIN FRAME, SK-14 52061 FORK, SK-14 52010 SPACER, FRONT WHEEL 3/4ID X 15/16 52001 WHEEL 4 X 1-1/2 X 3/4”BRG. ALUM/RUB 10009 WASHER, FLAT 3/4 SAE ZINC 11597 WASHER .755”ID X 1.25”OD X .060”THK (USE AS NEEDED)
-
Page 6: Illustration 2: Arbor & Blade Guard Grouping
E-SK14-PL-1012 ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 6 Email: sales@edcoinc.com... - Page 7 E-SK14-PL-1012 PARTS LISTING - ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING ITEM # PART # DESCRIPTION QTY. 69050A ARBOR ASSY. COMPLETE (INCLUDES ITEMS 2 THRU 10) 69050 ARBOR SHAFT 19-1/4”L, SK-14 62022 BEARING, BALL 1” 2-HOLE FLANGE 10961 FITTING, GREASE 1/4-28 X 90°...
-
Page 8: Illustration 3: Water Tank Assembly (Optional)
E-SK14-PL-1012 ILLUSTRATION 3: WATER TANK ASSEMBLY OPTIONAL PART # 52075 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 8 Email: sales@edcoinc.com... - Page 9 E-SK14-PL-1012 PARTS LISTING - ILLUSTRATION 3: WATER TANK ASSEMBLY OPTIONAL - PART # 52075 ITEM # PART # DESCRIPTION QTY. 52074 MOUNT ONLY, WATER TANK, SK-14 10053 SCREW, CAP 5/16-18 X 3/4 10807 NUT, HEX LOCK 5/16-18 ZINC 52031 DRUM, PLASTIC 5 GALLON, 3/4NPT CAP 52035 TIE-DOWN STRAP, MOLDED RUBBER 24”...
-
Page 10: Illustration 4: Engine & Belt Drive Grouping
E-SK14-PL-1012 ILLUSTRATION 4: ENGINE & BELT DRIVE GROUPING PARTS LISTING ITEM # PART # DESCRIPTION QTY. ENGINE WITH CYCLONE AIR CLEANER ... 15027 HONDA GX270UT2-QXC9 79045 HONDA GX340UT2-QXC9 15029 HONDA GX390UT2-QXC9 PARTS LISTING CONTINUED ON THE NEXT PAGE 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 •... - Page 11 E-SK14-PL-1012 PARTS LISTING CONTINUED - ILLUSTRATION 4: ENGINE & BELT DRIVE GROUPING ITEM # PART # DESCRIPTION QTY. 40388 CABLE, THROTTLE, LEVER-TYPE 24” 10877 SCREW, CAP STSHW 10-24 X 1/2 10831 WASHER, LOCK, INT. TOOTH #10 10982 TIE, CABLE, BLACK NYLON 11-1/4”...
-
Page 12: Wiring Diagram For Honda Engine
E-SK14-PL-1012 WIRING DIAGRAM FOR HONDA ENGINE 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 12 Email: sales@edcoinc.com... -
Page 13: Decals
E-SK14-PL-1012 DECALS exceeds 85dBA CHECK OIL DAILY edcoinc.com 1-800-638-3326 edcoinc.com 1-800-638-3326 CALIFORNIA PROPOSITION 65 WARNING G R E A S E B E A R I N G S The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. -
Page 14: Notes
E-SK14-PL-1012 NOTES Record here any repairs or changes made to the Equipment 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 14 Email: sales@edcoinc.com... - Page 15 E-SK14-PL-1012 THIS PAGE IS LEFT BLANK INTENSIONALLY 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2012 Website: www.edcoinc.com Page 15 Email: sales@edcoinc.com...
- Page 16 *Seller reserves the right to hold shipments against past due accounts. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been *Seller reserves the right to alter payment terms.
