Edco GMS-10 Operator's Instruction Manual

10” gasoline powered masonry saw
Hide thumbs

Advertisement

Quick Links

Download this manual
E-GMS10-I-03/00
Operators Instruction Manual
GMS-10
NOTE: Shown with optional cart
10" Gasoline Powered Masonry Saw
with Controlled Dust Operation
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
© 2000
Page 1
Website: www.edcoinc.com • Email: sales@edcoinc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the GMS-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco GMS-10

Summary of Contents for Edco GMS-10

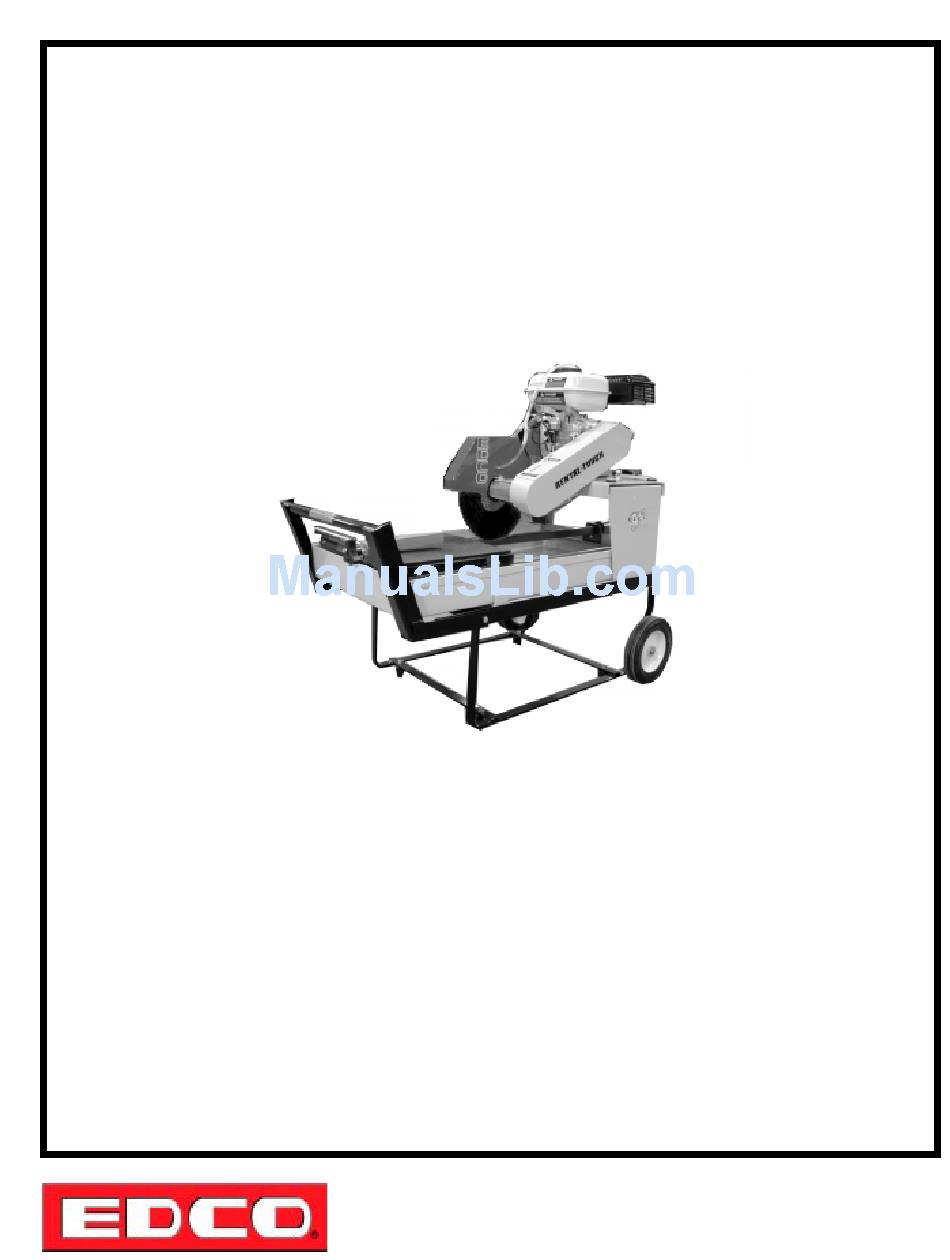

  • Page 1 E-GMS10-I-03/00 Operators Instruction Manual GMS-10 NOTE: Shown with optional cart 10” Gasoline Powered Masonry Saw with Controlled Dust Operation 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©...
  • Page 2 Failure to do so could result in dismemberment or death. • Check all electrical cables - be sure connections are tight and • Do not modify the machine. Use only genuine EDCO parts and cable is continuous and in good condition. Be sure cable is cor- accessories.

  • Page 3: Table Of Contents

    Figure 1 HOW TO ORDER REPAIR PARTS SPECIFICATIONS for GMS-10 To insure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equipment. 54kg 119 lb Weight When ordering parts, please specify the MODEL and SERIAL NUM- BER of the machine as given on the NAMEPLATE.

  • Page 4: Safety Guidelines

    Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the GMS-10 is in use. During normal operation, sound pressure levels exceed 92dBA. Use only ANSI approved safety glasses to help prevent eye injury.

  • Page 5: Operating Instructions

    E-GMS10-I-03/00 Operating Instructions Diagrams shown with Honda Cyclone Dual-Filter Element Engine as an example. Consult the Engine Manufacturer’sOwner’s Manual for information on specific models. N. Rolling Table A. Spark Plug Lead O. Diamond Blade B. Air Filter P. Blade Guard C.
  • Page 6 If dry cutting, attach the vacuum to the end of the dust channel. (Figure 7) Note: While the GMS-10 was designed to be used with a standard shop vac, EDCO recommends using a heavy duty industrial vacuum such as the VAC-100. The VAC-100 has the advantage of a Self-Purging System to help keep concrete dust from building up on the filter and a larger filter area to maintain performance during use.

  • Page 7: Starting The Engine

    E-GMS10-I-03/00 Starting the Engine: • Be sure blade is clear of item to be cut. • Determine that the recoil starter assembly turns freely, starter rope pulls easily, and the rope retracts properly. • Follow the instructions supplied in the engine manufacturer’s Owner’s Manual for starting engine. •...

  • Page 8: Maintenance

    (See page 11) The GMS-10 was designed to be used with diamond saw blades only. It is a “fixed head machine”, therefore it is important to use blades that will not wear down. Fiber blades will wear down and the cut will not go all the way through the work piece.
  • Page 9 E-GMS10-I-03/00 Belt Adjustment and Replacement: • Periodically check to be sure the belts are undamaged and that they are at the proper tension. Slipping belts will overheat causing the cutting speed to be limited and will shorten the life of the belts. Over-tensioned belts will shorten the life of the belts and bearings.
  • Page 10 E-GMS10-I-03/00 Change Engine Oil: • Check Engine Oil before each operation. Open the filler cap and look at the dip stick. (Figure 16) Oil should be clearly visable both on the stick and in the cavity and should look fairly clean. Running the machine on dirty oil or when the oil is low will result in damage to the equipment.

  • Page 11: Maintenance Schedule

    E-GMS10-I-03/00 Repairs are to be done Read and follow instructions by authorized EDCO in the Engine Manufacturer’s Dealers only. Owner’s Manual. Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual.

  • Page 12: Limited Equipment Warranty

    EDCO will not in any event be liable to the user, any successors in interest or any beneficiary or assignee This warranty, does not apply to failure occurring as a...
