Edco TMS-10 Operator's Instruction Manual
  1. Manuals
  2. Brands
  3. Edco Manuals
  4. Saw
  5. TMS-10
  6. Operator's instruction manual

Edco TMS-10 Operator's Instruction Manual

10” electric powered masonry saw
Hide thumbs Also See for TMS-10:
Table of Contents

Advertisement

Quick Links

E-TMS10-I-0517
EQUIPMENT DEVELOPMENT CO., INC.
Operator's Instruction Manual
TMS-10
10" Electric Powered Masonry Saw

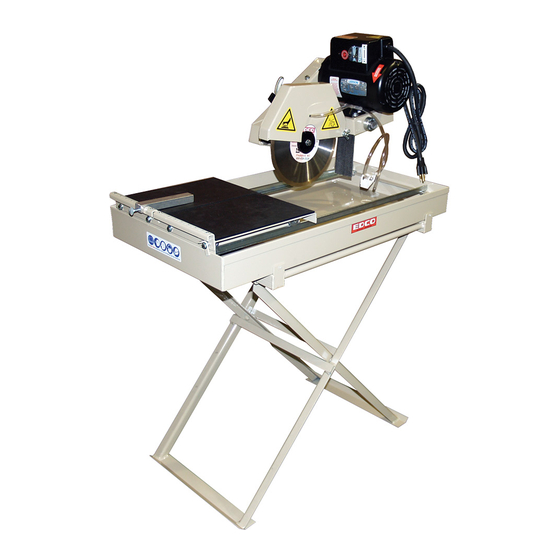

Shown with optional stand
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 301-638-3326 • 301-663-1600
Fax: 800-447-3326 • 301-663-1607
edcoinc.com • sales@edcoinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMS-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco TMS-10

Summary of Contents for Edco TMS-10

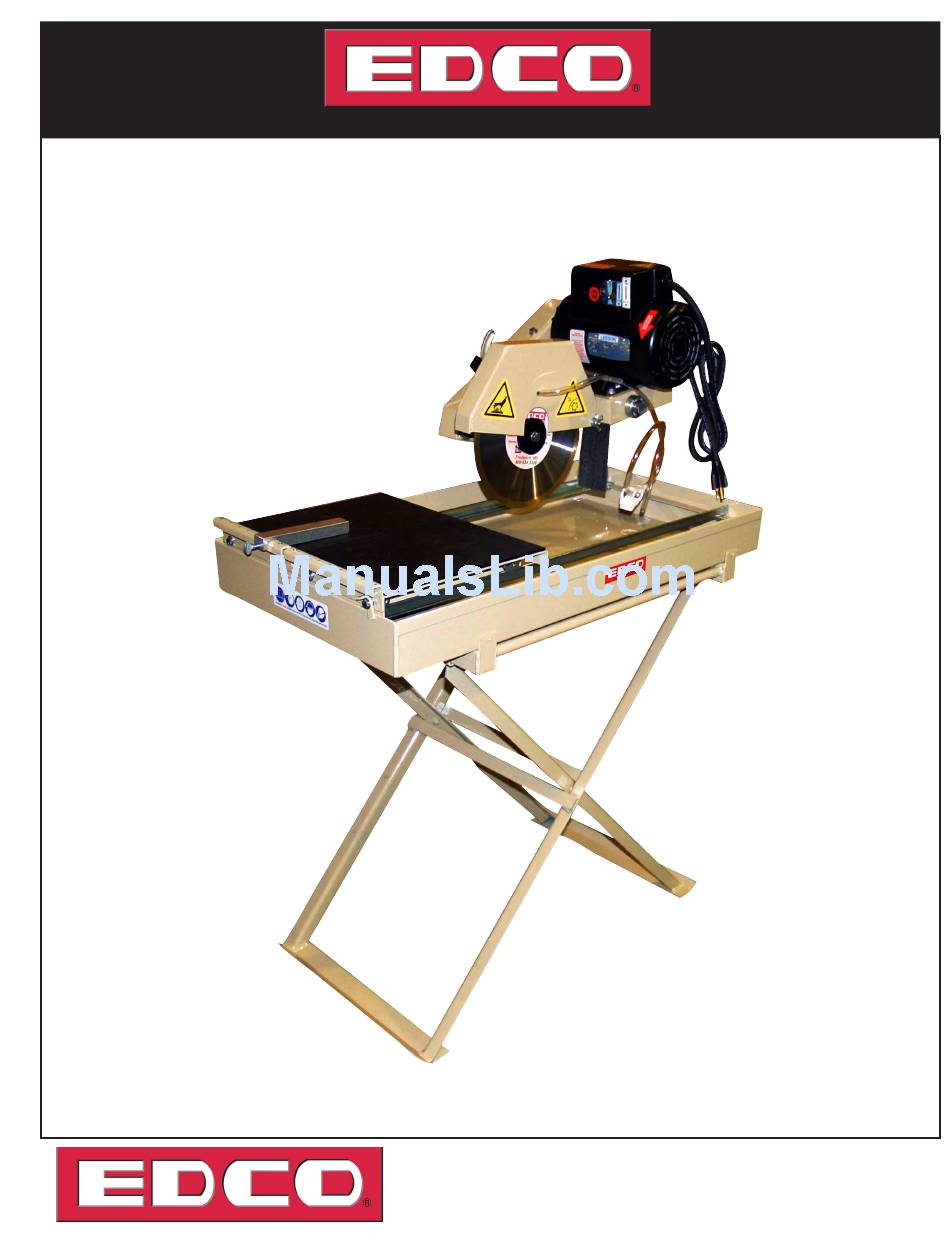

  • Page 1 E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Operator’s Instruction Manual TMS-10 10” Electric Powered Masonry Saw Shown with optional stand 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone: 301-638-3326 • 301-663-1600 Fax: 800-447-3326 • 301-663-1607 edcoinc.com • sales@edcoinc.com...

  • Page 2: Safety

    READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord.

  • Page 3: Table Of Contents

    22 lbs 10 kg 29 1/4” 75cm 20 3/4” Note: Dimensions and Specifications for the TMS-10 are approximate and subject to change. Figure 1 HOW TO ORDER REPAIR PARTS Overall Dimensions To insure product safety and reliability, always use genuine EDCO without optional stand replacement parts when making repairs to the equipment.

  • Page 4: Safety Guidelines

    Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the TMS-10 is in use. During normal opera- tion, sound pressure levels exceed 85dBA. Use only ANSI approved safety glasses to help prevent eye injury.

  • Page 5: Operating Instructions

    E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Operating Instructions Consult the Motor Manufacturer’s Owner’s Manual for information on specific models. A. Belt Guard B. Electric Motor C. On/Off Switch D. Blade Guard E. Diamond Blade F. Water Tray G. Rolling Table Wheels H.
  • Page 6 E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Operation Turn motor switch to on position -- listen for motor to reach operating speed. DO NOT use machine if motor hums or does not reach operating speed within a few seconds. Motor hum is a malfunction that may be caused by: 1.

  • Page 7: Before Starting

    E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Before Starting: • Read and understand the instructions supplied by the motor manufacturer. • Familiarize yourself with all saw controls. (Figures 2-4) • Visually inspect the entire machine for damage or wear. Remove excess dirt or debris. Check that all nuts, bolts and screws are tightened.

  • Page 8: Starting The Saw

    E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Starting the Saw: • Be sure blade is clear of item to be cut. • Be sure cutting head is secured in cutting position. • Turn motor power switch to on position and observe that motor comes to full speed before continuing. Cutting: •...

  • Page 9: Maintenance

    Refer to the Rx for Diamond Blades pamphlet provided with your blade for more detailed information on inspecting blades. • The TMS-10 was designed to be used with diamond saw blades only. Push the rolling table all the way to the back or front of the machine to allow full blade clearance.
  • Page 10 E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Belt Adjustment and Replacement: • Periodically check to be sure the belt is undamaged and that it is the proper tension. Slipping belts will overheat causing the cutting speed to be limited and will shorten the life of the belts. Over-tensioned belts will shorten the life of the belts and bearings.

  • Page 11: Maintenance Schedule

    E-TMS10-I-0517 EQUIPMENT DEVELOPMENT CO., INC. Repairs are to be done Read and follow instructions by authorized EDCO in the Engine Manufacturer’s Dealers only. Owner’s Manual. Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual.

  • Page 12: Limited Equipment Warranty

    *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3.

Table of Contents
