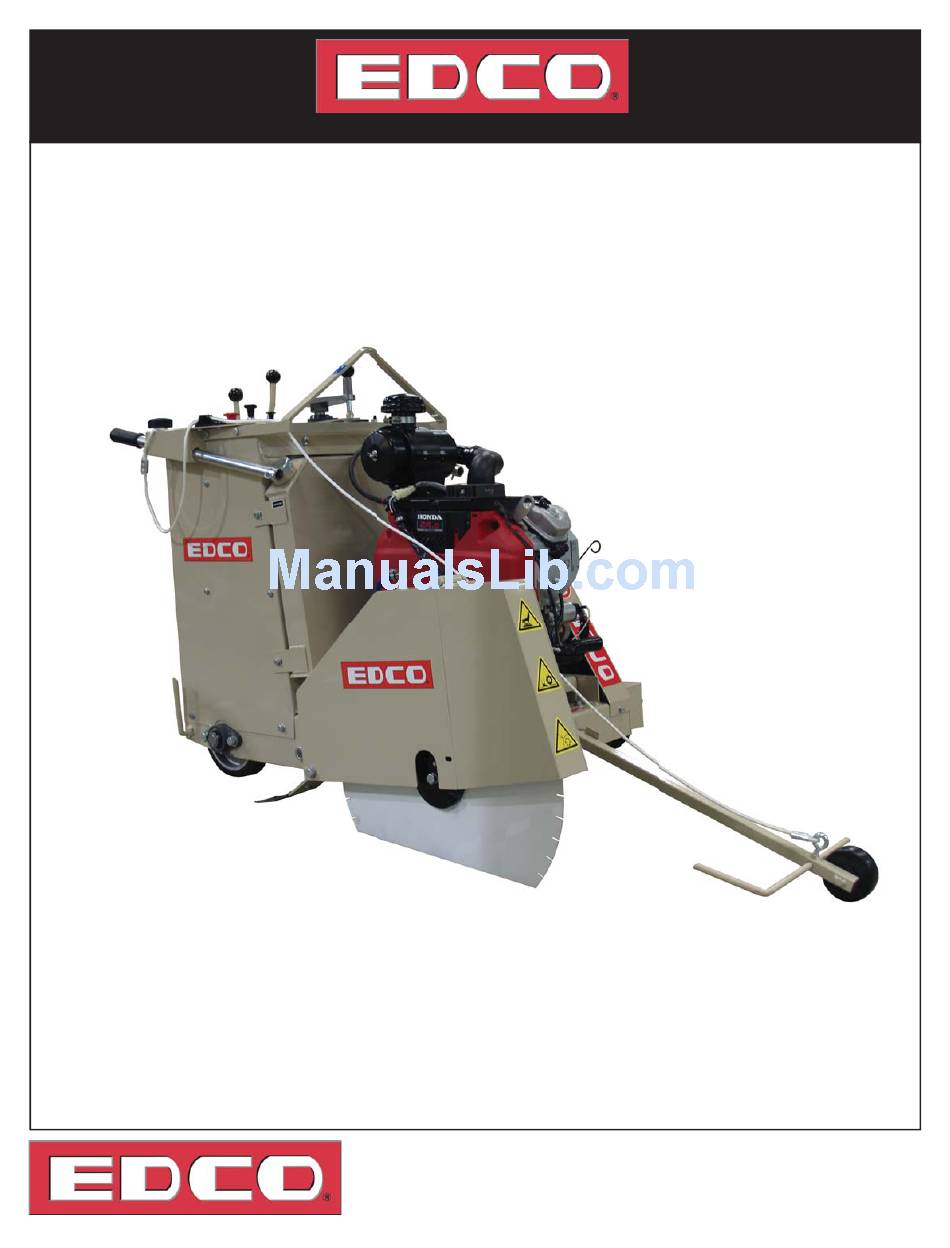

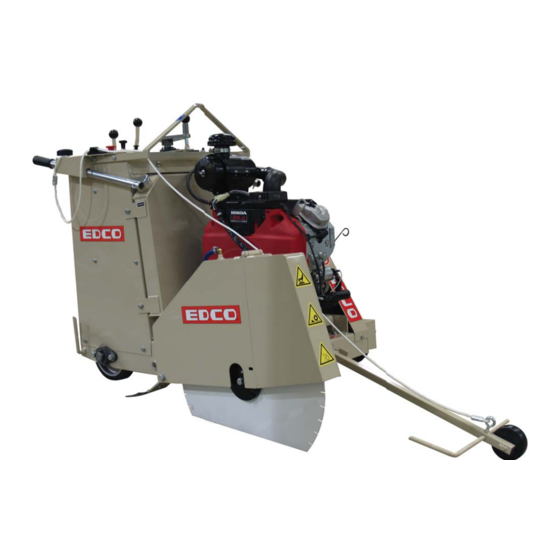

  • Page 1 SS24-I-0215 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator’s Instruction Manual SS-24 SELF PROPELLED CONCRETE/ASPHALT SAW 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone: 301-638-3326 • 301-663-1600 Fax: 800-447-3326 • 301-663-1607 EQUIPMENT DEVELOPMENT CO., INC. edcoinc.com • sales@edcoinc.com...
  • Page 2 SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord.
  • Page 3: Table Of Contents

    Specifi cations & dimensions are for HOW TO ORDER REPAIR PARTS reference only and subject to change. To insure product safety and reliability, always use genu- ine EDCO replacement parts when making repairs to the Model SS-24 equipment. A (Handles Extended) 69”...
  • Page 4: Safety Guidelines

    • EDCO SP equipment are now equipped with an EVAP system to trap and dispose of fuel vapors before they can escape into the atmosphere. This EVAP system contains a charcoal canister plumbed into the fuel system that transfers vapors back to the engine to be burned.
  • Page 5: Operating Instructions

    9 - Speed Control: Controls saw speed in FWD and REV. This instructions in the Engine Owner’s Manual. EDCO saw is equipped with a Hydrostatic Transmission, which permits infi nite speed control. (Actual cutting speed is limit- 3 - Ignition: (Optional location depending on engine model) Turn ed by the saw blade and cutting conditions).
  • Page 6: Starting The Engine

    EPA/OSHA regulations. Carbon Canister: • The SS-24 is equipped with a charcoal canister to create a sealed fuel system and re-route any vapors from the tank back to the airbox on the engine for burning. This unit also has a tethered fuel cap with viton gasket and evaporation resistant fuel lines.
  • Page 7 Note: If while cutting, the front wheels start to lift, reduce forward speed. For positioning the saw, the maximun forward speed is 200ft per minute. For safety reasons when in reverse the SS-24 is designed to move at a slow walking pace. Do not force it to go faster.
  • Page 8: Transporting The Saw

    SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. To Stop Cutting: • Move Speed Control lever to the NEUTRAL position. • Turn Depth Control Handwheel clockwise until blade is clear of slab. • Push Clutch Lever forward, away from operator to the FREE WHEEL position; this will stop all forward motion. (Page 7, Figure 8) •...
  • Page 9: Maintenance

    SS24-I-0215 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. The following maintenance instructions are brief explanations of some of the items suggested in the Maintenance Schedule chart on page 15. These instructions are not replacements for the Engine Manufacturer’s Maintenance Instructions. Maintenance Should the Engine Stop While Operating: •...
  • Page 10: Changing Blades

    For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can break and cause serious personal injury to operator and/or bystanders. If abrasive blades are used by choice, only use those which are marked as reinforced abrasive blades.
  • Page 11 SS24-I-0215 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. (Left side Important! not shown) Arbor Shaft Bearings MUST be lubricated EVERY FOUR HOURS! Grease Bearings - (7 Total) Drive Axle Bearings (2) Arbor Shaft Bearings (2) must be greased every 4 hours. All other Bearings (5) must be greased every 40 hours. Those include: Rear Wheel Bearings (2), Drive Axle Bearings (2), and the Depth Control Handle...
  • Page 12 SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. Check Engine Oil Before Each Operation - Check Engine Manufacturer’s Owner’s Manual for specifi c instructions. Change Oil & Filter Every 50 Hours of Operation (Sooner if Necessary). Check Drive Chains Before Operation Lubricate Weekly Remove the maintenance door at the rear of the machine.
  • Page 13 SS24-I-0215 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Changing To Left-Side Cutting: • Disconnect water hose from the blade guard. • • Using SAE 9/16” and 3/4” wren Using SAE 9/16” and 3/4” wrenches, remove the bolts on the blade guard. • On the other side of the machine, remove the arbor guard.
  • Page 14 SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. Inspect and Replace Air Filter Element If Dirty (Shown with Honda Engine) Replace when necessary with factory parts. Refer to the Engine Manufacturer’s Owner’s Manual for specifi c requirements. Air Filter Transmission Transmission Fluid Inspect Transmission Fluid Level Every 50 hours of operation - fi...
  • Page 15: Maintenance Schedule

    E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Maintenance Schedule Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Follow Engine Man- ufacturer’s Mainte- nance Schedule Visual Inspection of Entire Machine Inspect Blade...
  • Page 16: Ss24-I

    SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ This page intentionally left blank. Page 16 800-638-3326 • edcoinc.com • sales@edcoinc.com...
  • Page 17: E-Spts-I

    SS24-I-0215 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ This page intentionally left blank. Page 17 800-638-3326 • edcoinc.com • sales@edcoinc.com...
  • Page 18: Equipment

    SS24-I-0215 EQUIPMENT DEVELOPMENT CO., INC. SMI Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.
  • Page 19: Equipment

    *Seller reserves the right to hold shipments against past due accounts. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been *Seller reserves the right to alter payment terms.
  • Page 20: Equipment

    E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SURFACE PREPARATION, RESTORATION, PROFESSIONAL SAWING EQUIPMENT & HAND HELD TOOLS 100 THOMAS JOHNSON DRIVE, FREDERICK, MD 21702 PHONE: 800-638-3326 OR 301-663-1600 Fax: 800-447-3326 or 301-663-1607 Email: sales@edcoinc.com Website: edcoinc.com Patents Pending & Issued Created 2 2015 Printed in USA ©2015 800-638-3326 •...
