HD-KL14-0124
Tool Rental Center
MANUAL
KL-14

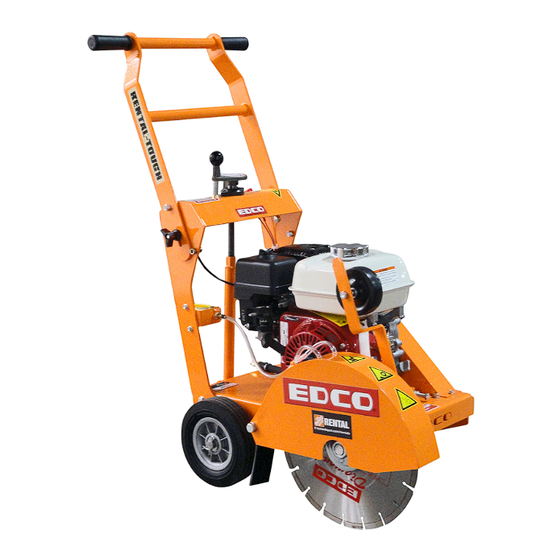

Walk Behind Concrete Saw 14"
SKU # 39200HD
Revised Starting Serial # 240110135
Read and understand this Operator's Instruction Manual,
and the Engine Manufacturer's Owner's Manual
before operating this equipment.
Death of serious injury can result if this machine is used improperly.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Edco 39200HD
Summary of Contents for Edco 39200HD
- Page 1 HD-KL14-0124 Tool Rental Center MANUAL KL-14 Walk Behind Concrete Saw 14” SKU # 39200HD Revised Starting Serial # 240110135 Read and understand this Operator’s Instruction Manual, and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death of serious injury can result if this machine is used improperly.
-
Page 2: Safety Information
HD-KL14-0124 SAFETY INFORMATION SAFETY MESSAGES ELECTRICAL POWERED EQUIPMENT CONTINUED • Safety Instructions are proceeded by a graphic alert symbol of DANGER, • Do not disconnect power by pulling cord. To disconnect, grasp the WARNING, or CAUTION. plug, not the cord. •... -
Page 3: Table Of Contents
HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ... -
Page 4: Machine Safety Symbol Label Reference
HD-KL14-0124 MACHINE SAFETY SYMBOL LABEL REFERENCE This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result. - Page 5 HD-KL14-0124 MACHINE SAFETY SYMBOL LABEL REFERENCE This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment.
-
Page 6: Warning: California Proposition 65
California. While the exposure from EDCO products may be negligible or well within the “no significant risk” range, out of an abundance of caution, EDCO has elected to provide these Proposition 65 warnings. -
Page 7: Dust And Crystalline Silica Warning
HD-KL14-0124 DUST AND CRYSTALLINE SILICA WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources... -
Page 8: Safety Guidelines
HD-KL14-0124 Read and understand all operating instructions before operating this equipment. Death or serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the grinder is in use. During normal operation, sound pressure levels may exceed 85dBA. -
Page 9: Operation Controls
HD-KL14-0124 OPERATING CONTROLS MODEL KL-14 / 14” WALK BEHIND SAW Collapsable Handle Handle Lock Choke Water Valve Rope Pull Guide Bar Depth Control On/Off Switch Throttle Please Note: Controls shown are for the model indicated. The location of these controls may vary on the different models. Due to improvements and changes in the equipment, the illustration shown may be different from the actual machine. -
Page 10: Operating Instructions
HD-KL14-0124 Operating Instructions IMPORTANT NOTES • Read and understand all operating instructions before operating this equipment. Death or serious injury can result if this machine is used improperly. • Concrete saws are designed to be used to cut flat horizontal concrete or asphalt slabs using diamond saw blades. - Page 11 HD-KL14-0124 Operating Instructions • FOR WET CUTTING: Attach the water supply. A flow rate of approximately 2 gallons per minute (minimum) is required. Attach the water hose to the coolant valve. Use the valve to control the flow of water. FOR DRY CUTTING: Provide a respirator and dust control system.
-
Page 12: Changing Blades
• Be sure the arbor shaft, backing plate, and blade cap are clean and in good condition. Make sure the threads are clean and undamaged. If any damage is detected, consult your EDCO dealer (or the EDCO factory). •... -
Page 13: Maintenance Instructions
Do not use warped, twisted, or out-of-balance blades. Unbalanced blades will wear excessively, vibrate and damage both arbor shaft and bearings. Do not use a blade without a drive pinhole (Figure 7) . For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can •... -
Page 14: Lubrication Points
HD-KL14-0124 Lubrication Points Grease Bearings Every 4 Hours of Use NOTE: Wipe grease fittings clean before servicing. Grease Fittings Page 14... -
Page 15: Maintenance Schedule
HD-KL14-0124 Maintenance Schedule Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Follow Engine Manufacturer’s Maintenance Schedule Visual Inspection of Entire Machine Check Engine Oil Change Engine Oil* (Refer to Engine manual) -
Page 16: Parts Illustration 1: Main Grouping
HD-KL14-0124 ILLUSTRATION 1: MAIN GROUPING ILLUSTRATION 1: MAIN GROUPING Page 16... - Page 17 HD-KL14-0124 PARTS LISTING - ILLUSTRATION 1: MAIN GROUPING ITEM # PART # DESCRIPTION QTY. 54001HD MAIN FRAME, KL-14 54010 AXLE SHAFT, 3/4DIA. X 19, KL14 10009 WASHER, FLAT 3/4 SAE ZINC 79013 WHEEL, 8 X 2-1/2 X 3/4”BRG.POLY HUB 11597 WASHER .755”ID X 1.25”OD X .060”THK 10306 PIN, COTTER 3/16 X 1-1/2...
-
Page 18: Parts Illustration 2: Arbor & Blade Guard Grouping
HD-KL14-0124 ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING Page 18... - Page 19 HD-KL14-0124 PARTS LISTING - ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING ITEM # PART # DESCRIPTION QTY. 54011A ARBOR ASSY. COMPLETE, KL-14 (ITEMS 2 -10) 54011 ARBOR SHAFT, KL-14 10211 PIN, ROLL 5/16 X 2 56026 ARBOR BACKING PLATE 4” 56025 ARBOR BLADE CAP 4”OD W/1”HOLE 55009...
-
Page 20: Parts Illustration 3: Engine & Belt Drive Grouping
HD-KL14-0124 ILLUSTRATION 3: ENGINE & BELT DRIVE GROUPING ILLUSTRATION 3: ENGINE & BELT DRIVE GROUPING Page 20... - Page 21 HD-KL14-0124 PARTS LISTING - ILLUSTRATION 3: ENGINE & BELT DRIVE GROUPING ITEM # PART # DESCRIPTION QTY. 15054 ENGINE, HONDA GX200UT2QX2 15303 MUFFLER CAP, HONDA #18331-883-810 11872 SCREW, MACHINE M4-0.7 X 6MM PHP 10817 BOLT, CARRIAGE 5/16-18 X 1-1/2 10918 BOLT, CARRIAGE 5/16-18 X 1-3/4 10213 WASHER, FLAT 5/16 SAE ZINC...
-
Page 22: Wiring Diagram
HD-KL14-0124 WIRING DIAGRAM WIRING DIAGRAM Page 22... -
Page 23: Decals
HD-KL14-0124 DECALS DECALS P/N 91379 P/N 91346 HOME DEPOT Page 23... - Page 24 HD-KL14-0124 THIS PAGE LEFT BLANK INTENTIONALLY Page 24...
-
Page 25: Notes
HD-KL14-0124 NOTES NOTES Record here any repairs or changes made to the Equipment Page 25... - Page 26 HD-KL14-0124 THIS PAGE LEFT BLANK INTENTIONALLY Page 26...
-
Page 27: Limited Equipment Warranty Of Sale
*Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3. -
Page 28: Stop - Before Using This Product
EDCO product group. The information in these tracks help businesses be successful with those products. EDCO is always updating online training / information so you always have the most recent content. Also see Operator’s Safety & Limited Warranty Manual Equipment Development Co., Inc.
