Operator's Instruction Manual
Masonry Saws

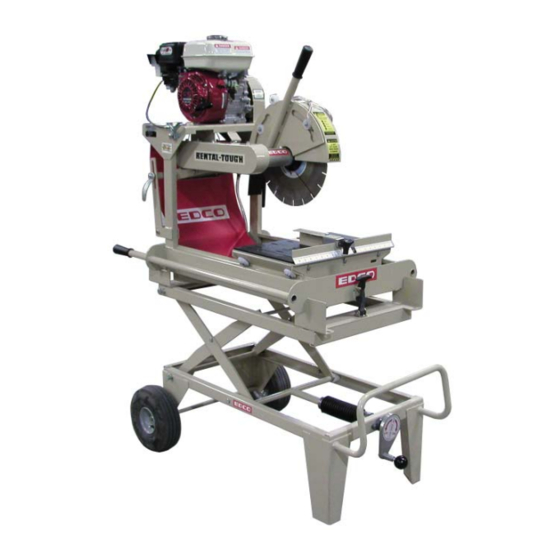

BB14G
BB14E
Shown with Optional Pro Cart
Shown with Optional Stand
GASOLINE AND ELECTRIC 14" MASONRY SAWS
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 301-638-3326 • 301-663-1600
Fax: 800-447-3326 • 301-663-1607
EQUIPMENT DEVELOPMENT CO., INC.
edcoinc.com • sales@edcoinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB14G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edco BB14G

Summary of Contents for Edco BB14G

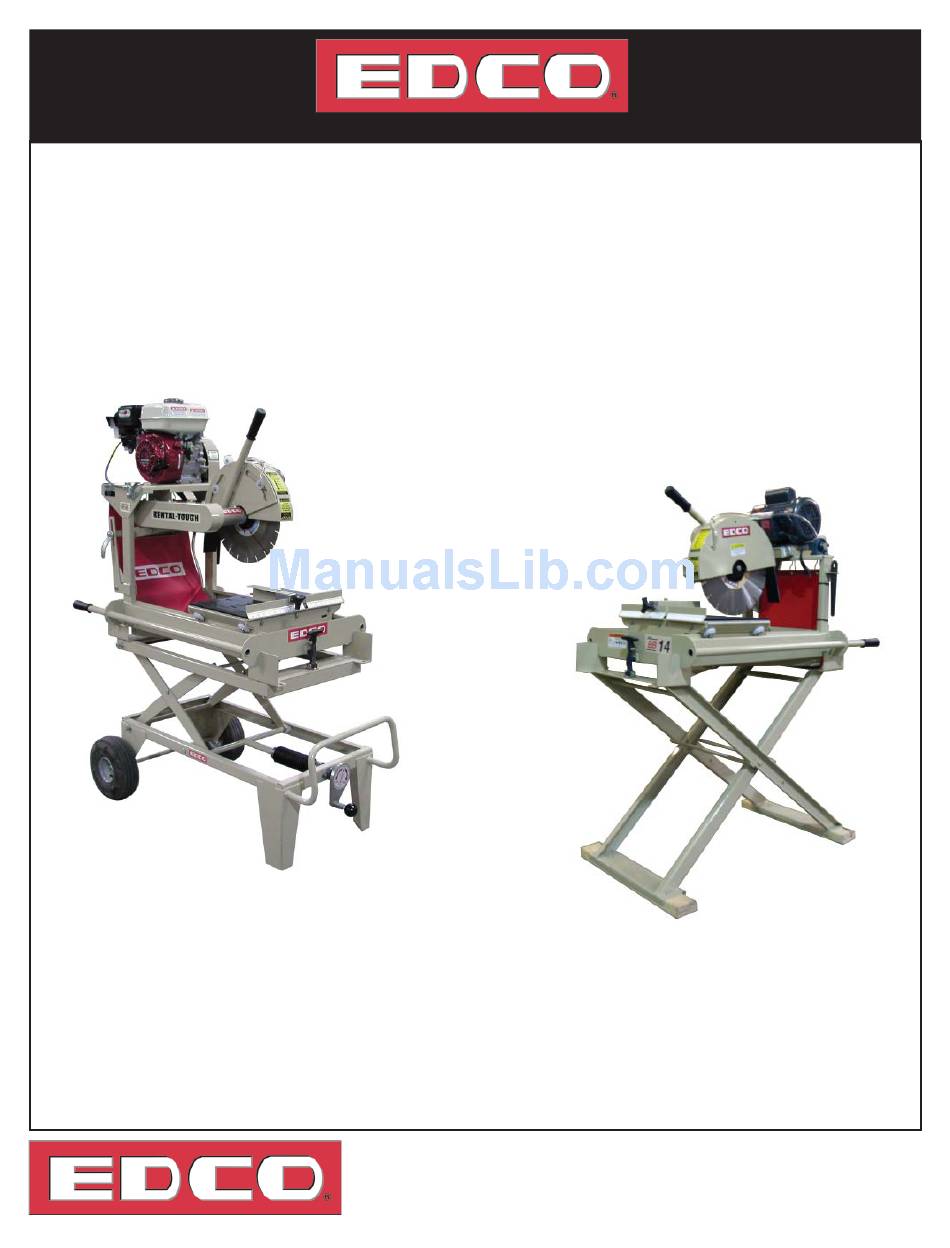

  • Page 1 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator’s Instruction Manual Masonry Saws BB14G BB14E Shown with Optional Pro Cart Shown with Optional Stand GASOLINE AND ELECTRIC 14” MASONRY SAWS 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone: 301-638-3326 • 301-663-1600 Fax: 800-447-3326 •...
  • Page 2 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord.

  • Page 3: Table Of Contents

    Figure 1 Specifi cations and dimensions are approximate HOW TO ORDER REPAIR PARTS and subject to change. To insure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equipment. Model BB14E BB14G When ordering parts, please specify the MOD- EL and SERIAL NUMBER of the machine as 37”...

  • Page 4: Operator Controls

    E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Operator Controls - Gas Models BB14 Gas (Figure 2) Air Filter B. Fuel Tank C. On/Off Switch D. Water Pump Belt Guard E. Oil Dip Stick F. Handle G. Blade Guard H. Water Tray Plug Rolling Table J.
  • Page 5 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operator Controls- Electric Models BB14 Electric (Figure 4) A. Operating Handle B. Motor C. Reset Button D. Power Cord E. Water Pick Up Hose F. Water Tray Plug G. Rolling Table H. Welded Steel Frame/Water Tray Blade Guard J.

  • Page 6: Safety/Warnings

    E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Read and understand this Operator’s Instruction Manual, and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the saw is in use. During normal operation, sound pressure levels exceed 85dBA.

  • Page 7: Operating Instructions

    E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Operating Instructions Before Starting: • Read and understand the instructions supplied by the engine manufacturer. • Familiarize yourself with all engine and saw controls. (Figure 2) • Visually inspect the entire machine for damage or wear. Look for signs of oil or fuel leaks.
  • Page 8 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. When Wet Cutting: • Secure the drain plug and fi ll the tray with clean water. On Gasoline Models: • To engage water pump loosen the black knob and lightly push top of water pump to the left with constant pressure and tighten black knob.
  • Page 9 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. When Dry Cutting: • Drain and fl ush any water or debris in the tray and dispose of properly. On Gasoline models: • To disengage water pump loosen the black knob and push top of water pump to the right with constant pressure and tighten black knob.
  • Page 10 - altering this setting may damage the machine. Maintain the engine according to factory specifi cations. Throttle Throttle Figure 15 (BB14G) Starting the Electric Motor: REMINDER: Motor burnout due to use of improper voltage will void the warranty on the motor.
  • Page 11 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Cutting: • Do not strain the engine/motor while cutting. Do not jam work piece into the blade. Do not twist the work piece while cutting. • When you have fi nished cutting: On Gasoline models: To stop engine, return throttle to idle. Stop the engine by turning the engine mounted stop switch to the OFF position.

  • Page 12: Maintenance

    E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Disconnect spark plug lead before performing any maintenance on this machine. Maintenance Consult the Engine Manufacturer’s Owner’s Manual for more detailed engine maintenance instructions. Changing the Blade: • Inspect the new blade thoroughly before installing. Check for cracks, loose or missing segments, worn or out-of- round arbor holes.
  • Page 13 E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Belt Adjustment and Replacement: • Periodically check belt(s) for damage, same type and are at the proper tension. Do not mix belts. Slipping belt(s) will overheat causing the cutting speed to be limited and shorten the life of the belts. Over-tensioned belts will shorten the life of the belt(s) and bearings.
  • Page 14 E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. Grease Bearings: • Drive shaft bearings must be greased every 4 hours. (All are not visible in this photo) • Electric Motor - if your motor has a grease fi tting, grease every 3600 hours. Use Exxon Mobil Polyrex EM. Don not over grease.

  • Page 15: Maintenance Schedule

    E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. Repairs are to be preformed Read and follow all instructions by EDCO or by approved in the Engine Manufacturer’s EDCO repair technicians. Owner’s Manual. Maintenance Schedule Before Daily Every 4 Every 50 Annually Every 3600...

  • Page 16: Notes

    E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ This page intentionally left blank. Page 16 800-638-3326 • edcoinc.com • sales@edcoinc.com...

  • Page 17: Notes

    E-BB14E&BB14G-I-0416 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ This page intentionally left blank. Page 17 800-638-3326 • edcoinc.com • sales@edcoinc.com...

  • Page 18: Smi Dust And Silica Warning

    E-BB14E&BB14G-I-0416 EQUIPMENT DEVELOPMENT CO., INC. SMI Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm.

  • Page 19: Limited Equipment Warranty

    *Seller reserves the right to hold shipments against past due accounts. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been *Seller reserves the right to alter payment terms.
  • Page 20 E-SPTS-I-0809 EQUIPMENT DEVELOPMENT CO., INC. SURFACE PREPARATION, RESORATION, PROFESSIONAL SAWING EQUIPMENT & HAND HELD TOOLS 100 THOMAS JOHNSON DRIVE, FREDERICK, MD 21702 PHONE: 800-638-3326 OR 301-663-1600 Fax: 800-447-3326 or 301-663-1607 Email: sales@edcoinc.com Website: edcoinc.com Patents Pending & Issued Created - 6, 2014 Edited - 4, 2016 Printed in USA ©2014 800-638-3326 •...
