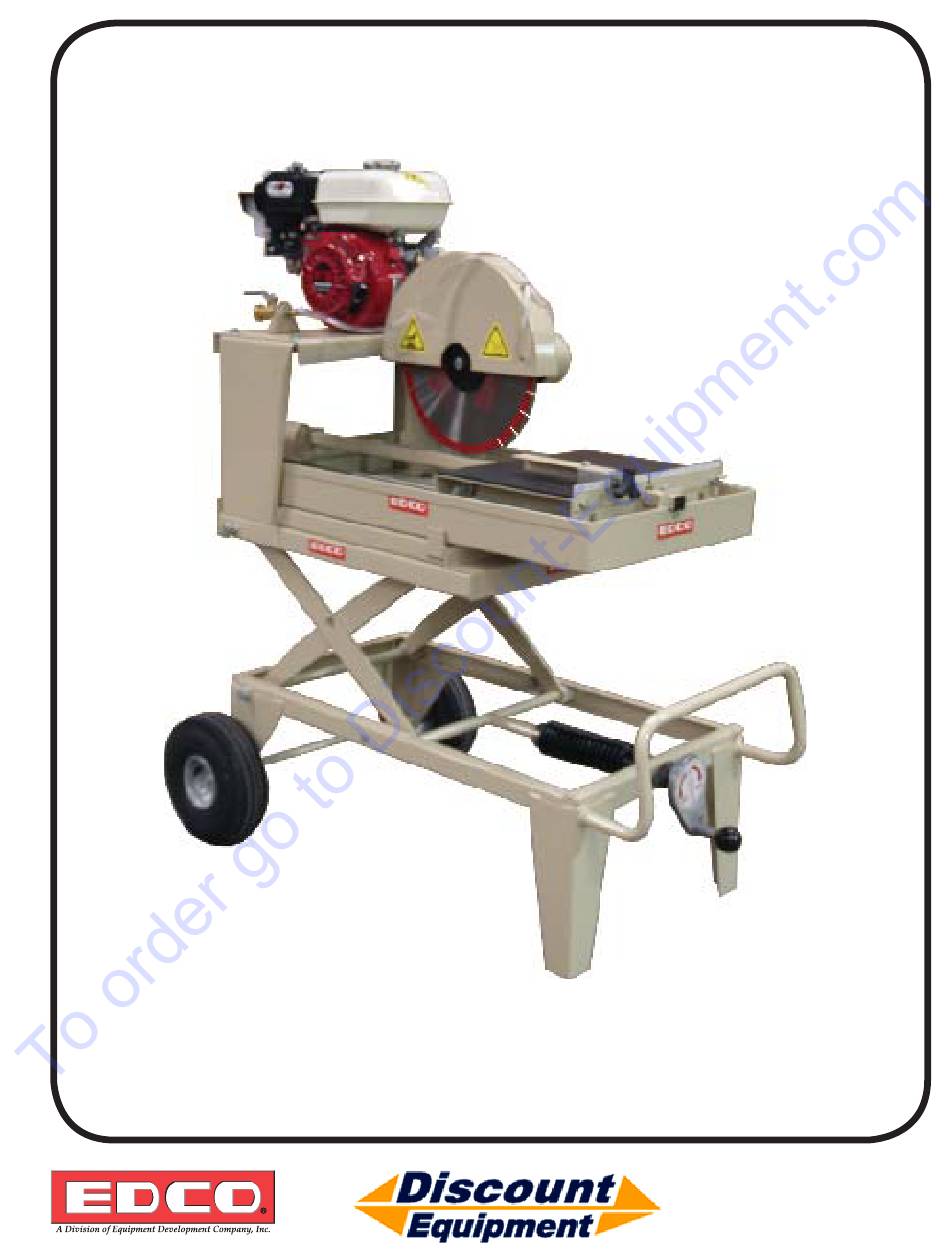

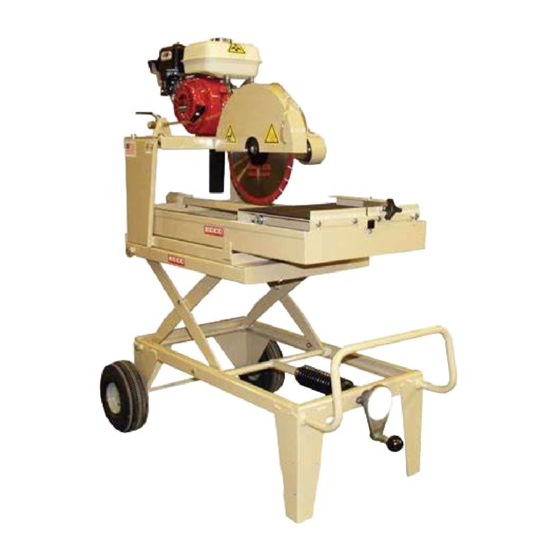

- Page 1 E-HSS14-I-0408 Operator’s Instruction Manual HSS-14 NOTE: Shown with optional cart 14” Gasoline Powered Masonry Saw Manual - Portable Printed in USA ©2008 Page 1...
- Page 2 Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-...
- Page 3 E-HSS14-I-0408 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY SAFETY MESSAGES the plug, not the cord.
- Page 4 E-HSS14-I-0408 SPECIFICATIONS Table of Contents Section Page Number Safety/Warnings...................... Specifi cations/Table of Contents................Safety Guidelines....................Operating Instructions..................... 8-10 Maintenance......................SMI Dust and Silica Warning................... Maintenance Schedule.................... Back Page Limited Equipment Warranty................... Note: All dimensions and weights are for reference only and subject to change at any time.
- Page 5 E-HSS14-I-0408 Read and understand this Operator’s Instruction Manual, and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the HSS-14 is in use. During normal opera- tion, sound pressure levels exceed 85dBA.
- Page 6 E-HSS14-I-0408 Operating Instructions Diagrams shown with Honda Cyclone Dual-Filter Element Engine as an example. Consult the Engine Manufacturer’sOwner’s Manual for information on specifi c models. N. Rolling Table A. Spark Plug Lead O. Diamond Blade B. Air Filter P. Blade Guard C.
- Page 7 If dry cutting, attach the vacuum to the end of the dust channel circled in (Figure 7). Note: While the HSS-14 was designed to be used with a standard shop vac, EDCO recommends using a heavy duty industrial vacuum such as the VAC-100. The VAC-100 has the advantage of a Self-Purging System to help keep concrete dust from building up on the fi...
- Page 8 E-HSS14-I-0408 Starting the Engine: • Be sure blade is clear of item to be cut. • Determine that the recoil starter assembly turns freely, starter rope pulls easily, and the rope retracts properly. • Follow the instructions supplied in the engine manufacturer’s Owner’s Manual for starting engine. •...
- Page 9 E-HSS14-I-0408 Disconnect spark plug lead before performing any maintenance on this machine. Maintenance Consult the Engine Manufacturer’s Owner’s Manual for more detailed engine maintenance instructions. Changing the Blade: • Inspect the new blade thoroughly before installing. Check for cracks, loose segments, worn or out-of-round arbor holes.
- Page 10 E-HSS14-I-0408 Belt Adjustment and Replacement: • Periodically check to be sure the belts are undamaged and that they are at the proper tension. Slipping belts will overheat causing the cutting speed to be limited and will shorten the life of the belts. Over-tensioned belts will shorten the life of the belts and bearings.
- Page 11 E-HSS14-I-0408 Change Engine Oil: • Check Engine Oil before each operation. Open the fi ller cap and look at the dip stick. (Figure 16) Oil should be clearly visable both on the stick and in the cavity and should look fairly clean. Running the machine on dirty oil or when the oil is low will result in damage to the equipment.
- Page 12 E-HSS14-I-0408 Repairs are to be done Read and follow instructions by authorized EDCO in the Engine Manufacturer’s Dealers only. Owner’s Manual. Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual.
