Edco SS-30G Operator's Instruction Manual

Self-propelled concrete/asphalt saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E-SS30-I-0924
Operator's Instruction Manual
SS-30G & SS-30E

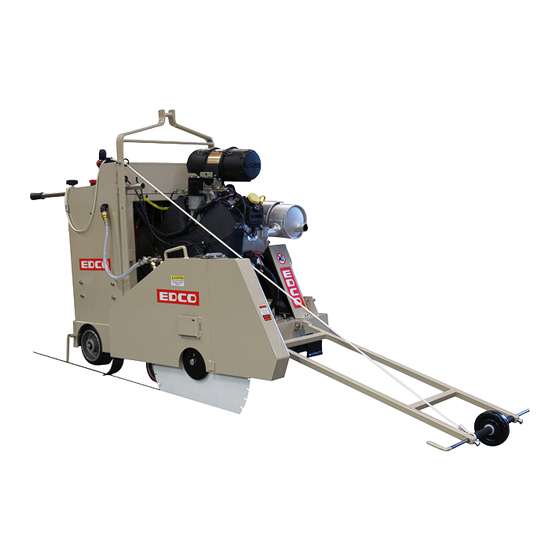

SS-30G Shown
Self-Propelled
Concrete/Asphalt Saw
Gasoline & Electric available
READ AND UNDERSTAND THE OPERATOR'S SAFETY MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
EQUIPMENT DEVELOPMENT COMPANY, INC.
Printed in USA
©2024
JWA
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
800-638-3326 • edcoinc.com • techsupport@edcoinc.com
Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607
Page 1
Website: www.edcoinc.com • E-mail: techsupport@edcoinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-30G and is the answer not in the manual?

Questions and answers

Related Manuals for Edco SS-30G

Summary of Contents for Edco SS-30G

  • Page 1 E-SS30-I-0924 Operator’s Instruction Manual SS-30G & SS-30E SS-30G Shown Self-Propelled Concrete/Asphalt Saw Gasoline & Electric available READ AND UNDERSTAND THE OPERATOR’S SAFETY MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly.

  • Page 2: Safety Information

    E-SS30-I-0924 SAFETY INFORMATION SAFETY MESSAGES ELECTRICAL POWERED EQUIPMENT CONTINUED • Safety Instructions are proceeded by a graphic alert symbol of DANGER, • Do not disconnect power by pulling cord. To disconnect, grasp the WARNING, or CAUTION. plug, not the cord. •...

  • Page 3: Table Of Contents

    Limited Equipment Warranty of Sale ......21 EDCO’s Online Customer Support ....... 22...

  • Page 4: Machine Safety Symbol Label Reference

    E-SS30-I-0924 MACHINE SAFETY SYMBOL LABEL REFERENCE This symbol means that the guards must remain in place while the engine/motor on the machine is running because death or personal injury may result. (Yellow background with black pictogram and black outline) This symbol means that there are moving parts and if feet/fingers/digits are inserted under any edge of the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss of foot/fingers/digits may result.
  • Page 5 E-SS30-I-0924 MACHINE SAFETY SYMBOL LABEL REFERENCE This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be read and understood before operating or attempting to operate this electrical, gasoline, diesel or propane powered equipment, failure to do so can result in personal injury and possible death. (Blue background with white pictogram.) This symbol means that proper eye protection must be worn/used during the operation of this equipment.

  • Page 6: California Proposition 65 Warning

    California. While the exposure from EDCO products may be negligible or well within the “no significant risk” range, out of an abundance of caution, EDCO has elected to provide these Proposition 65 warnings.

  • Page 7: Dust And Crystalline Silica Warning

    E-SS30-I-0924 DUST AND CRYSTALLINE SILICA WARNING Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheets and/or consult your employer, the manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources...

  • Page 8: Safety Guidelines

    E-SS30-I-0924 Read and understand the Operator’s Instruction Manual and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death or serious injury can result if this machine is used improperly. Safety Guidelines Remove all rings, watches and jewelry prior to doing any work inside the console area. Metallic jewelry could short out the positive lead on the battery or the hydraulic power unit and cause severe bodily injury.

  • Page 9: Operating Instructions

    E-SS30-I-0924 Operating Controls for SS-30G (Gasoline Powered) DC Hydaulic Power Unit mounted inside compartment at this location. (See page 14) Figure 2 SS-30G Operator’s Console 1. Ammeter 2. Hour Meter 3. Cut Control 4. Depth Gauge 5. Blade Saver Switch 6.
  • Page 10 E-SS30-I-0924 Operating Controls for SS-30E (Electric Powered) SS-30E Operator’s Console 1. AMP Meter 2. Hour Meter 3. Water Pump Switch 4. Depth Indicator 5. OFF Button (RED) 6. On Button (GREEN) 7. Battery Saver Switch Low Water Pressure Alert 9. Guide Bar Rope 10.
  • Page 11 E-SS30-I-0924 Do not operate gasoline or diesel powered equipment without adequate ventilation. Carbon monoxide is an invisible, odorless gas that can kill. Before Starting the Engine/Motor: • Inspect machine before each use according to the Maintenance Schedule on page 19. •...
  • Page 12 E-SS30-I-0924 Starting the Saw Electric: • Verify the Drive Control lever is in the Neutral (center) position. (Figures 2 & 3) • Verify that the blade is raised high enough to clear the ground. • Disengage the Clutch. (Figure 5) •...

  • Page 13: Tracking Adjustment

    Replace damaged or questionable blades immediately. Note: The SS-30G is equipped with an engine ammeter to show the rate of charge for the battery while the engine is running. The engine alternator is designed for an output of 30 amperes. This is adequate to keep the battery fully charged.

  • Page 14: Maintenance

    E-SS30-I-0924 The following maintenance instructions are brief explanations of some of the items suggested in the Maintenance Schedule chart on page 19. These instructions are not replacements for the Engine Manufacturer’s Maintenance Instructions. Maintenance Disconnect the machine from the power source by disconnecting the spark plug or battery leads before DC Hydraulic performing any maintenance.
  • Page 15 E-SS30-I-0924 Inspect Arbor Drive Belts - Model SS-30E • Proper belt tension must be maintained to transmit the motor power to the cutting blade. Slipping belts will over heat, the blade life will be shortened and the cutting speed limited. Over tensioned belts will shorten the belt and bearing life.

  • Page 16: Charcoal Canister

    To replace belts or change Blade Size on Model SS-30G • The model SS-30G is a heavy duty saw designed to use large diameter blades for deep cutting. Blade size 14 inch to maximum diameter of 30 inches (762mm). •...

  • Page 17: Transporting The Saw

    E-SS30-I-0924 Important! Arbor Shaft Bearings MUST be lubricated EVERY FOUR HOURS! Grease Bearings - (12 Total) Arbor Shaft Bearing grease points Arbor Shaft Bearings (2) must be greased every 4 hours. (Figure 13) All other Bearings (8/10) must be greased every 40 hours. Those include: Front Wheel Bearings (2), Fork Assembly Bearings (2) Rear Drive Wheel Bearings (2), Clutch Sprocket Bearings (2)

  • Page 18: Installing Blades

    Unbalanced blades will wear excessively, vibrate and damage both arbor shaft and bearings. For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can break and cause serious personal injury to operator and/or bystanders. If abrasive blades are used by choice, only use those which are marked as reinforced abrasive blades.

  • Page 19: Maintenance Schedule Chart

    Tension to 70 ft. lbs. of deflection Tracking All of the above apply to SS-30G Gasoline models. *# These Apply to SS-30E Electric models. # Hydrostatic Transmission Reservoir - Fill with GM Dexron B or other comparable fluid Hyrdraulic Pump Reservoir - Fill with Dexron III 800-638-3326 •...
  • Page 20 E-SS30-I-0924 Page intentionally left blank. 800-638-3326 • edcoinc.com • techsupport@edcoinc.com Page 20...

  • Page 21: Limited Equipment Warranty Of Sale

    *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3.

  • Page 22: Before Using This Product

    EDCO product group. The information in these tracks help businesses be successful with those products. EDCO is always updating online training / information so you always have the most recent content. Also see Operator’s Safety & Limited Warranty Manual Equipment Development Co., Inc.

This manual is also suitable for:

Ss-30e
