4 Terminal Configuration and Functions

4.1

Pin Diagrams

Figure 4-1 shows the pinout for the 32-pin RHB package.
4.2

Signal Descriptions

Table 4-1 describes the signals.
TERMINAL
TYPE
NO. NAME
1 VDD_A OUT
2 VIN SUP
3 VDD_RF OUT
4 VDD_PA
5 TX_OUT OUT
6 VSS_PA SUP
7 VSS_RX SUP
8 RX_IN1
9 RX_IN2
10 VSS SUP
11 BAND_GAP OUT
12 ASK/OOK
13 IRQ OUT
14 MOD
OUT
15 VSS_A SUP
16 VDD_I/O
17 I/O_0
18 I/O_1
19 I/O_2
(1) SUP = Supply, INP = Input, BID = Bidirectional, OUT = Output
6 Terminal Configuration and Functions
32 31 30
VDD_A 1
VIN
2
VDD_RF 3
4
VDD_PA
TX_OUT 5
6
VSS_PA
7
VSS_RX
8
RX_IN1
9 10 11

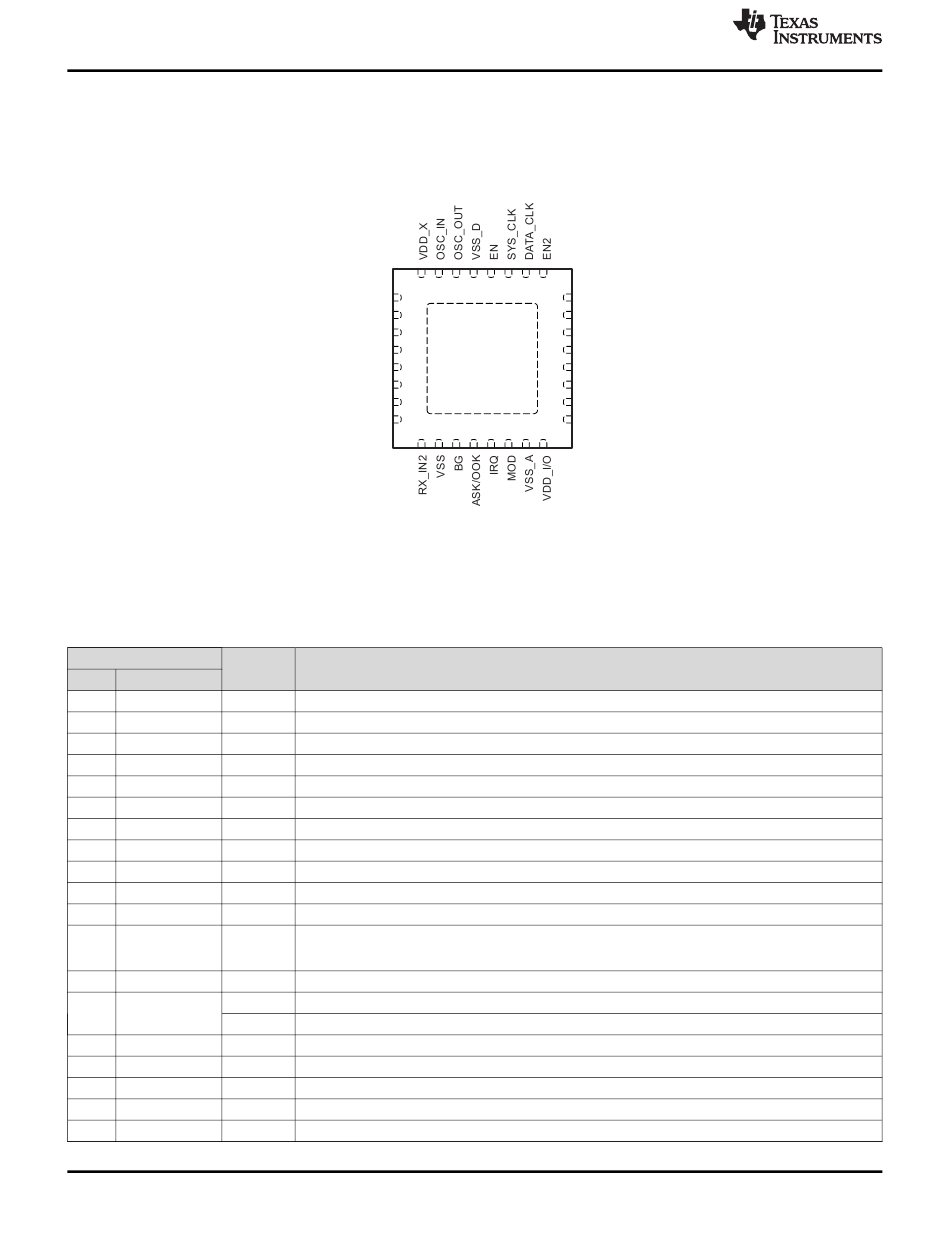

Figure 4-1. 32-Pin RHB Package (Top View)
Table 4-1. Signal Descriptions
(1)
Internal regulated supply (2.7 V to 3.4 V) for analog circuitry
External supply input to chip (2.7 V to 5.5 V)
Internal regulated supply (2.7 V to 5 V); normally connected to VDD_PA (pin 4)
INP Supply for PA; normally connected externally to VDD_RF (pin 3)
RF output (selectable output power: 100 mW or 200 mW, with V
Negative supply for PA; normally connected to circuit ground
Negative supply for receive inputs; normally connected to circuit ground
INP Main receive input
INP Auxiliary receive input
Chip substrate ground
Bandgap voltage (V
BG
Selection between ASK and OOK modulation (0 = ASK, 1 = OOK) for direct mode 0 and 1.
BID
It can be configured as an output to provide the received analog signal output.
Interrupt request
INP External data modulation input for direct mode 0 or 1
Subcarrier digital data output (see register 0x1A and 0x1B definitions)
Negative supply for internal analog circuits. Connected to GND.
INP Supply for I/O communications (1.8 V to VIN) level shifter. VIN should be never exceeded.
BID I/O pin for parallel communication
BID I/O pin for parallel communication
BID I/O pin for parallel communication
