TPS5516xQ1-EVM Evaluation Module for 1-A Single-
Inductor Buck-Boost-Converter
The Texas Instruments TPS55160Q1-EVM and TPS55165Q1-EVM evaluation modules (EVMs) help
designers evaluate the operation and performance of the TPS55160-Q1 and TPS55165-Q1 1-A single-
inductor buck-boost converters. This user's guide describes how to set up and configure the EVMs for
operation. This document also provides the board layout, the schematic, and the bill of materials (BoM) for
the EVMs.
The TPS55160-Q1 device allows users to set the output voltage from 5.7 V to 9 V through a feedback-
divider. The TPS55165-Q1 device has a selectable output voltage of 5 V or 12 V.
...................................................................................................................
1
2
2.1
2.2
2.3
3
3.1
3.2
3.3
3.4
4
4.1
4.2
4.3
4.4
4.5
5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
SLVUAY1 - November 2017
Submit Documentation Feedback
.................................................................................
...........................................................................................................
......................................................................................................
...............................................................................
......................................................................................................
.............................................................................................
............................................................................................
....................................................................................................
.......................................................................................................
...........................................................................................................
................................................................................................
.............................................................................................
....................................................................................................
List of Figures
................................................................................
................................................................................
......................................................................................
..............................................................................................
...............................................................................
...............................................................................
..........................................................................................
.........................................................................................................
............................................................................................................
............................................................................................................
.....................................................................................................
Copyright © 2017, Texas Instruments Incorporated
Contents
......................................................................
.........................................................................
..........................................................
...........................................................
..........................................................................
.........................................................................
User's Guide
SLVUAY1 - November 2017
3
3
4
5
7
11
11
12
14
15
16
16
16
.........................
17
18
19
20
3
3
4
4
5
7
8
8
9
9
10
10
10
10
10
1
Converter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS55165Q1-EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments TPS55165Q1-EVM

Summary of Contents for Texas Instruments TPS55165Q1-EVM

  • Page 1: Table Of Contents

    TPS5516xQ1-EVM Evaluation Module for 1-A Single- Inductor Buck-Boost-Converter The Texas Instruments TPS55160Q1-EVM and TPS55165Q1-EVM evaluation modules (EVMs) help designers evaluate the operation and performance of the TPS55160-Q1 and TPS55165-Q1 1-A single- inductor buck-boost converters. This user's guide describes how to set up and configure the EVMs for operation.
  • Page 2 ............TPS55165Q1-EVM Showing Supply and Load Connections ......Ignition Jumper Configuration Default: ON (Device powers up when power is applied) ..............Power-Latch Jumper Configuration Default: LATCH ..Spread Spectrum Enable Jumper Configuration Default: Jumper Installed, Spread Spectrum Disabled ....

  • Page 3: Introduction

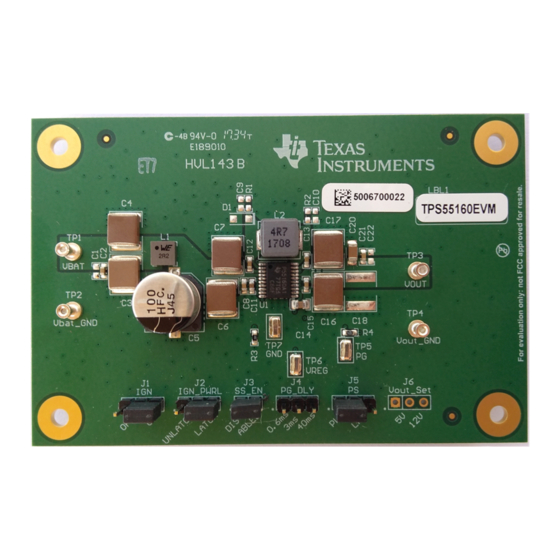

    TPS55160Q1-EVM and TPS55165Q1-EVM boards with jumper settings. Figure 1. TPS55160Q1-EVM With Jumper Settings Figure 2. TPS55165Q1-EVM With Jumper Settings Schematic, Bill of Materials, and Layout This section provides a more detailed description of the schematic, bill of materials (BOM), and layout.

  • Page 4: Schematic

    0.01µF 0.01µF PGND Vout_Set PGND PGND PGND Copyright © 2017, Texas Instruments Incorporated Figure 3. Schematic Diagram—No Variations 5V / 12V / adjustable 4V - 36V (12V output) 1A (buck mode only, reduced in boost-mode) 2V - 36V (5V output) 0.1µF...

  • Page 5: Bill Of Materials

    VOUT VOUT PGND 0.01µF 0.01µF PGND Vout_Set PGND PGND PGND Copyright © 2017, Texas Instruments Incorporated Figure 5. TPS55165Q1-EVM Schematic Diagram—Assembly Option Bill of Materials Table 1. Bill of Materials (BOM) Quantityfor Quantityfor TPS55165Q TPS55160Q Designator 1-EVM 1-EVM Value Description...
  • Page 6 RES, 82.5 k, 1%, 0.1 W, 0603 0603 CRCW060382K5FKEA Vishay-Dale 9.09 k RES, 9.09 k, 1%, 0.1 W, 0603 0603 CRCW06039K09FKEA Vishay-Dale TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 7: Layout And Component Placement

    The C1, C18, C19, and C22 capacitors are not installed. Their footprints allow for additional input decoupling or bulk capacitance. The R6 and R7 resistors are not populated on the TPS55165Q1-EVM. Select the output voltage of either 5V or 12V using J6, which is named Vout_Set.

  • Page 8: Tps55160Q1-Evm Top Layer-Overview

    Schematic, Bill of Materials, and Layout www.ti.com Figure 7. TPS55160Q1-EVM Top Layer—Overview Figure 8. TPS55165Q1-EVM Top Layer—Overview TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 9: Component Placement-Bottom

    Figure 10, and Figure 11 show the bottom layout of the EVM, with assembly options for the fixed voltage version (TPS55165Q1-EVM) at the adjustable voltage version (TPS55160Q1-EVM). Figure 9. Component Placement—Bottom Figure 10. TPS55160Q1-EVM Bottom Layer—Overview SLVUAY1 – November 2017...

  • Page 10: Tps55165Q1-Evm Bottom Layer-Overview

    Schematic, Bill of Materials, and Layout www.ti.com Figure 11. TPS55165Q1-EVM Bottom Layer—Overview Figure Figure Figure 14, and Figure 15 show the EVM board layers. Figure 13. Layout—Layer 2 Figure 12. Layout—Top Layer Figure 14. Layout—Layer 3 Figure 15. Layout—Bottom Layer TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 –...

  • Page 11: Setup And Operation

    TPS55165EVM Supply Line + Load + Supply Line GND Load GND Figure 16. TPS55165Q1-EVM Showing Supply and Load Connections SLVUAY1 – November 2017 TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 12: Jumper Configuration

    To make a jumper change effective, power cycle the supply or turn off the output (move the IGN jumper to OFF while the device is unlatched). TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 13 NOTE: To make a jumper change effective, power cycle the supply or turn off the output (move the IGN jumper to OFF while the device is unlatched). SLVUAY1 – November 2017 TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 14: Test Point Description

    TP7 (GND)— Connect ground-test leads to this test point for sensitive measurements. The output voltage can be measured at the turrets provided for the output. TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 15: Basic Operation

    2. Move the Vout_Set jumper to the new position. 3. Power up the device. The output voltage can also be changed by following these steps on the TPS55165Q1-EVM: 1. Move the IGN jumper to the OFF setting while the device is unlatched.

  • Page 16: Typical Performance

    Figure 26. Startup When VIN is Already Present and IGN is Figure 27. Startup With IGN Tied to VIN and Both Ramp Up Pulled High TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 17: Switch Node Waveforms In Buck Mode, Boost Mode, And In Buck-Boost Mode

    = 5 V) 5 V) VOUT Figure 30. Switch-Nodes in Boost Mode (V = 2.5 V, V = 5 V) VOUT SLVUAY1 – November 2017 TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 18: Load-Step Response

    = 12 V (Buck Mode), 100 mA-800 mA-100 = 12 V, V = 12 V (Buck-Boost Mode), 100 mA-600 VOUT VOUT mA-100 mA TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- SLVUAY1 – November 2017 Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 19 Figure 38. Cranking Pulse Response With 5-V Output, 200- mA load, Zoom to 200 µs/div mA Load, Zoom to 5 ms/div SLVUAY1 – November 2017 TPS5516xQ1-EVM Evaluation Module for 1-A Single-Inductor Buck-Boost- Converter Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...

  • Page 20: Line Step Response / Cranking Support 5 Related Documentation
