Infrared Sauna Instruction Manual
Models: DYN-6119-01

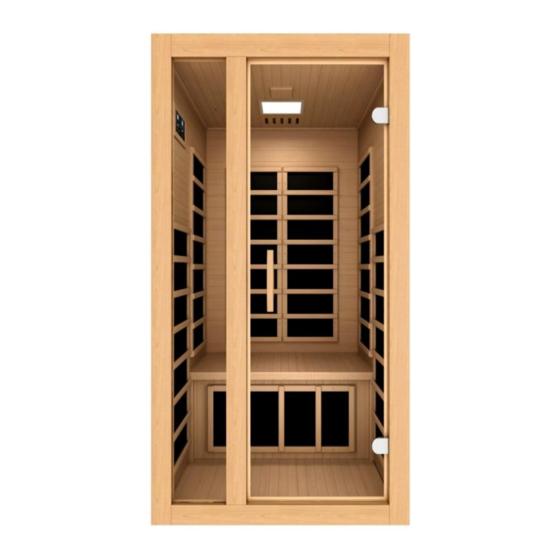

1-2 Person FAR Infrared Sauna
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DYN-6119-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic Saunas DYN-6119-01

Summary of Contents for Dynamic Saunas DYN-6119-01

  • Page 1 Infrared Sauna Instruction Manual Models: DYN-6119-01 1-2 Person FAR Infrared Sauna CARBON MODEL SAUNA FOR INDOOR USE ONLY 120VAC 15AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and...
  • Page 2 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 Health Benefits Include, But Are Not Limited To: *Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Increases blood circulation *Cardiovascular conditioning *Clears rashes, acne *Reduces cellulite *Removes toxins and mineral waste *Reduces stress and fatigue *Enhances skin tone DISCLAIMER The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits based on research completed over the last 40 years from all around the world.
  • Page 4 as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the number of wave cycles each second. The lower the frequency of a field, the lower its energy. Power frequency fields are low frequency fields and have low energy levels. Microwave and x-ray fields are high frequency fields and have high energy levels.
  • Page 5 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* DYN-6119-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 4...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Packing List Highlights Assembly Operating the Sauna Tips for Using your Sauna Safety Instructions Safeguards for your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.
  • Page 7 Highlights A. High quality craftsmanship B. Temperature control C. Timer D. Infrared carbon heat emitter panels E. Control Panel: F. Power supply: G. MP3 Jack: H. Guide and Guide Insert brackets: Page 6...

  • Page 8: Assembly

    Buckles: Assembly Please note the following: A. You will need a Philips screwdriver, ladder, and two adults to assemble. B. Do not plug any other appliances into the power supply of the sauna room other than the designated sauna connections/plugs. C.
  • Page 9 2. A second adult can now remove the left side panel from the carton. The left side panel will need to be placed next to the front wall panel. Next, the left side panel will need to be lifted upward in order to connect the guide and guide insert brackets on both wall panels.
  • Page 10 between the left wall panel and right wall panel. Push it all the way and against the front panel. Please note that the front and rear are the long side and it doesn’t matter which is the front or rear. (see Figure 4) FIG 4 Assembling Floor Panel 5.
  • Page 11 FIG 6 Assembling Roof Panel 7. Connect all the wires and connectors to the corresponding outlets on the Roof Panel. Be sure that all the plugs are connected snug and tight. (see FIG-7) FIG-7 Connecting cords/wires connectors 6. It is now time to install the door handle, bench heat emitter panel and bench. Locate the door handle and screw it to the glass door.
  • Page 12 8. Make sure all steps are completed correctly. Next, plug in the power cord to your wall outlet. Turn on the sauna at the control panel to confirm that the control panel is responding. If the control panel responds accordingly, then proceed in putting the roof cover onto the roof panel.

  • Page 13: Operating The Sauna

    Operating the Sauna 1. Precautions A. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. B. Set the temperature and time to a comfortable level. Please keep in mind that you can either preheat the sauna to the set temperature before entering or sit inside the sauna as the temperature rises.
  • Page 14 B. The sauna should be unplugged when not in use. C. To set the temperature, press the temperature buttons to increase or decrease the temperature to the desired temperature. If the “Heat" light is on, the temperature setting will increase one degree every time the button is pressed.
  • Page 15 E. You can operate the sauna with the ceiling vent in the open or closed position. F. After your sauna session is over, you can turn the control panel off by pressing the ON/OFF button. You can unplug the sauna cord if the sauna will not be used for an extended period of time.

  • Page 16: Tips For Using Your Sauna

    Tips for using Your Sauna 1. If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2. Drink water prior to, during, and after your sauna session to replenish body fluids. 3.
  • Page 17 4. Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to allow the body to cool down completely. 5. Pregnant or possibly pregnant women should contact their medical physician prior to using the sauna. Excessive temperatures have a high potential for causing fetal harm during pregnancy.

  • Page 18: Safeguards For Your Sauna

    sauna with wet hands or wet feet to avoid the risk of electrical shock or injury. Never touch the metal prongs of the plug. 19. Do not attempt to make any repairs yourself unless authorized by the manufacturer or its agent. If a problem occurs with the sauna, please contact the manufacturer or its agent immediately to avoid safety risks.
  • Page 19 Troubleshooting problem possible reason countermeasure indicator light for The connector is not Check the connector or power supply not connected properly replace a new one working No power supply input Check your circuit breaker to confirm power at the wall outlet Indicator light is broken replace the circuit panel...
  • Page 20 The temperature The temperature inside the Turn off the unit, and contact display shows "H" sauna room is too the manufacturer high Speaker does not The speaker is broken Replace with a new one of work the same specifications The speaker wire is loose Disconnect and reconnect the speaker connections The power indicator light for...
  • Page 21 Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.

  • Page 22: Warranty

     Outdoor applications  Normal wear and tear or weathering  Use of product not in accordance with instructions  Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.

  • Page 23: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
