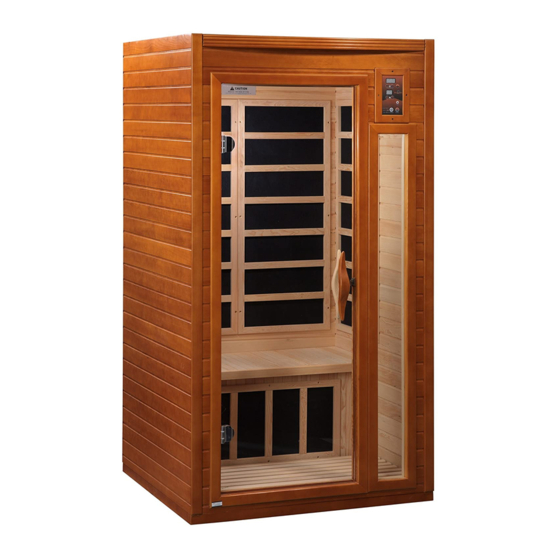

Dynamic Saunas DYN6102 Owner's Manual

1 – 2 person ceramic and carbon saunas for indoor use only 120vac 15 amp dedicated circuit
Hide thumbs Also See for DYN6102:
Table of Contents

Advertisement

Quick Links

DYN6101 / DYN6102 / DYN6106 / DYN6109
DYN9101 / DYN9102 / DYN9106
1 – 2 Person Sauna
OWNER'S MANUAL
FOR CERAMIC AND CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN6102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic Saunas DYN6102

Summary of Contents for Dynamic Saunas DYN6102

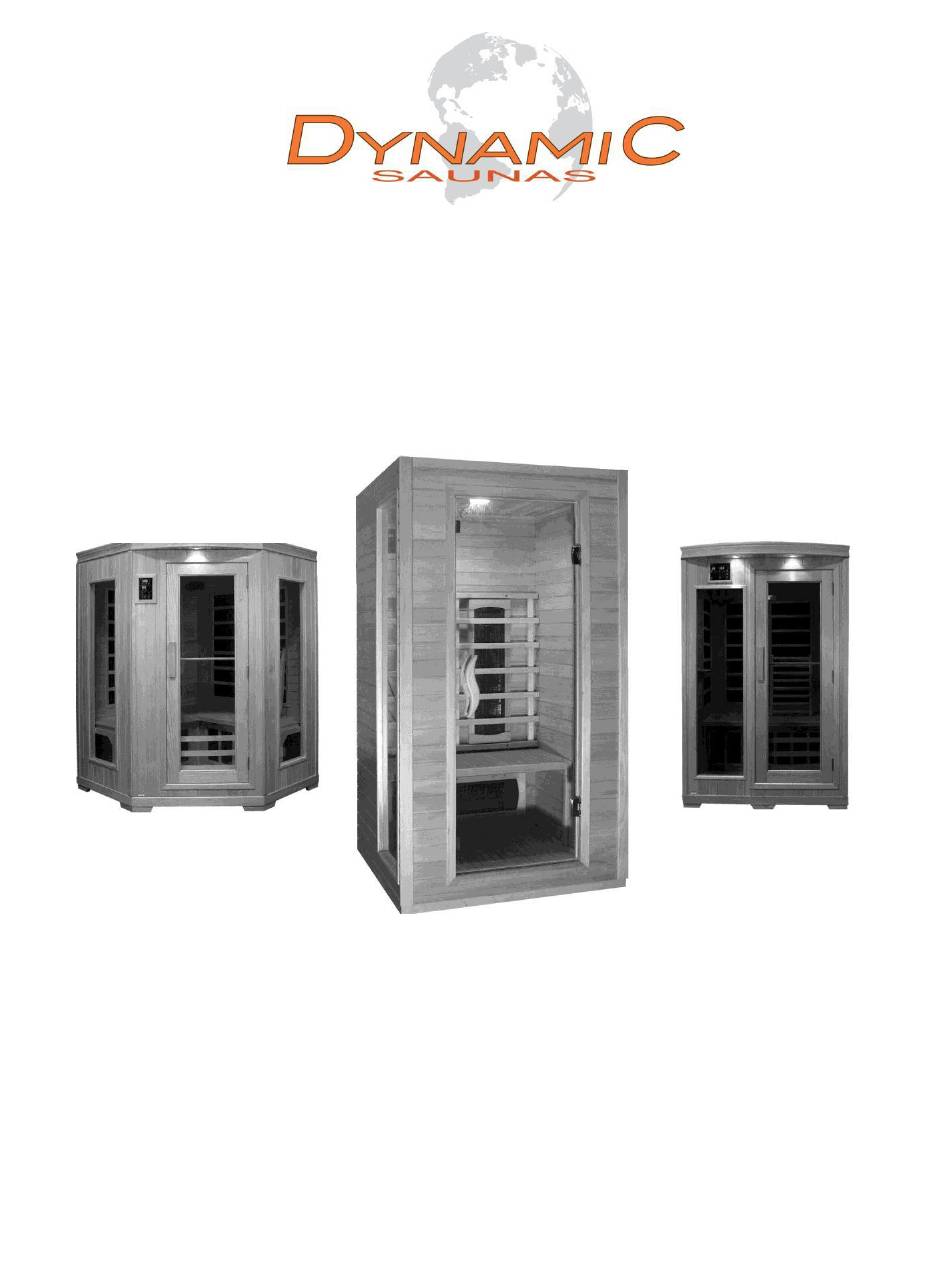

  • Page 1 DYN6101 / DYN6102 / DYN6106 / DYN6109 DYN9101 / DYN9102 / DYN9106 1 – 2 Person Sauna OWNER’S MANUAL FOR CERAMIC AND CARBON MODEL SAUNAS FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality.
  • Page 2 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* DYN-6106 DYN-9101 *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary.
  • Page 3 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 5 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increasing blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged. Any excessive vibrations during transport could cause damage to the heating elements.

  • Page 7: Parts Description

    PARTS DESCRIPTION A. FRONT OF SAUNA (see figure 1) B. INSIDE OF SAUNA (see figure 2) Figure 1 Figure 2 1) Door Handle 2) Tempered Glass Door 3) Ventilation Grid 4) Speaker 5) Reading Lamp 6) Control Panel 7) Temperature Sensor 8) Heat Emitter 9) Bench Panel 10) Back Protection Grid (Ceramic Model Saunas Only)
  • Page 8 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see figure 3) Figure 3 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords LIGHT...
  • Page 9 III. Component Labeling POWER Power Cord HT1, HT2, HT3, HT4 Emitter (heater) power cords LIGHT Reading lamp connector CTRL Control panel connector CD/SIG For CD/temperature sensor/buzzer/etc. connectors L/SPEAKER Left speaker connector R/SPEAKER Right speaker connector TEMP SENSOR Temperature sensor BUZZER Buzzer connector MP3 AUX INPUT MP3 /radio connection...
  • Page 10 Figure 6 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. Floor Panel When the floor panel faces upward, you will find (4) raised moldings with (2) notches. The rear and front of the floor panel have no notches. The notches are on the right and left sides of the floor.

  • Page 11: Assembly Instructions

    Figure 8 Rear Panel The rear panel is the panel with the buckles. The buckles are mounted on the outside of the rear panel. (see figure 9) Figure 9 Understanding The Difference Between The Inside And Outside Of The Rear Panel You will find the heat emitters on the inside of the rear panel.
  • Page 12 4. Wood cabin installation order: Floor Panel Front Panel Right Side Panel Left Side Panel Rear Panel Bench Emitter Panel Bench Roof Panel Roof Cover Tools Required: Philips Screwdriver and Ladder Installing the FLOOR PANEL Place the FLOOR PANEL on the floor. Some models have wood braces that must be installed on the underside of the FLOOR PANEL.
  • Page 13 Figure 11 Installing the FLOOR EMITTER PANEL (Carbon Models Only), BENCH EMITTER PANEL, BENCH, and REAR PANEL GRID (Ceramic Models Only) If your model is not equipped with the FLOOR EMITTER PANEL, then skip to 2. If your model is equipped with the FLOOR EMITTER PANEL, then place it on the floor towards the front of the sauna.
  • Page 14 Figure 14 Installing the ROOF PANEL The side with the power supply box faces upward. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the REAR PANEL when you set the ROOF PANEL down onto the panels. Feed the wires through the holes in the ROOF PANEL.
  • Page 15 Connect the CTRL plug from the power supply to the CTRL plug from the control panel. Then screw together. Connect the buzzer connection. (see figure 19) Figure 16 Figure 17 Figure 18 Figure 19 H. Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward.

  • Page 16: Operating The Sauna

    Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel. (see figure 21) Figure 21 Optional MP3 Shelf 1.
  • Page 17 Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on. Press the C/F button to choose between Celsius and Fahrenheit. Press the up/down arrows under the TEMPERATURE DISPLAY to adjust the temperature setting. Once you have set these adjustments to the desired settings, press the START/WORK button.

  • Page 18: Tips For Using Your Sauna

    Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...

  • Page 19: Safety Instructions

    the sauna with the door open slightly and let your body cool down. Once your body has cooled down and you feel comfortable, you can exit the sauna. After about twenty minutes and when your body has completely cooled down, you can take a shower to rinse the perspiration off your body. Safety Instructions 1.) Read and follow all instructions carefully before using the sauna.

  • Page 20: Safeguards For Your Sauna

    Safeguards For Your Sauna 1. Do not install the sauna near water, near a bathtub, near a shower, in a wet basement, or near a swimming pool. Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet before cleaning.
  • Page 21 3. Sauna Shows Signs Of No Power Solution: There could be one of a few problems causing this. First, check to see if the cord from the power supply is plugged into the wall outlet. Also check your main circuit breaker to confirm that it has not tripped.

  • Page 22: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.

  • Page 23: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
