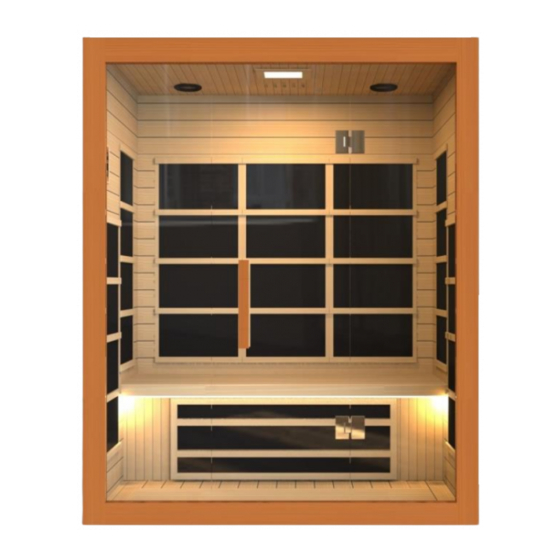

Dynamic Saunas DYN-6108-01 Owner's Manual
  1. Manuals
  2. Brands
  3. Dynamic Saunas Manuals
  4. Plumbing Product
  5. DYN-6108-01
  6. Owner's manual

Dynamic Saunas DYN-6108-01 Owner's Manual

1, 2, & 3 person far infrared saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

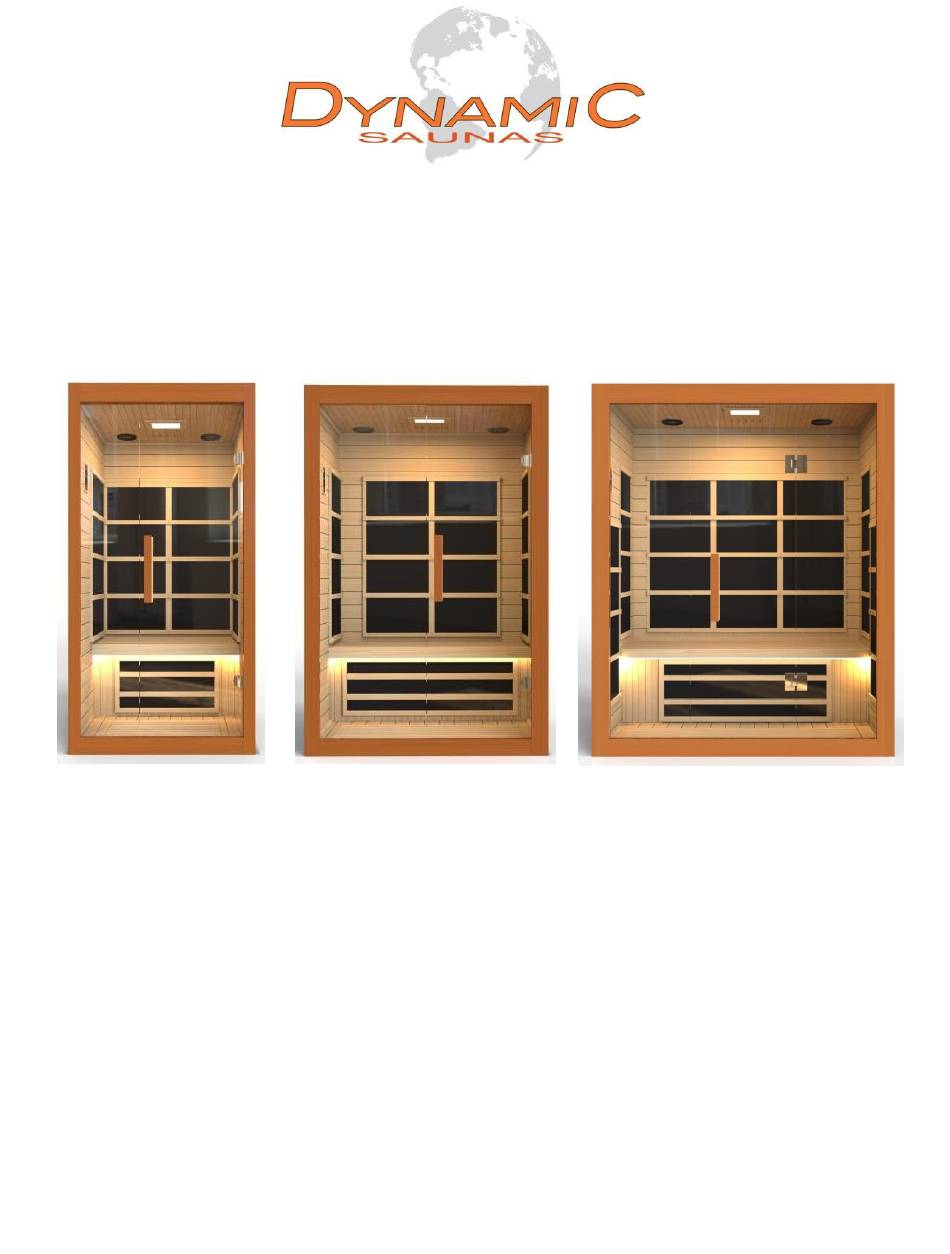

DYN-6108-01 / DYN-6208-01 / DYN-6308-01
1, 2, & 3 Person FAR Infrared Saunas
Owner's Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference.
(1&2 Person Models)
(3 Person Models)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN-6108-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic Saunas DYN-6108-01

Summary of Contents for Dynamic Saunas DYN-6108-01

  • Page 1 DYN-6108-01 / DYN-6208-01 / DYN-6308-01 1, 2, & 3 Person FAR Infrared Saunas Owner’s Manual CARBON MODEL SAUNAS SAUNAS ARE FOR INDOOR USE ONLY 120VAC 15AMP Dedicated Circuit Required (1&2 Person Models) 120VAC 20AMP Dedicated Circuit Required (3 Person Models) Carefully and thoroughly read this Owner’s Manual before using/operating the...
  • Page 2 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 Health Benefits Include, But Are Not Limited To: *Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Increases blood circulation *Cardiovascular conditioning *Clears rashes, acne *Reduces cellulite *Removes toxins and mineral waste *Reduces stress and fatigue *Enhances skin tone DISCLAIMER The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits based on research completed over the last 40 years from all around the world.
  • Page 4 as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the number of wave cycles each second. The lower the frequency of a field, the lower its energy. Power frequency fields are low frequency fields and have low energy levels. Microwave and x-ray fields are high frequency fields and have high energy levels.
  • Page 5 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* DYN-6108-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 4...
  • Page 6 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* DYN-6208-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 5...
  • Page 7 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* DYN-6308-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 6...

  • Page 8: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using your Sauna Safety Instructions Safeguards for your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 9: Parts Description

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION DYN-6108-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 8...
  • Page 10 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION DYN-6208-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 9...
  • Page 11 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION DYN-6308-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. Page 10...
  • Page 12 Power Supply (Control Box) The POWER SUPPLY is the control center of the sauna room. It is installed on the topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1) Figure 1 POWER IN - main power of the sauna room HT1, HT2, HT3, HT4, HT5, HT6 –...
  • Page 13 III. MP3 Auxiliary Port The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the auxiliary function to the speakers in the sauna room for your listening pleasure. (see Figure 2) Figure 2 Buckles External Buckles The external buckles are used to connect the LEFT and RIGHT SIDE PANELS to the REAR PANEL.
  • Page 14 Figure 4 Panel Descriptions For easier assembly, please understand and distinguish the differences between each panel. Floor Panel When the FLOOR PANEL faces upward, you will find the floor heat emitter(s) on the topside of the FLOOR PANEL. (see Figure 5) Understanding the Difference Between the Top and Bottom of the Wall Panels The (4) panels are in the upright position when the moldings are at the...

  • Page 15: Assembly Instructions

    Rear Panel The REAR PANEL is the panel with the buckles. The buckles are mounted on the exterior side of the REAR PANEL. (see Figure 6) Figure 6 Understanding the Difference Between the Inside and Outside of the Rear Panel You will find the heat emitters on the inside of the REAR PANEL.
  • Page 16 2. Installing the FLOOR PANEL A. Place the FLOOR PANEL onto your floor where the sauna is to be assembled. The side with the floor heat emitter panel will be facing up and the floor heat emitter cord will be towards the left rear of the sauna. (see Figure 7) Figure 7 3.
  • Page 17 Figure 11 5. Installing the REAR PANEL A. Place the REAR PANEL up against the FLOOR PANEL. You may need to open up the RIGHT SIDE PANEL and LEFT SIDE PANEL to fit the REAR PANEL between the two. Please note that the REAR PANEL will fit with the RIGHT SIDE PANEL and LEFT SIDE PANEL like a puzzle as it inserts into both side panels.
  • Page 18 Figure 13 Figure 13a Figure 14 7. Installing the FRONT GLASS DOOR HANDLE A. Next, the inner and outer door handles need to be mounted to the FRONT GLASS DOOR. The natural finish side will be the interior door handle portion and the one with the stain finish will be the exterior door handle portion.
  • Page 19 9. Connecting the plugs on the ROOF PANEL A. Connect the plugs according to their respective labels. (see Figure 16) B. You will need to connect the right and left speaker connectors, the MP3 connector, and the CTRL (Panel Control) harness wire connector. (see Figure Before Connecting Figure 16 After Connecting...
  • Page 20 Figure 18 Please Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR (inside the Accessory Box) in the case that the TEMPERATURE SENSOR is damaged during transit. The manufacturer decides this according to sauna models and packaging. 11. Installing the ROOF DUST COVER (optional) A.

  • Page 21: Operating The Sauna

    Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY (including the power cord), HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly and are snug and tight. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 22 1. Plug the sauna into the wall outlet. 2. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 151 F / 66 C, and the control panel will flash. 3.
  • Page 23 color therapy lighting system . Press the READING LIGHT button on the sauna control panel. The white light will come on. While pointing the remote at the ceiling light, you can press any of the colors on the remote and that color will be displayed. You can use the SHADE button on the remote to go through a sequence of colors.

  • Page 24: Tips For Using Your Sauna

    A. Celsius and 122 degrees Fahrenheit / 50 degrees Celsius. The way the sauna room works is when you set the Control Panel to say 120 degrees F / 49 degrees C, the heat emitters will turn off when that set temperature is reached.

  • Page 25: Safety Instructions

    Safety Instructions 1. Read and follow all instructions carefully before using the sauna. 2. When assembling and using the electrical equipment, safety precautions should always be followed. 3. To reduce the risk of injury, do not allow children to use the sauna unless they are closely supervised at all times by an adult.

  • Page 26: Safeguards For Your Sauna

    certified electrician. If the power cord is damaged, please contact Customer Support. 16. Do not use the sauna during an electrical storm to avoid risk of shock or injury. 17. Do not continuously switch the power ON and OFF excessively as it will compromise the life of the electrical components.

  • Page 27: Troubleshooting Guide

    5. Do not use any wall receptacle adapter or extension cord between the sauna cord and wall outlet. If an extension cord must be used, please have a certified electrician make one that is as short as possible. Make sure it is routed so as to not cause a safety issue, such as individuals tripping over it.
  • Page 28 “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna. Then go to the control panel and press the power button. If the heat emitters now have heat, then the “TEMP SENSOR” was the cause of the problem.
  • Page 29 panel, then the power supply may need to be reset. Go to the roof of the sauna and locate the power supply. Press the RESET button to reset the power supply. The RESET button is on the same side of the power supply as the power cord.
  • Page 30 2. Remove the exterior wood frame around the exterior control panel. Simply unscrew the screws holding the wood frame on. 3. Once the wood frame has been removed, lift the control panel up and out. On the backside of the control panel, you will see a connection plug.
  • Page 31 7. Speaker Noise Solution: If you are hearing a humming noise from either speaker or both speakers while the Bluetooth feature is connected with your musical device, then there may be an issue with the control panel(s). To confirm this, please connect your musical device using the MP3 AUX wire that came with the sauna room to connect your musical device to the sauna speaker system.
  • Page 32 and time to 90 minutes. Record the starting/beginning temperature and the temperature after 15 minute intervals up to 90 minutes (do not enter the unit or open the door during this test). If the sauna room goes above 130 degrees F (usually after about 40 to 50 minutes of preheating with a beginning temperature above 70 degrees F) at any given time, then we know that the heat emitters are working successfully.

  • Page 33: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 34 PAGE INTENTIONALLY LEFT BLANK Page 33...

  • Page 35: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
