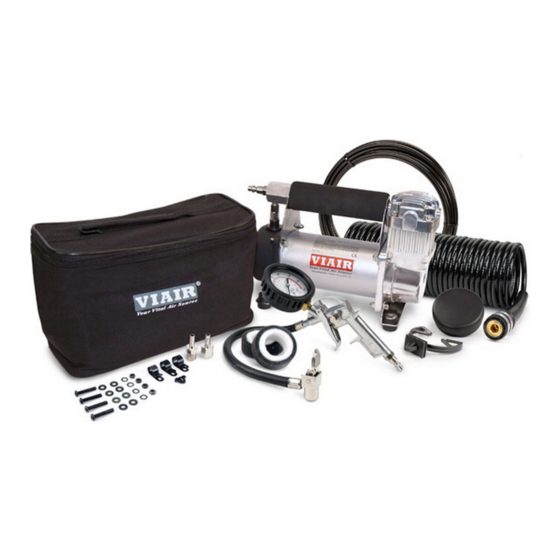

400H-A – HARDMOUNT AUTOMATIC AIR COMPRESSOR KIT
450H-A – HARDMOUNT AUTOMATIC AIR COMPRESSOR KIT
It is essential that you and any other operator of this
product read and understand the contents of this manual
before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
PART NO. 40041
PART NO. 45041
IMPORTANT:
USER MANUAL
400H-A
450H-A
Advertisement
Table of Contents
Related Manuals for VIAIR 400H-A
Summary of Contents for VIAIR 400H-A
- Page 1 400H-A – HARDMOUNT AUTOMATIC AIR COMPRESSOR KIT PART NO. 40041 450H-A – HARDMOUNT AUTOMATIC AIR COMPRESSOR KIT PART NO. 45041 400H-A 450H-A IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product.
- Page 2 400H-A - 450H-A Hardmount Automatic Air Compressor Kit IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in an area where it can fall or be pulled into water or other liquid. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-volt DC systems only. - This product should never be left unattended during use. WARNING - To prevent injury: - Never allow children to operate this compressor. Close supervision is necessary when this compressor is being used near children.
- Page 3 4. Mount the air compressor with the four sets of bolts, nuts, washers, and locking washers provided. (See Fig. 2 for Mounting Instructions). Use of thread sealant is recommended. 5. Attach ground wire to the negative post of the battery or chassis grounding point. Check to make sure that the air compressor’s ON/OFF switch is in the OFF position. Attach positive wire to positive terminal of the battery. 6. Re-check to make sure that all connections are made securely. (Fig. 1) 400H-A/450H-A Hardmount Automatic Air Compressor Kit Installation Parts List: A. Mounting Bolts (4 pcs) G. Air Line Clips (3 pcs) B. Flat Washers (8 pcs) H. Screws (3 pcs) C. Locking Washer (4 pcs) I. Remote Inlet Air Filter with Filter Element (1 pc) D. Nuts (4 pcs)
- Page 4 400H-A - 450H-A Hardmount Automatic Air Compressor Kit OPERATING INSTRUCTIONS (continued) can cause permanent damage to the unit - this compressor is equipped with built-in pressure switch with a factory set cut-on pressure of 130 PSI (± 5%) and a factory set cut-off pressure of 155 PSI (± 5%). During inflation of tire pressures between 130 PSI to 155 PSI, if you stop inflation, the compressor may not restart. This is completely normal, since inline pressure is greater than cut-on pressure of the pressure switch and less than cut-off pressure of the pressure switch. To restart compressor, deflate tire pressure to below 130 PSI, reconnect tire chuck to tire valve stem and resume tire inflation 6. ONLY OPERATE THE AIR COMPRESSOR IN WELL-VENTILATED AREAS. 7. Compressor performance is also enhanced when operating compressor with vehicle’s engine running. TIRE INFLATION This air compressor comes with 1/4” quick connect stud. An extension coil hose and a tire inflation gun are also included with your compressor. Each end of the extension coil hose is equipped with a 1/4” quick connect coupler. The tire inflation gun comes with a 1/4” quick...
- Page 5 400H-A - 450H-A Hardmount Automatic Air Compressor Kit INLINE PRESSURE GAUGE (continued) 5. Use heat-resistant, minimum 200 PSI-rated working pressure extension hose. Do not use aftermarket hoses with less than 200 PSI working pressure. Some aftermarket hoses may not be suitable for use with this air compressor due to heat and pressure typically generated by this type of air compressors. MAINTENANCE & REPAIRS 1. Periodically check all electrical and fittings connections. Clean and tighten or repair as needed. 2. Periodically check all mounting bolts. Tighten as needed. 3. Replace air filter element periodically. Replacement frequency depends on operating frequency and operating environment. For frequent use in dusty environment, we recommend that you...
- Page 6 400H-A - 450H-A Hardmount Automatic Air Compressor Kit COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES MAX. WORKING DUTY CYCLE PRESSURE (100 PSI @ 72°F) 090 SERIES 120 PSI 9% 092 SERIES 120 PSI 9% 095 SERIES 120 PSI 9% 097 SERIES 130 PSI 10% 098 SERIES 130 PSI 10% 100 SERIES 130 PSI...
- Page 7 400H-A - 450H-A Hardmount Automatic Air Compressor Kit TROUBLESHOOTING GUIDE: PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION Compressor runs 1. Excessive air usage 1. Decrease air usage continuously and air flow 2. Loose connections 2. Check all connections with lower than normal 3. Worn piston ring or inlet valve. soap and water solution 4. Clogged air filter element and tighten. 3. Replace compressor 4. Replace air filter element Compressor runs 1. Faulty pressure switch 1. Replace pressure switch...
- Page 8 400H-A - 450H-A Hardmount Automatic Air Compressor Kit AMERICAN WIRE GAUGE GUIDE 12-VOLT: Length of wire from battery to compressor (in feet) Amp Draw 8 Wiring Diagram: (Fuse Not Included) LIMITED WARRANTY: VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from its original date of purchase. To receive warranty service or repair, please contact VIAIR Corporation. Returns should be made within one year of the date of purchase, after a Return Goods Authorization (RGA) number has been assigned by VIAIR Corporation. To obtain RGA, fax a copy of your receipt to (949) 585-0188. For complete warranty details, please visit: www.viaircorp.com/warranty PLEASE NOTE: THIS WARRANTY COVERS PRODUCT DEFECTS ONLY; IT DOES NOT COVER INCIDENTAL OR CONSEQUENTIAL DAMAGES AS RESULT OF MISUSE OR ABUSE. This Manual is proprietary to VIAIR Corporation and no ownership rights are hereby transferred. No part of the Manual shall be used, reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR. VIAIR does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of the Manual. Users must be aware that updates and amendments will be made from time to time to the Manual. It is the user’s responsibility to determine whether there have been any such updates or amendments. Neither VIAIR nor any of its directors, officers, employees...
