Cable Pulling Principles (cont'd)
Cable Pulling Forces (cont'd)

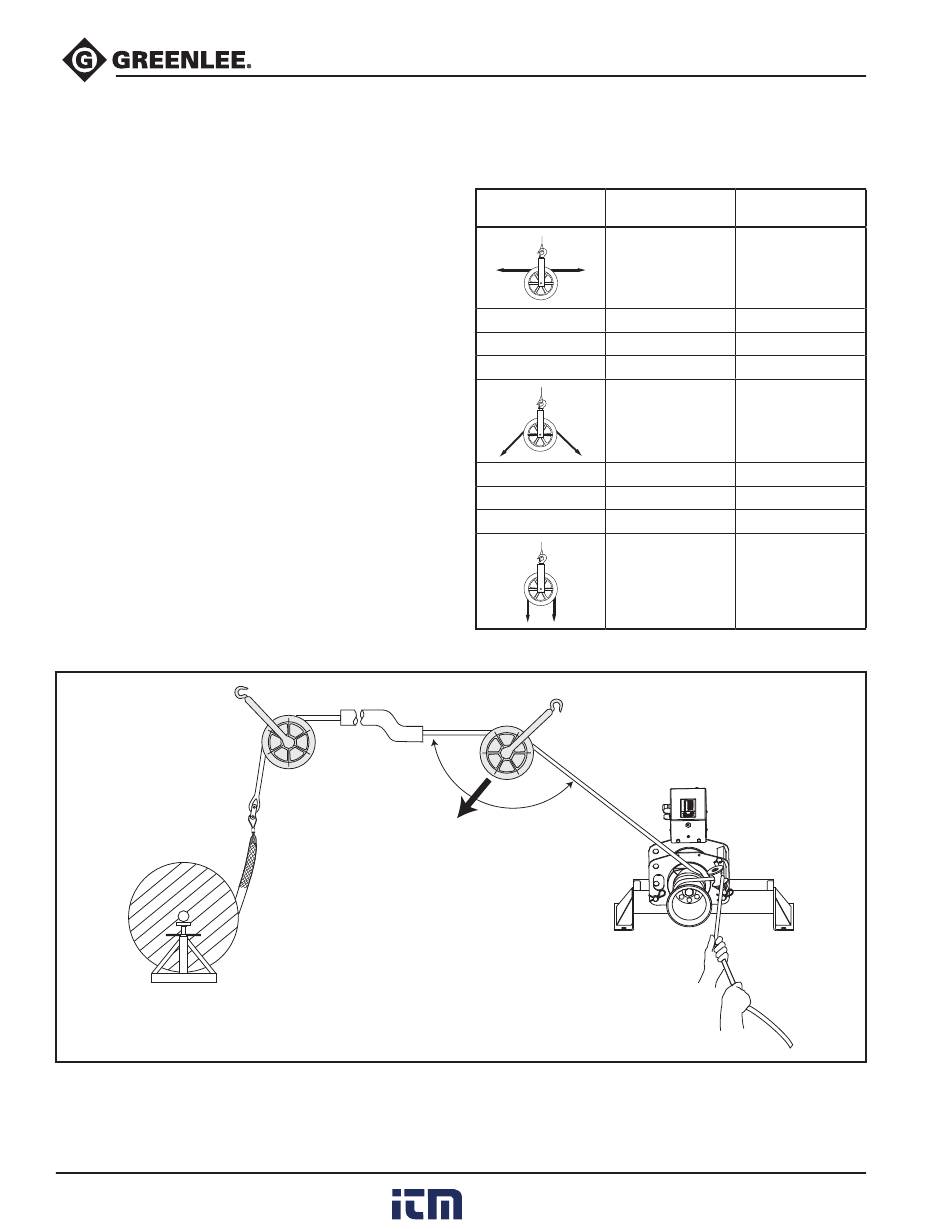

At the Sheaves
Sheaves are used to change the direction of the pull.
A change in direction creates a new resultant force
that may be greater than the cable puller's maximum
pulling force. This new resultant force exerts itself on the
sheaves, sheave anchoring system, and support struc-
tures illustrated.
The resultant amount of force depends on the angle of
the change in direction. A brief table is provided here;
For details on calculating the resultant force for any
angle, refer to IM 1363 (99929988).
Greenlee Tools, Inc.
1.800.561.8187
®
Ultra Tugger 10 Cable Puller and Pulling Packages
Resultant Force Table
(35.6 kN or 8,000 lb Pulling Force)
Resultant Force
27.4 kN (6160 lb)
Typical Resultant Force at Sheave
