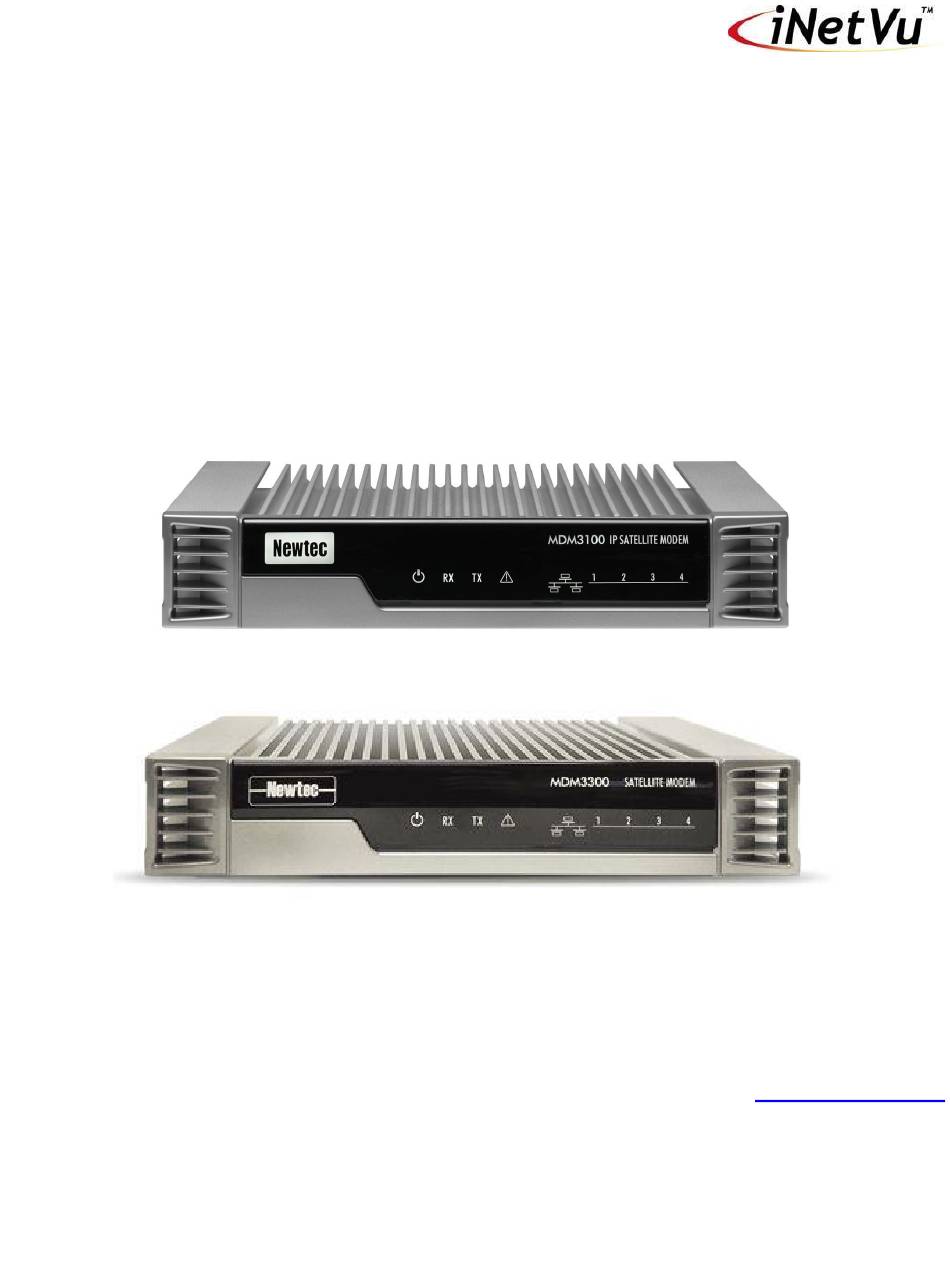

- Page 1 Newtec MDM3X00 and the iNetVu® 7000 Series Controller 1-877-iNetVu6 www.c-comsat.com Revision 5.0 August 29, 2018...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
-
Page 3: Safety And Warning Information
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 Safety and Warning Information For your safety and protection, the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation. -
Page 4: System Overview
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 System Overview ™ The iNetVu Mobile Satellite Internet system is an automatic scanner, polarizer and beam positioning system for a foldable two-way satellite antenna. It has been designed to automatically find and acquire the satellite beam and the position based on both a GPS position reading as well as other positioning parameters. -
Page 5: Pre-Configuration Check List
Note: The modem will arrive having been already pre-pointed and executed by the integrator/service provider. If the pointing procedure has not been already executed contact your service provider or refer to the Newtec User Manual for pointing procedure. Service Type... - Page 6 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 1.4 Modem Configuration & Validation Refer to Newtec Quick Start for pointing instructions as antenna will need to be pointed before continuing with this section. 1. Log into the Modem Web GUI, IP address should have been provided by the service provider.
- Page 7 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 5. Select the correct ODU and click the confirm button. 6. Select and Confirm Spot Beam, as provided by your service provider. C-COM Satellite Systems Inc. Page 7...
- Page 8 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 7. Confirm and ensure that the ACU TCP Port is configured for 2002 and the ACU IP is on the same subnet as the Terminal for successful ACU to Terminal OpenAMIP communication.
- Page 9 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 10. Verify ODU RX and TX parameters include your settings. If parameters are incorrect, edit or add the correct settings. 11. Once the settings have been validated, the system is now ready to communicate with the iNetVu 7000 Controller.
- Page 10 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 1.5 General All iNetVu™ Mobile Systems have been fully tested with the iNetVu ™ 7000 Controller prior to shipment. All position feedback; limit sensing, limit switches and motor speeds have been calibrated and preset prior to shipping.
- Page 11 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 System Wiring with Newtec Service Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Power Cable Sensor Motor Cable Cable Antenna MDM3100 POWER PASS *Ground protection RX IN USB Cable...
- Page 12 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Power Cable Sensor Motor Cable Cable Antenna RX IN MDM3100 *Ground protection RX OUT USB Cable 24 VDC Input 100 - 240 VAC (option) ®...
- Page 13 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 Controller Configuration and Verification Test Once the system wiring is complete and the network configuration on your PC is configured, you are required to configure the system parameters for the following before satellite acquisition: Communication Method between IMS and iNetVu®...
-
Page 14: Tips And Recommendations
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 Tips and Recommendations The user has the option to search for satellite using the following methods depending on what is available to you: ❖ DVB search and or Reference Satellite Using a Known DVB Carrier ❖... - Page 15 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 Software Setup and Initial Configuration Procedure with Newtec Service 1. If you are using the network interface to communicate with the 7000 Controller, set the PC/Notebook to the same network as the 7000 Controller.
- Page 16 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 5. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.
-
Page 17: Software Installation And Configuration
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 1.10 Software Installation and Configuration Please Note: Do not connect the Controller via USB until the drivers and software have been installed 1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP/KB, run the iNetVu7000Setup.exe file. - Page 18 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 3. Install the FTDI USB Drivers and iNetVu USB Drivers. Both are required. Click “Extract” Click “Next” Click “Finish” 4. Continue through the USB Driver Installation Wizard. Click “Next” Click “Finish” C-COM Satellite Systems Inc.
- Page 19 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 5. Now that the drivers and software package has been installed, connect the iNetVu 7000 Controller via USB to your PC. 6. Windows XP users will have to follow the new hardware wizard and let windows automatically install the drivers.
- Page 20 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 1.11 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
- Page 21 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 3. Follow the on screen instructions to update the controller firmware. Once complete the wizard will resume. 4. You may wish to continue through the wizard to complete the controller configuration or verify the settings.
- Page 22 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 5. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
- Page 23 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 6. Complete the Service Information, and IP Configuration sections, set to Newtec as the Service Type. After changes have been made please click “Next” to continue. Service Information Type: Newtec Interface: AMIP...
- Page 24 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 7. The Satellite Parameters, DVB Settings and Search Method will be auto configured based on modem parameters. No changes are needed. Click Finish to complete the setup. C-COM Satellite Systems Inc. Page 24...
- Page 25 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3X00 8. Once completed you will be able to save changes by selecting Yes, or select No to return to the previous screen to make additional changes. 9. Congratulations you have configured your iNetVu Controller.
