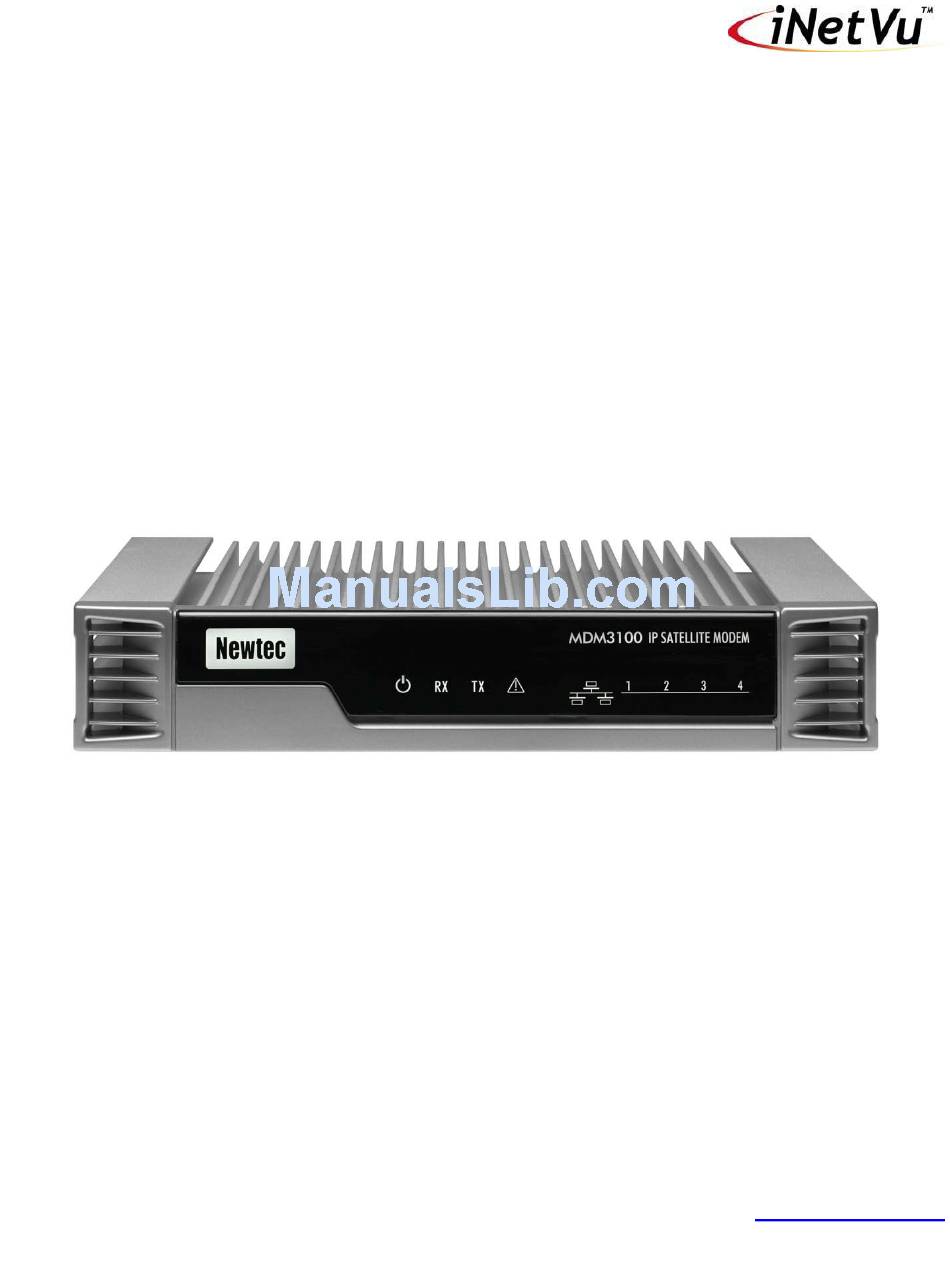

- Page 1 Newtec MDM3100 and the iNetVu® 7000 Series Controller 1-877-iNetVu6 www.c-comsat.com Revision 3.0 October 23, 2015...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
- Page 3 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Safety and Warning Information For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation.
-
Page 4: System Overview
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 System Overview ™ The iNetVu Mobile Satellite Internet system is an automatic scanner, polarizer and beam positioning system for a foldable two-way satellite antenna. It has been designed to automatically find and acquire the satellite beam and the position based on both a GPS position reading as well as other positioning parameters. - Page 5 Note: The modem will arrive having been already pre-pointed and executed by the integrator/service provider. If the pointing procedure has not been already executed contact your service provider or refer to the Newtec User Manual for pointing procedure. Service Type...
- Page 6 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 1.4 General All iNetVu™ Mobile Systems have been fully tested with the iNetVu ™ 7000 Controller prior to shipment. All position feedback; limit sensing, limit switches and motor speeds have been calibrated and preset prior to shipping.
- Page 7 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 System Wiring with Newtec Service Motor Control Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Power Cable Sensor Motor Cable Cable Antenna MDM3100 POWER PASS *Ground protection RX IN USB Cable...
- Page 8 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Motor Control Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Power Cable Sensor Motor Cable Cable Antenna RX IN MDM3100 *Ground protection RX OUT USB Cable 24 VDC Input 90 - 264 VAC (option) ®...
- Page 9 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Controller Configuration and Verification Test Once the system wiring is complete and the network configuration on your PC is configured, you are required to configure the system parameters for the following before satellite acquisition: Communication Method between IMS and iNetVu®...
- Page 10 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Tips and Recommendations The user has the option to search for satellite using the following methods depending on what is available to you: DVB search and or Reference Satellite Using a Known DVB Carrier ...
- Page 11 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Software Setup and Initial Configuration Procedure with Newtec Service 1. If you are using the network interface to communicate with the 7000 Controller, set the PC/Notebook to the same network as the 7000 Controller.
- Page 12 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 5. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.
-
Page 13: Software Installation And Configuration
INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 Software Installation and Configuration Please Note: Do not connect the Controller via USB until the drivers and software have been installed 1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP/KB, run the iNetVu7000Setup.exe file. - Page 14 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 3. Install the FTDI USB Drivers and iNetVu USB Drivers. Both are required. Click “Extract” Click “Next” Click “Finish” 4. Continue through the USB Driver Installation Wizard. Click “Next” Click “Finish” C-COM Satellite Systems Inc.
- Page 15 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 5. Now that the drivers and software package has been installed, connect the iNetVu 7000 Controller via USB to your PC. 6. Windows XP users will have to follow the new hardware wizard and let windows automatically install the drivers.
- Page 16 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 1.10 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
- Page 17 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 3. Follow the on screen instructions to update the controller firmware. Once complete the wizard will resume. 4. You may wish to continue through the wizard to complete the controller configuration or verify the settings.
- Page 18 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 5. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
- Page 19 Type: Interface: The Newtec Modem has not been fully integrated with our controller. Currently the best method is to use NA as the service type. In this case a valid DVB Carrier is required to find satellite. C-COM Satellite Systems Inc.
- Page 20 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 7. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each selection for a detailed description. Click Finish when complete. Satellite Parameters: Longitude: Satellite you will be searching on Receive Polarity (Vertical or Horizontal)
- Page 21 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 8. Once completed you will be able to save changes by selecting Yes, or select No to return to the previous screen to make additional changes. 9. Congratulations you have configured your iNetVu Controller.
- Page 22 INETVU® MOBILE SYSTEM QUICK START – NEWTEC MDM3100 10. Log into Modem web interface (http://192.168.1.1) and maneuver to Terminal Installation. Verify the correct Outdoor Unit (Antenna and BUC) for your configuration is selected. Refer to modem provider User Manual. •...
