5.2

Status Bar

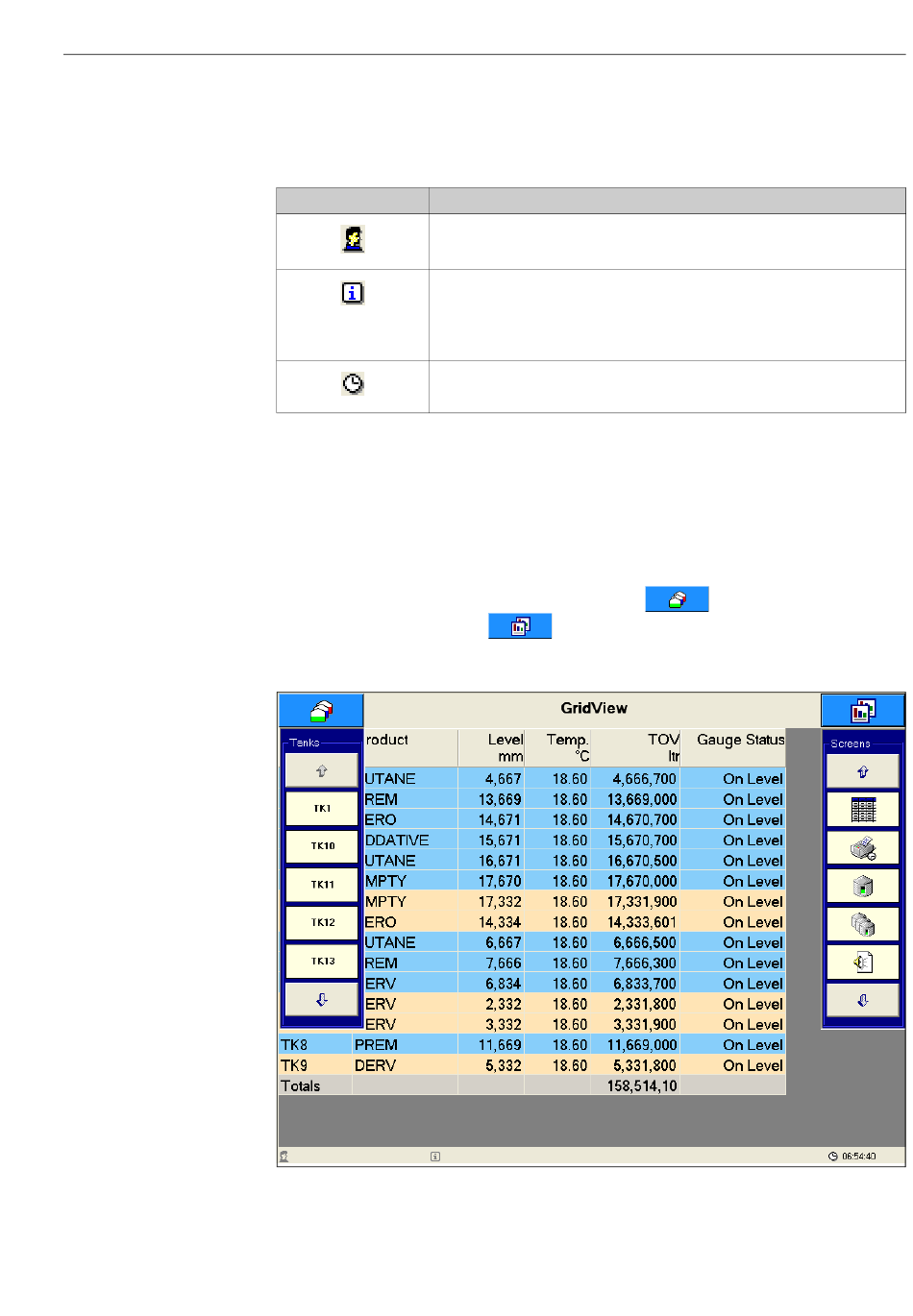

At the bottom of the Multi Scan NXA83 display screen is a status bar which will display the
following information:
Field Description
This field will show the currently logged in user account
NXA83_Display_Field_User
This field shows any information that is current to the system. This could include
such messages as:
• Watchdog Disabled
NXA83_Display_Field_Info
• W&M Approved
• W&M Unsealed (i.e. no longer approved)
This shows the current time
NXA83_Display_Field_Time
5.3

Display Navigation

There are a number of screen types that may be displayed:
• GridView
• Single Tank
• Multi Tank
• Report
Navigation between these screens is via two buttons,
will open the Tanks menu and
menu.
Click on a button to display the menu list. Clicking on the button again will remove the list.
Each drop down list will display up to five items.
in the top left of the screen
in the top right of the screen will open the Screens
Operation
NXA83_Display_Grid-View_Both-Menus
11
