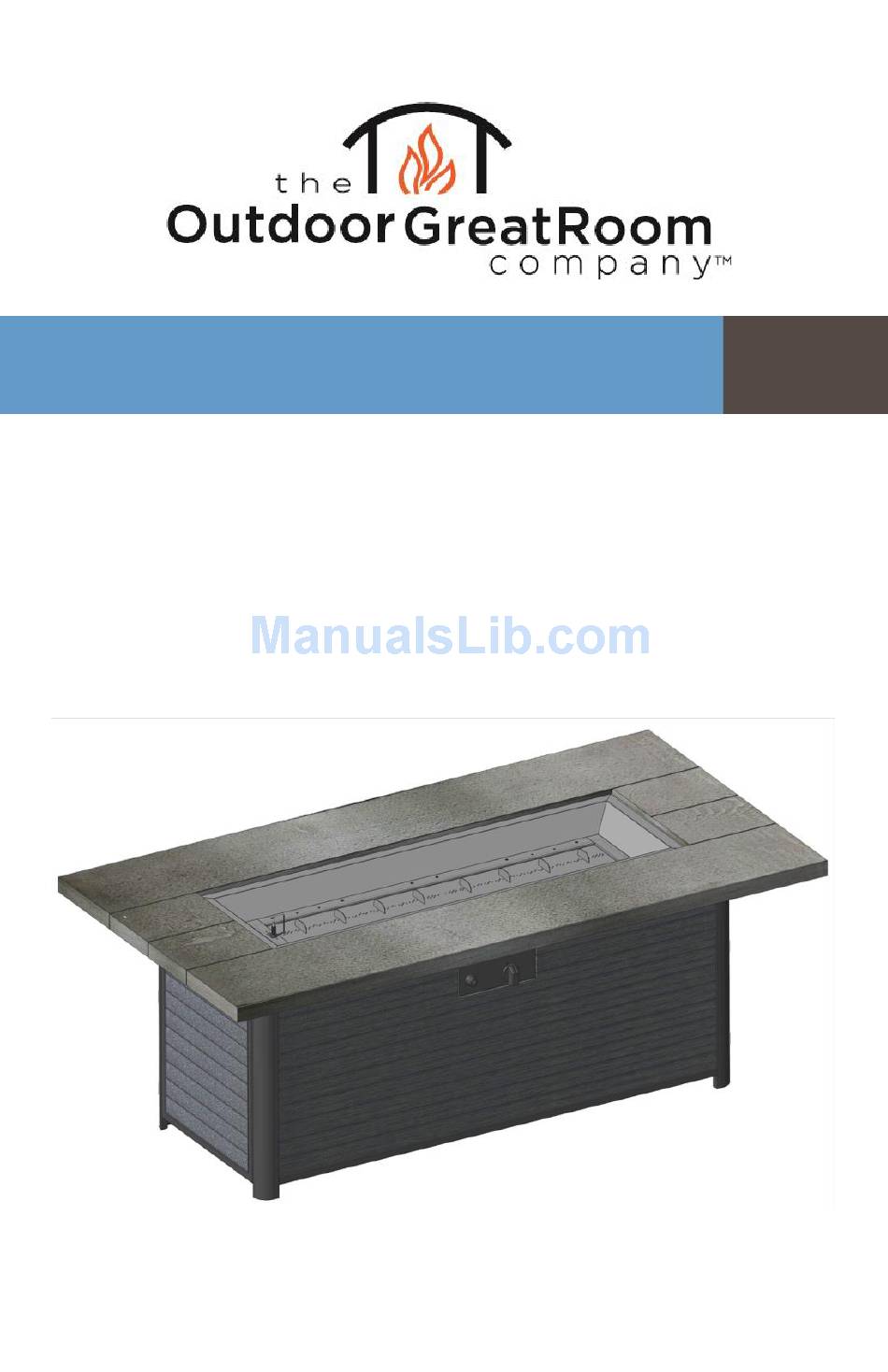

Cedar Ridge Fire Pit Table
Installation Instructions for Cedar Ridge Fire Pit Table
CR-1242
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CR-1242 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outdoor GreatRoom Company CR-1242

  • Page 1 Cedar Ridge Fire Pit Table Installation Instructions for Cedar Ridge Fire Pit Table CR-1242...
  • Page 2: Table Of Contents

    IMPORTANT Contents Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner Required Tools…………………………….…..2 installation including: lighting and operating instructions, safety Included with your Fire Pit……………….3 information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CF-1242 BURNER WITHOUT FIRST Assembly Instructions………………….………4 CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
  • Page 3: Included With Your Fire Pit

    Included with your Fire Pit Gas Valve Kit TOUCH PAINT Bolt Caps Touch-up M6 Allen [X 4] Paint [X 1] Wrench [X 1] Mounting Gas Valve (x1) screws (x2) Bolt A [X 4] Bolt B [X 4] Control knob M6X20 M6X35 (x1) Bottom...
  • Page 4: Assembly Instructions

    Assembly Instructions Included with your Fire Pit 1. Unpack the fire pit table contents from the box, and remove individual packaging from each piece. A. 4 Fasteners 2. Lay Panel A on soft, flat surface. B. 4 B-Bolts 3. Position Center Support on Panel A. NOTE: it is very important to place the Center Support exactly as shown in C.
  • Page 5 4. Stand up Panel A and use 2 more Bolt 5. Use Bolt B (x4) to attach A to attach Center Support to Panel B. Panel C as shown. Panel C 6. Attach Access Door.
  • Page 6 Hold the Gas Valve in place from behind the control panel while inserting the two included screws. Use a Philips screwdriver to fasten. Attach control knob by pressing on to the valve stem. Insert screws included with Gas Valve Kit Press on to stem 8.
  • Page 7: Gas Connections

    Gas Connections Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe dope on flare fittings. 1. Reach inside the burner cut-out and attach natural gas supply line using a 3/8”...
  • Page 8 3. Set Burner into the fire pit base exactly as shown and make final gas connection to the Control Panel. Igniter Igniter Access Door TIGHTEN CONNECTION SECURELY WITH WRENCH  Metal flex line to burner ONLY...
  • Page 9: Igniter Installation

    Igniter Installation 1. Make sure the valve is in the OFF position before beginning. 2. Install sparker as shown, using a AAA battery (not included). Negative end should be placed inside the CF-SPARKER, positive end outside of the CF-SPARKER. Sparker will not operate correctly without an ignition and ground wire attached.
  • Page 10: Glass Installation

    Glass Installation 1. Scatter all of the included Glass Beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT GLASS BEADS OR OTHER DECORATIVE MEDIA PRESENT DO NOT OPERATE CRYSTAL FIRE BURNER WITH SUPERCAST BURNER COVER IN PLACE...
  • Page 11: Position Your Tank

    After installing igniter and making gas connections, verify that all connections are tight and that no leaks are present using a solution of soapy water or a commercially available leak-check solution. Position Your Tank (if applicable) 1. Remove door, connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH) and slide the propane tank past the dotted line to ensure the door closes properly.
  • Page 12 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CF-1242 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE OWNER’S MANUAL.
