Summary of Contents for Sunjoy L-PG169PST-1A

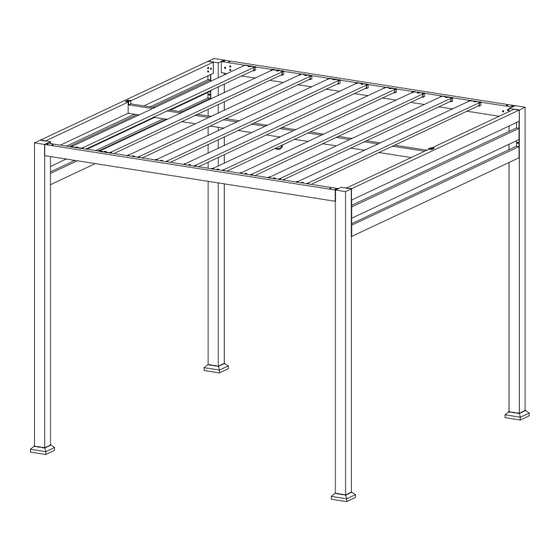

- Page 1 8'x8' Pergola with Solid Slats _ Lars Style# L-PG169PST-1A DPCI# 009050547 Production No.: XXXXXXXX Assembly Instructions...
-
Page 2: Safety Information
Safety Information 1. Two people are required for this assembly. 2. Some parts may contain sharp edges. Wear protective gloves. 3. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. -
Page 3: Parts List
Parts List P11141C01108 Post 1 P11142C01108 Post 2 P11571A01108 Base Cover P11683A01108 Base P11064A01108 Cross Beam 1 P11063A01194 Cross Beam 2 P11059E01194 Cross Beam 3 P13012C01194 Top Small Beam 1 P13013C01194 Top Small Beam 2 P12601A01108 Hook Assembly Instructions... -
Page 4: Hardware Pack
Hardware Pack H02020C11 M6X20 Bolt 28 PCS H19001C11 M6 Washer 28 PCS H13001C11 M6 Spring Washer 2 PCS H0200D11 M8X20 Bolt 48 PCS H19001D11 M8 Washer 48PCS H13001D11 M8 Spring Washer 48 PCS Stake ￠8*180 P12401A0100 8 PCS H0001C12 M6 Wrench 1 PC H0001D12 M8 Wrench... - Page 5 Assembly Instructions...
- Page 6 Fig.2: Attached Cross Fig.1: Insert Base Cover (C) into Fig.3: Attached Cross Beam 1 (E) Beam 2(F1) to Post (B) by Bolt Post (A, B), then fix Base (D) to to Post (B) by Bolt (DD), Spring (DD), Spring Washer (FF) and Post (A, B) by Bolt (AA) and Washer (FF) and Washer (EE).
- Page 7 Assembly Instructions...
- Page 8 Fig.5: Attached the Top Small Fig.6: Put The Top Small Beam Fig.4: Attached the Hook (I) Beam 2 (H) to Cross Beam 2(F1) 1(G)’s end into the U-shaped on to Top Small Beam 2 (H) by Bolt (AA), Spring Washer the side of Cross Beam 1(E) (Big (CC) and Washer (BB).
