For technical assistance or replacement parts call Sunjoy Monday through Friday from 8:30am to 5:30pm ET.
US: 1-866-578-0101 Canada: 1-866-532-9557 (English and French) or email service@ferro-works.com.
NOTE: Please read instructions prior to assembly. It is recommended to use 8 people for assembly.
When assembling and using this product, basic safety precautions should always be followed to reduce the
risk of personal injury and damage to equipment.
For outdoor use only.
Keep instructions for future reference.
Ground stakes are included for use on dirt and grass.
Check all bolts for tightness before and during usage.
WARNING: Assemble as per instructions only. Do not alter the construction of the pavilion. Children and pets
should be supervised when they are in area of the pavilion.
Notes before assembly: Permanent installation recommended. For ease of cleaning and safety, do not
assemble less than 6 ft / 1.8 m from any obstruction such as a fence, garage, house, overhanging branches,
laundry line or electrical wires. Install on level ground. To ensure safe use of this pavilion, it may be necessary
to install the pavilion permanently into poured concrete blocks or railroad ties or similar using suitable bolts.
Consult a qualified contractor or representative at your local hardware store or home center.
Please check your local regulations prior to permanently installing this item. Some municipalities have
restrictions and requirements.

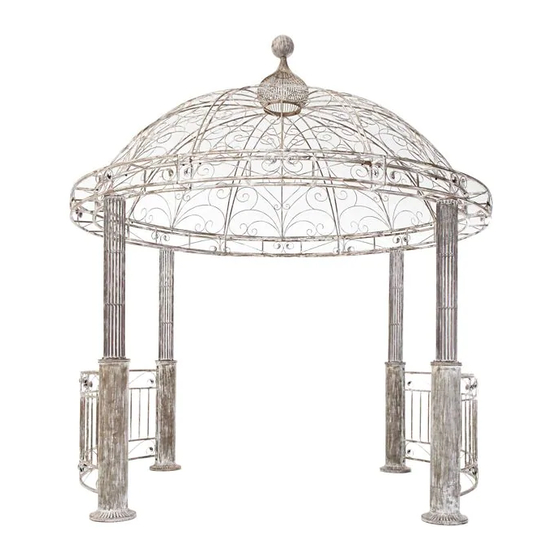

Garden Pavilion
ITM./ART. 428992
Assembly Instructions
L-PG050PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-PG050PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-PG050PST

  • Page 1 Assembly Instructions L-PG050PST For technical assistance or replacement parts call Sunjoy Monday through Friday from 8:30am to 5:30pm ET. US: 1-866-578-0101 Canada: 1-866-532-9557 (English and French) or email service@ferro-works.com. NOTE: Please read instructions prior to assembly. It is recommended to use 8 people for assembly.
  • Page 2: Parts List

    NOTE: Gently set parts on a level, non abrasive surface. Verify that there are no missing parts. Parts List : Hardware list: Part# Qty. Part Des. Diagram Part# Qty. Part Des. Diagram M8x20 Bolt Bottom Pole M8 Acorn Nut Upper Pole M8 Flat Washer M12 Nut Side Rail 1...
  • Page 3 ASSEMBLY INSTRUCTIONS PART 1: UPPER DOME ASSEMBLY Step 1: Assembly Instructions of Circular Rail Fig.1 Attach Top Rail 1 (D1) to Top Rail 2 (D2) with 4 Bolts (g), Flat washer (c) and Acorn Nut (b). See Fig. 1. The side with DOWN arrows should face down during assembly.
  • Page 4 PART 2: POLE AND FENCE ASSEMBLY Step 1: Assembly Upper Poles to Dome ( 8 people are needed for this step) Four people hold the 4 Upper Pole (B) in vertical position and using 4 people lift assembled dome over 4 poles. Insert the Upper pole (B) pre-attached bolt into the Top Rail (D2) and attach with Flat washer (e) and Nut (d).
  • Page 5: Part 2: Final Assembly

    PART 2: FINAL ASSEMBLY Step 1: Attach Side Rails to Poles Attach Side Rail (C1, C2) to Bottom Pole (A) with Bolts (a) and Flat Washers (c). See Fig. 7. Repeat for remaining 3 Bottom Poles (A). Fully tighten hardware. Fig.8 Fig.7 Fig.9...
  • Page 6: Care Instructions

    CARE INSTRUCTIONS Clean gently with environmentally-friendly soap solution and water using a sponge. Do not use abrasive materials, wire brushes, chemicals, cleansers or bleach. Do not use a pressure washer. Rinse well. Allow to air dry. If there are nicks, chips and scratches, go to your local hardware store or home center and obtain a closest match touch-up paint suitable for outdoor metal use.
