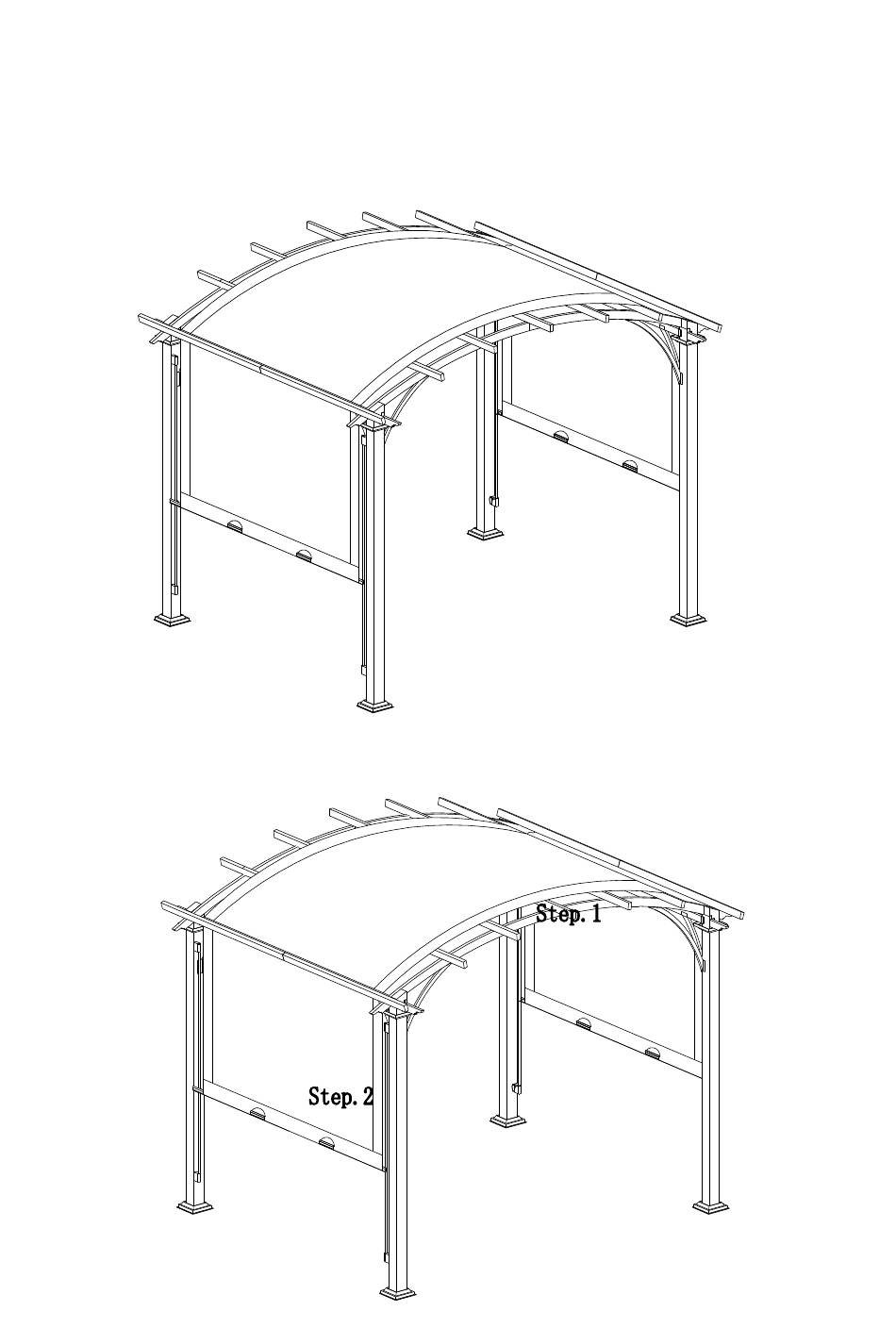

- Page 1 Verano Pergola Assembly Instructions Item# L-PG108PST-A SKU# 810326090...
- Page 2 Parts List Top beam 1 Top beam 2 Top arc beam 1 Top arc beam 2 Top arc beam connector Support beam 1 Support beam 2 Crossbeam decoration 1 Crossbeam decoration 2 Post decoration Post 1 Post 2 Base slice Base cover Short arc support 1 Short arc support 2...
- Page 3 Hardware Pack 1 M6x15 Bolt 114 PCS M6 Washer 132 PCS M6x45 Bolt 18 PCS Wrench 1 PC...
- Page 4 Fig.1: Put the base cover (H) onto post 1(E) or post 2(F). Attach the base slice (G) to the bottom of post 1(E) or post 2(F) by bolt (AA) and washer (BB). Fig.2: Put the post decoration (D3) to post (E, F) from top to bottom; Attach post decoration (D3) and crossbeam decoration (D1, D2) to post (E, F) by bolt (AA) and washer (BB).
- Page 5 Hardware Pack 2 M6 Washer 32 PCS M6x45 Bolt 4 PCS M6x15 Bolt 12 PCS M6x70 Bolt 16 PCS Φ8x180 Stake 16 PCS...
- Page 6 Fig.12: Insert fabric tube 1 (M) into fabric tube 2 (N) and fix them by bolt (DD) and washer (BB). Fig.13: Put the canopy (R) onto the top as showed in the picture on the first page. Insert the assembled fabric tube (M, N) into the hole of the canopy. Fig.14: Attach fabric tube connector (K) to the fabric tube (M, N) by bolt (DD) and washer (BB).
- Page 7 3. Warranty does not cover damage due to extreme weather conditions. CUSTOMER SERVICE Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
