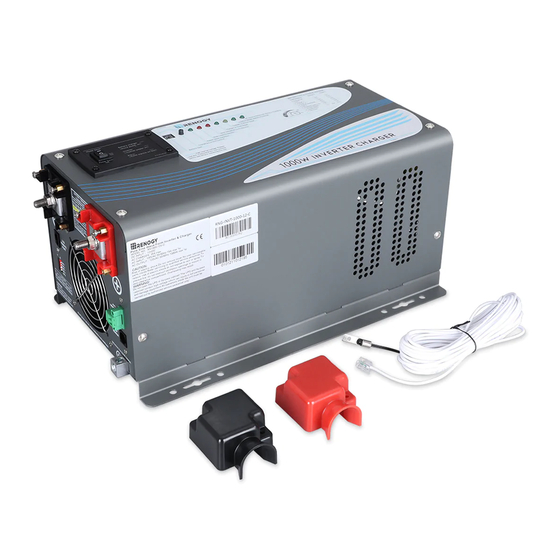

- Page 1 Pure Sine Wave Inverter Charger Renogy 1000W | 2000W | 3000W Pure Sine Wave Inverter Charger Manual 2775 E. Philadelphia St., Ontario, CA 91761 1-800-330-8678 Version 2.0...
- Page 2 Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the inverter. The following symbols are used throughout the manual: WARNING: Indicates a potentially dangerous condition. Use extreme caution when performing this task. CAUTION: Indicates a critical procedure for safe and proper operation of the inverter.
- Page 3 Battery Safety • Do let the positive (+) and negative (-) terminals of the battery touch each other. • Use only sealed lead-acid, flooded, or gel batteries which must be deep cycle. • Explosive battery gases may be present while charging. Be certain there is enough ventilation to release the gases.
-
Page 4: Table Of Contents
Table of Contents General Information......................5 Included Components ..................... 6 Additional Components ....................6 Identification of Parts (Top View) ..................8 Identification of Parts (AC Side) ..................9 Identification of Parts (DC Side) ..................10 Installation ........................10 Location Recommendations ..................11 Sizing a Battery Bank .................... -
Page 5: General Information
General Information The Renogy Pure Sine Wave Power Inverter Charger delivers superior performance for remote off-grid applications. The inverter is of pure sine wave capable of producing cleaner, smoother, and more reliable electricity for a user’s electronic needs. The inverter is also able to charger the battery bank when AC power is connected to the inverter. -
Page 6: Included Components
Included Components Battery Temperature Sensor (BTS) Renogy inverter chargers come equipped with a battery temperature sensor that will help prolong the battery life. The temperature sensor allows the inverter charger to continuously adjust the charging voltage based on the battery temperature. - Page 7 If commands from the two boards conflict with each other, the following priorities will automatically take place: Power Saver On > Power Saver Off > Power Off Both panels in the off position will power the inverter off. NOTE: When the inverter is in Battery-priority mode, finishes a complete charging cycle, and switches to inverter mode, “AC: Abnormal”...
-
Page 8: Identification Of Parts (Top View)
Identification of Parts (Top View) Main Battery Charger Switch Type Legend Board Current LED Indicator and Control Control Knobs Legend Main Control Switch (3 modes) Numerical Charging Battery Battery Current Type Type Control + Charge Selector Legend Value... -
Page 9: Identification Of Parts (Ac Side)
Identification of Parts (AC Side) Inverter Output Circuit GFCI Breaker Charger Input Circuit Breaker Terminal... -
Page 10: Identification Of Parts (Dc Side)
Identification of Parts (DC Side) Terminals DC Fan Auto Generator Start RJ45 LCD Remote Battery Temperature Sensor Port Switches Grounding Terminal Installation WARNING: Make sure inverter is in the off position before connecting anything. CAUTION: Do not over-torque or over tighten the terminals. This could potentially damage the unit CAUTION: Refer to the technical specifications for max wire sizes on the inverter charger and for the maximum amperage going through wires. -
Page 11: Location Recommendations
Location Recommendations WARNING: Never install the inverter in a sealed enclosure with flooded batteries. Gas can accumulate and there is a risk of explosion. Ensure installation follows the following guidelines: 1. Cool, dry, well-ventilated area—Heat is the worst enemy for electronic equipment. -
Page 12: Grounding
This is just an example. Actual quantities vary by battery capacity and rates of discharge. NOTE: In the example above, the user would need to be using at least the Renogy 1000W Pure Sine Wave Inverter Charger. Grounding The Renogy Pure Sine Wave Inverter Chargers come equipped with a grounding lug for appropriate grounding to earth ground or to another designated ground (For example, a metal frame of an RV). - Page 13 DC Wiring CAUTION: We recommend installing the inverter as close as possible to the battery bank. The torque rating for the DC terminal is 12.5NM-20.5NM. The torque rating suggested is 17NM. Inverter Cable Size (10 feet distance) 1000W AWG 4-1/0 2000W AWG 2/0 3000W...
-
Page 14: Operation
NOTE: Damage to the Renogy inverters due to reverse polarity is NOT covered by warranty. NOTE: The input terminals of the inverters have large capacitors connected to them. Once a positive and negative wire are connected to the terminals, it will complete the circuit, and commence drawing a heavy current momentarily. - Page 15 A.G.M 2 14.6V 13.7V Sealed Lead Acid 14.4V 13.6V Gel 2 14.4V 13.8V Flooded Lead Acid 14.8V 13.8V Calcium (Open) 15.1V 13.6V Equalization 15.5V for 4 hrs. Not Used Battery Charging Stages Bulk Stage: The charger will supply constant current until the battery voltage reaches the boost voltage.
- Page 16 Equalization: This stage is only available if the battery selector is switched to position 8. During this stage the batteries are charged at a higher voltage than normal and for most batteries this could cause damage. Please refer to the batteries owner’s manual or contact the manufacturer to see if this stage is needed.
- Page 17 Power Saver on Power Saver Mode The Renogy Inverter Charger has two working mode: “Power Saver Off” and “Power Saver AUTO” When the inverter is switched on to Power Saver Off the inverter will supply AC power without any interruptions.
- Page 18 When the inverter is switched on to Power Saver AUTO the inverter will send a signal to the AC loads for 250ms every 3 seconds and if an AC device (50W+) is connected the inverter will start supplying power. NOTE: To activate this mode DIP switch 3 must be set to position 1.
-
Page 19: Inverter Troubleshooting
Auto Gen Start The Renogy Inverter Charger can start up a generator when the low battery voltage set point is reached. The auto gen start feature will only work with generators compatible with this feature. Inverter Troubleshooting The following table will help identify the inverters failure. Use the LED lights and compare with the following graph. - Page 20 Back Beep Feed cont. Short Indicator Troubleshoot Use a multi-meter to check the voltage of the battery. Make sure the battery voltage is not below the rated specification Under Voltage Alarm of the inverter. The inverters have an input requirement of at least 10.5 ±...
-
Page 21: External Fusing
The inverter is only This will happen when the battery voltage is low. Check able to run AC loads battery voltage and resume running loads when battery for a short period of voltage is above 12.7 volts. time External Fusing Fusing is a recommended in electrical systems to provide a safety measure for connections going from battery to inverter charger. - Page 22 A.G.M 2 14.6V 13.7V Sealed Lead Acid 14.4V 13.6V Gel 2 14.4V 13.8V Flooded Lead Acid 14.8V 13.8V Calcium (Open) 15.1V 13.6V Equalization 15.5V for 4 hrs. Renogy reserves the right to change the contents of this manual without notice.
