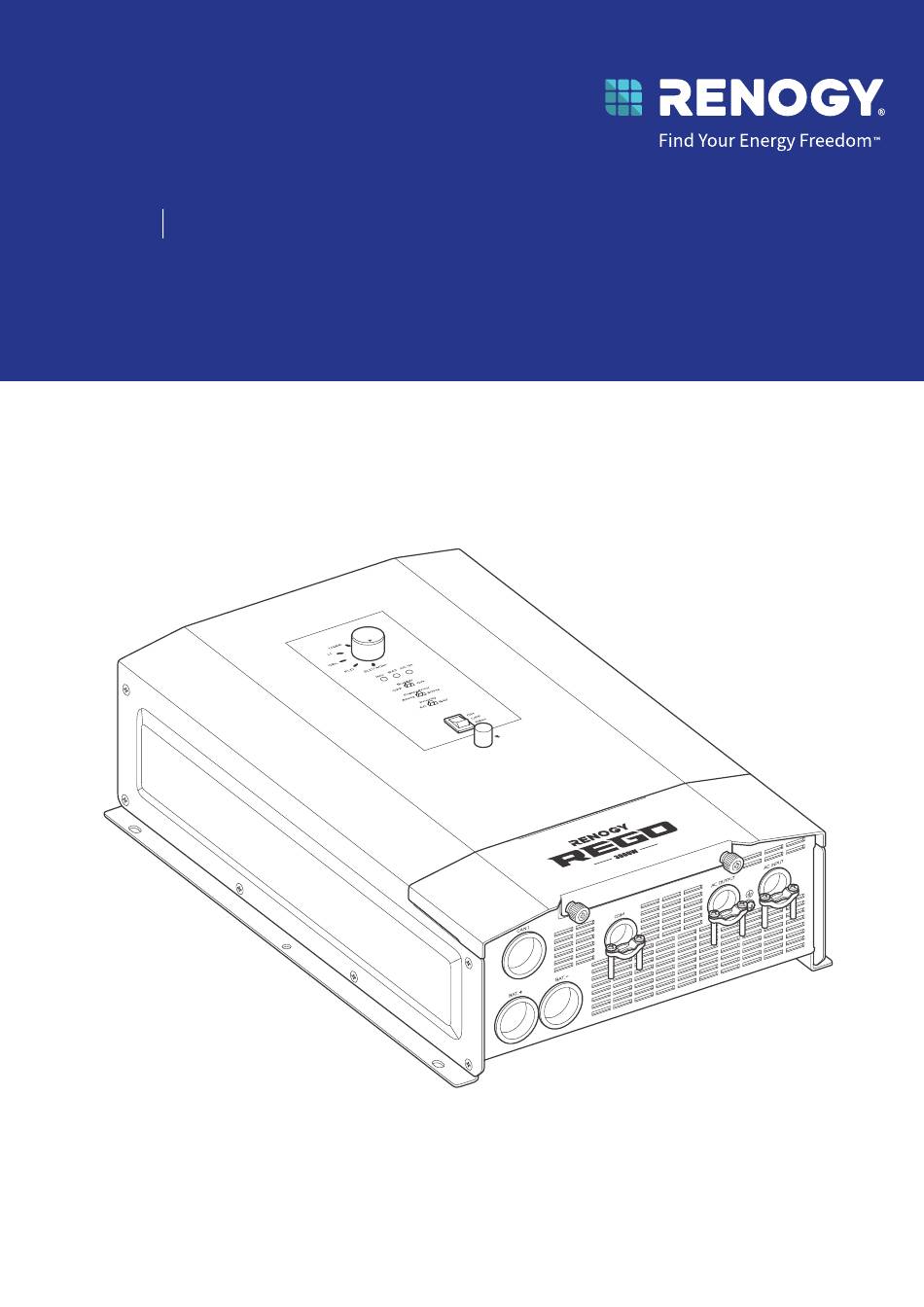

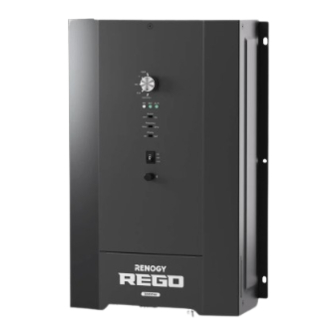

- Page 1 REGO HF Inverter Charger 3000W RIV1230RCH-SPS VERSION A0 QUICK GUIDE...
- Page 2 Renogy is not responsible or liable for any failure, damage, or injury resulting from repair attempts by unqualified personnel, improper installation, or inappropriate operation.
-
Page 3: Table Of Contents
Table of Contents What’s In the Box?..............................1 Required Tools .................................1 Get to Know REGO 12V 3000W HF Inverter Charger ..................2 System Setup ................................. 3 How to Properly Install Cable Clamps? ....................... 4 Step 1. Plan a Mounting Site ..........................4 Step 2. -
Page 4: What's In The Box
What’s In the Box? REGO REGO 12V 3000W HF Inverter Charger × 1 HF Inverter Charger 3000W RIV1230RCH-SPS VERSION A0 QUICK GUIDE Quick Guide × 1 RMS-P2 Wired Remote Control x 1 RJ12 Cable (5m) x 1 ST6.3 x 1.8 x 13 mm... -
Page 5: Get To Know Rego 12V 3000W Hf Inverter Charger
The BTS port can only be used with lead-acid batteries. To Dry Contact Port (DRED) enables the inverter to automatically initiate and stop the AC generator as needed. For detailed instructions, please refer to the user manual available on renogy.com. — 2 —... -
Page 6: System Setup
Circuit Interrupter (GFCI) AC OUT AC IN Fuse (400A) RMS-P2 RV-C or REGO Battery System Wired Remote Grounding Series Devices (12V) Control The wiring diagram only shows the key components in a typical DC-coupled off-grid energy storage system for the illustrative purpose. The wiring might be different depending on the system configuration. -
Page 7: How To Properly Install Cable Clamps
How to Properly Install Cable Clamps? The AC Input Port, AC Output Port, and COM Port are equipped with cable clamps to ensure that the wiring connections remain secure and do not come loose due to vibrations. Step 1. Plan a Mounting Site The inverter charger requires adequate clearance for installation, wiring and ventilation. -
Page 8: Step 2. Mount The Inverter Charger
Step 2. Mount the Inverter Charger Secure the inverter charger to the installation site by using self-tapping screws through the mounting holes. 0.27in (7mm) Make sure that the inverter charger is installed firmly to prevent it from falling off. Step 3. Remove the Cover First, ensure the On/Off/Remote Power Switch is in the OFF position. -
Page 9: Step 5. Install A Wired Remote Control
The Battery Voltage Sensor measures the battery voltage during discharging and compensates for any voltage drop across the cables at the battery terminal. This helps minimize the impact on the battery’s operational voltage. Battery Scenario A: REGO Battery Kit Battery Voltage Sensor Through the grommet of the COM Port —... -
Page 10: Battery Scenario B: Normal Battery Kit
Battery Scenario B: Normal Battery Kit Through the grommet of the COM Port Battery Voltage Sensor Step 7. Install a Battery Temperature Sensor The temperature sensor measures the surrounding temperature of the battery and compensates the floating charge voltage when the battery temperature is low. Do not use the temperature sensor on a LiFePO4 (LFP) battery which comes with a battery management system (BMS). -
Page 11: Step 8. Connect The Inverter Charger To A Battery
*Anderson Adapter Iron Phosphate Battery System Combiner Box (400A) Cable (4/0 AWG) Accessories marked with “*” are available on renogy.com. STEP-1 Install the Cable on the Inverter Charger AC OUT AC IN Through the grommet of the Battery Positive Port and Battery Negative Port... -
Page 12: Battery Scenario B: Normal Battery Kit
The inverter charger can only be connected to deep-cycle gel-sealed lead-acid batteries (GEL), flooded lead-acid batteries (FLD), sealed lead-acid batteries (SLD/AGM) or lithium iron phosphate batteries (LI). Accessories marked with “*” are available on renogy.com. STEP-1 Install the Cables on the Inverter Charger AC OUT... -
Page 13: Step 9. Connect The Inverter Charger To Ac Loads (Appliances)
Step 9. Connect the Inverter Charger to AC Loads (Appliances) Recommended Components & Accessories Recommended Cable Size 10 mm Cable Length Cable Size 0 ft to 10 ft 6 AWG 11 ft to 20 ft 4 to 6 AWG 21 ft to 30 ft 4 AWG Bare Wires ×... -
Page 14: Step 10. Connect The Inverter Charger To The Grid (Optional)
Step 10. Connect the Inverter Charger to the Grid (Optional) Recommended Components & Accessories Recommended Cable Size 10 mm Cable Length Cable Size 0 ft to 10 ft 6 AWG 11 ft to 20 ft 4 to 6 AWG 21 ft to 30 ft 4 AWG Generator Bare Wires ×... -
Page 15: Step 11. Can Communication Wiring (Optional)
Step 11. CAN Communication Wiring (Optional) You can connect the inverter charger to other REGO devices for real-time inter-device data communication through any of the CAN1 Port. The wiring details vary depending on the wiring schemes. This quick guide elaborates on inter-device wiring in two schemes: backbone and daisy chain. - Page 16 STEP-1 Install Cables on the RV-C bus STEP-2 Install Cables on the Inverter Charger Through the grommet of the CAN1 Port — 13 —...
-
Page 17: Daisy Chain Network
Daisy Chain Network Recommended Accessories LP16 Plug (7-Pin) Communication Cable(s) LP16 Terminator Plugs (7-Pin) STEP-1 Install Cables on REGO devices Through the grommet of the CAN1 Port STEP-2 Install Plugs on REGO devices — 14 —... -
Page 18: Step 12. Inspection
Step 12. Inspection Check and confirm all wires are firmly fastened to the inverter charger. Step 13. Install the Cover N-G Bonding Relay The inverter charger is equipped with a Neutral to Ground bonding relay that ensures that either the neutral in or out contact of the RV is always grounded. -
Page 19: Configuration Panel
Configuration Panel Battery Type Setting Knob BAT LED Indicator INV LED Indicator AC IN LED Indicator Buzzer ON/OFF AC Output Frequency Setting AC Output Priority Setting On/Off/Remote Power Switch Set a Battery Type Upon installing the inverter charger, set a correct battery type by using the Battery Type Setting Knob. It is essential to ensure that the battery type setting is configured correctly to avoid any potential damage to the inverter charger because any damage to the inverter charger resulting from an incorrect battery type setting voids the warranty. -
Page 20: User Mode
USER Mode Setting the battery type to USER allows you to customize your battery parameters. You can modify the parameters in the DC Home app. RIV1230RCH-SPS Shore Power Load Battery Boost Battery Output Setting Available Input Voltage lnput Frequency Output Voltage Output Current Load Power Output Frequency... -
Page 21: Enable/Disable The Buzzer
Enable/Disable the Buzzer Default: OFF. The buzzer beeps different patterns specific to system status: Intermittent beeping (0.5s): Warning Continuous beeping: Error Set an AC Output Frequency Configure the AC output frequency of the inverter charger in accordance with the frequency of the connected AC loads. -
Page 22: Power On/Off
Power On/Off Method 1: Through On/Off/Remote Power Switch OFF: The inverter charger is off. The inverter charger uses grid power to directly power AC loads or appliances without drawing power from the batteries. The grid charges the connected battery at the same time. ON: The inverter charger is on. -
Page 23: Led Indicators
Monitor the Inverter Charger Short-Range Monitoring via DC Home App Pair the inverter charger with the DC Home app. Monitor and modify the parameters of the inverter charger via the app. My Renogy HUB Mode Searching for device Time remaining Please make sure: 1. -
Page 24: Wireless Long-Range Monitoring
Wireless Long-Range Monitoring Recommended Components *RENOGY ONE Core or Renogy ONE M1 Internet My Renogy Devices Battery Controller RBT12400LFPL-... RIV1230RCH-SPS Device Scene Community Wired Long-Range Monitoring (Backbone Network) Recommended Components & Accessories *Renogy ONE M1 Common Drop Tap RJ45 Plug to Bare Drop Cable... -
Page 25: Wired Long-Range Monitoring (Daisy Chain Network)
Wired Long-Range Monitoring (Daisy Chain Network) Recommended Components & Accessories *Renogy ONE M1 LP16 Plug (7-Pin) to RJ45 Communication Adapter Cable Internet My Renogy Devices Battery Controller RBT12400LFPL-... RIV1230RCH-SPS Device Scene Community — 22 —... -
Page 26: Important Safety Information
Important Safety Information General z Wear proper protective equipment and use insulated tools during installation and operation. Do not wear jewelry or other metal objects when working on or around the inverter charger. z Keep the inverter charger out of the reach of children. z Do not dispose of the inverter charger as household waste. -
Page 27: Renogy Support
Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: 1(909)2877111 renogy.com/contact-us For technical support outside the U.S., visit the local website below:... - Page 28 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
