  • Page 1 S800H www.metalines.com sales@metalines.com...
  • Page 2 CASSETTA PORTANTE-BEARiNg CASE-CASSON PORTANT TRAgEgEHÄUSE-CAJA PORTANTE- BEHUiZiNg Quote in mm - Dimensions in mm - Cotes en mm - Maße in mm - Cotas en mm - Waarden in mm A (mm) 90° 90° www.metalines.com sales@metalines.com...
  • Page 3 PER GARANTIRE UNA CORRETTA INSTALLAZIONE OCCOR- ZUR GEWÄHRLEISTUNG EINER SACHGEMÄSSEN RE CHE L’ASSE DI ROTAZIONE DELL’ANTA, SIA PERFETTA- MONTAGE MUSS DIE DREHACHSE DES FLÜGELS PERFEKT MENTE ALLINEATO CON L’OPERATORE (Fig. 7) ZUM ANTRIEB GEFLUCHTET SEIN (Abb. 7) TO ENSURE CORRECT INSTALLATION, THE LEAF ROTATION PARA GARANTIZAR UNA CORRECTA INSTALACIÓN ES AXIS MUST BE PERFECTLY ALIGNED WITH THE OPERATOR NECESARIO QUE EL EJE DE ROTACIÓN DE LA HOJA ESTÉ (Fig. 7) PERFECTAMENTE ALINEADO CON EL OPERADOR (Fig. 7) POUR GARANTIR UNE INSTALLATION CORRECTE, L’AXE DE ROTATION DU VANTAIL DOIT ÊTRE PARFAITEMENT ALIGNÉ OM EEN CORRECTE INSTALLATIE TE GARANDEREN MOET SUR L’OPÉRATEUR (Fig. 7) DE ROTATIE-AS VAN DE VLEUGEL PERFECT OP EEN LIJN ZIJN MET DE AANDRIJVING (Fig. 7) www.metalines.com sales@metalines.com...

  • Page 4: Ce Declaration Of Conformity For Machines

    12604 and EN 12605. For non-EU countries, to obtain an adequate level of safety, the 22) Do not allow children, things or adults to stay near the product while it Standards mentioned above must be observed, in addition to national is operating. legal regulations. 23) Keep remote controls or other pulse generators away from children, to 9) FAAC is not responsible for failure to observe Good Technique in prevent the automated system from being activated involuntarily. the construction of the closing elements to be motorised, or for any 24) Transit is permitted only when the automated system is idle. deformation that may occur during use. 25) The user must not attempt any kind of repair or direct action whatever 10) The installation must conform to Standards EN 12453 and EN 12445.

  • Page 5: Technical Specifications

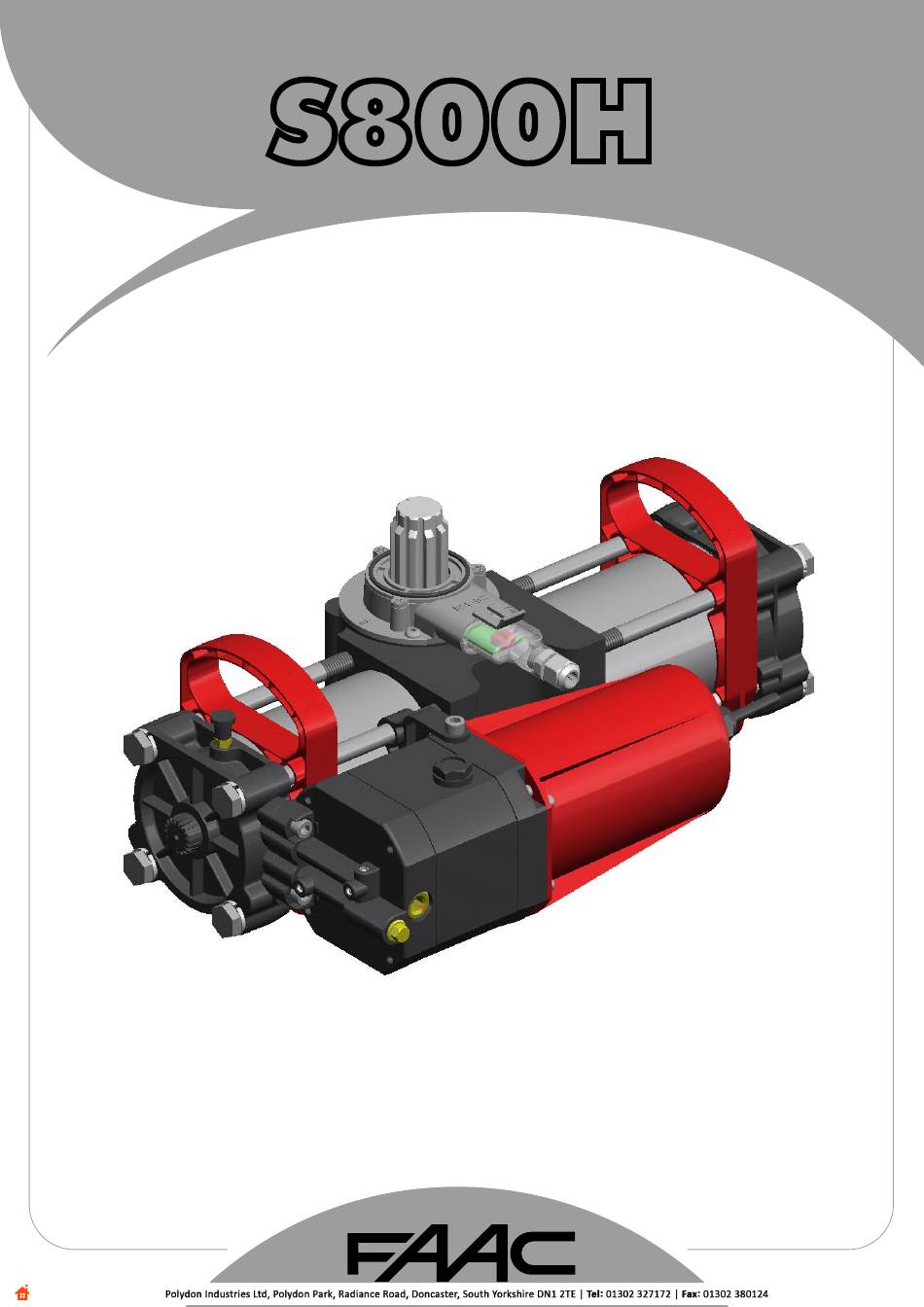

    S800H SB - S800H CBAC / 100° - 180°. FAAC S800H is an automated system in a hydraulic enbloc (CLASS III), permitting vehicle access through swing leaf gates which, when installed invisibly in the ground, does not alter the appearance of the gate.
  • Page 6 4 INSTALLING THE OPERATOR iMPORTANT: REMOVE THE ENCODER (Fig.1 ref. i) BEFORE YOU BEgiN MECHANiCAL iNSTALLATiON 4.1 OPERATOR WITHOUT MECHANICAL EMERGENCY RELEASE TURN THE KEY TILL REACHING THE MECHANICAL STOP-POINT AND WITHDRAW IT FROM THE PINION 1) Take the gate to its open position. 2) Consulting the instructions in chapter 7.1, hydraulically release the operator, using the key on the release screw (Fig.
  • Page 7 NOTE: if necessary, lightly screw the closing travel-limit screw referring to the instructions in chapter 5. 7) Remove the adjustment wrench, screw the plug of the travel 14) Close the gate and check if the closing travel-limit stop is limit screw and grease the pinion. correctly positioned;...
  • Page 8 4.2 OPERATOR WITH MECHANICAL RELEASE TURN THE KEY TILL REACHING THE MECHANICAL 1) Take the gate to its open position. STOP-POINT AND WITHDRAW IT FROM THE PINION 2) Consulting the instructions in chapter 7.1, hydraulically release the operator, using the key (Fig. 1 ref. r ) on the release screw (Fig.
  • Page 9 7) Remove the adjustment key and screw the cap of the travel-limit screw 8) Lightly grease the operator pinion. 9) Using the handles, insert the operator in the bearing case as shown in Fig.17 A,B 90° 10) Take the gate to its CLOSED position. Fig.20 12) Take the released gate into open position, making sure that the released part freed from the gate remains in the gate closed...

  • Page 10: Final Operations

    TRAVEL-LIMIT STOP AT CLOSING in the last 30° of the operator’s MAXIMUM travel, at both opening and closing. FAAC SUPPLIES THE TRAVEL LIMIT DEVICES TOTALLY OPEN ( MAXIMUM PINION ROTATION ANGLE ) , 5.1 ADJUSTMENT OF THE TRAVEL-LIMIT STOPS 1) Hydraulically release the operator. (See chpt 7.1) 2) Close the leaf, manually taking it into its closed position.

  • Page 11: Maintenance

    7.1 HYDRAULIC RELEASE OF THE OPERATOR If the gate has to be moved manually due to a power cut or RELEASE LEVER fault of the automated system, use the hydraulic release device with the release key (Fig.26 ref. b): 1) Remove the cover from the bearing case. 2) Turn the release screw (Fig.26 ref.a) inserting the triangular recess of the supplied key (Fig.26 ref.
  • Page 12 3) Using the bleed screw, allow the air to come out from the hydraulic circuit until non-emulsified oil appears. CLOSING BLEED 4) Tighten the bleed screw before the operator finishes the SCREW opening cycle. 5) Command the gate to close. 6) While the leaf is moving, loosen the closing bleed screw (Fig.29 ref.b) 7) Using the bleed screw, allow the air to come out from the...
  • Page 13 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
