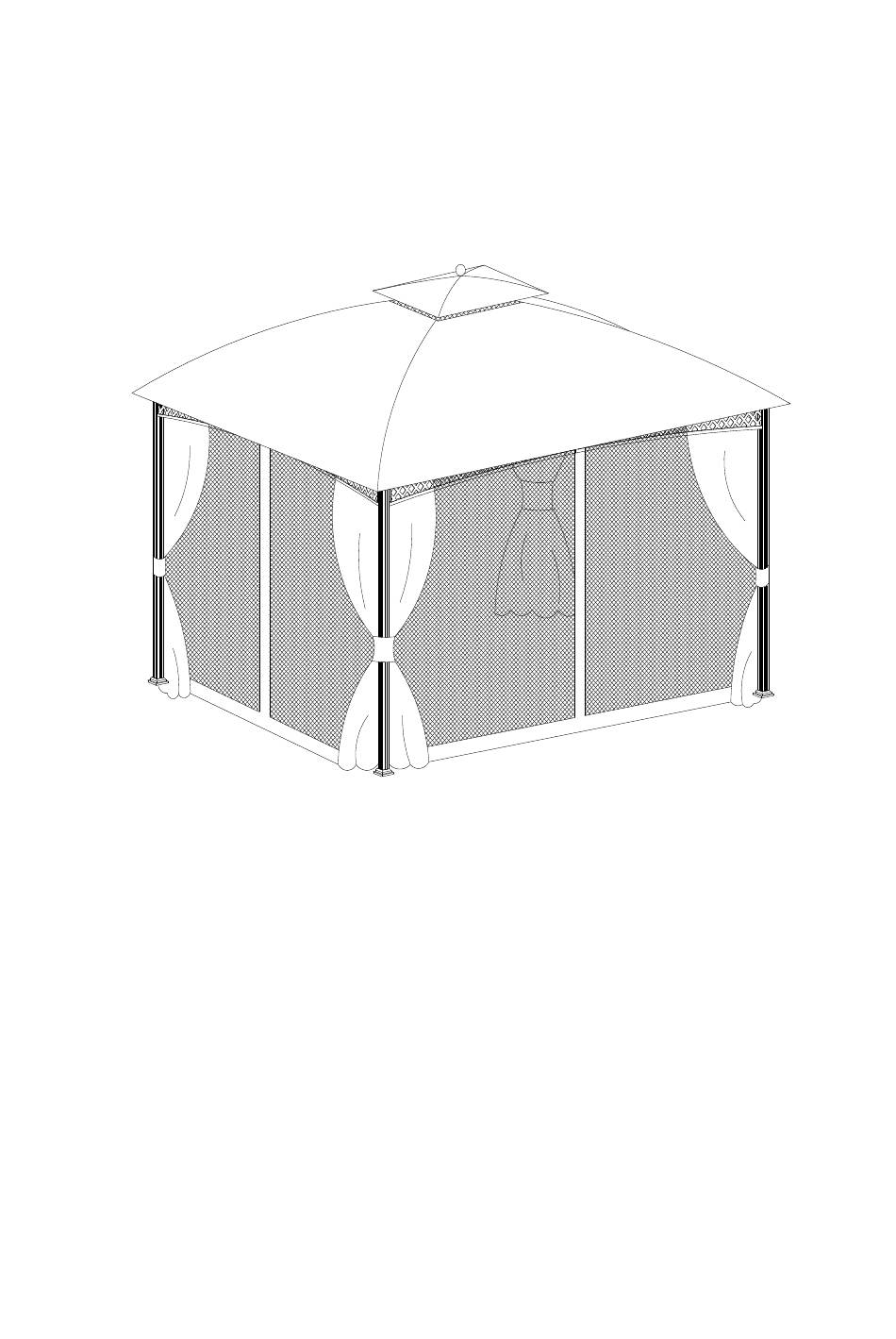

10x12 ft Windsor Dome gazebo-Curtain
Assembly Instruction
Item no# L-GZ717PST-C-CL

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble or install the
product.
WARNING
Keep all children and pets away from assembly area. Children and pets should be supervised
when they are in the area. Keep all flame and heat sources away from the tent fabric. This tent
is made with fabric that meets CPAI-84 specification for flame resistance. It is not fireproof.
The fabric will burn if left in continuous contact with any flame sources. The application of any
foreign substance to the tent fabric may render the flame-resistant properties ineffective.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list. If any part is missing or damaged, do not attempt to assemble the
product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ717PST-C-CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunjoy L-GZ717PST-C-CL

Summary of Contents for Sunjoy L-GZ717PST-C-CL

  • Page 1 10x12 ft Windsor Dome gazebo-Curtain Assembly Instruction Item no# L-GZ717PST-C-CL SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. WARNING Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area.
  • Page 2 Parts List Curtain 1 pc Hardware Plastic ring 52 pcs Fig.1: Loosen the tieback on the post (A1). Fig.2: Remove the curtain (U) from the netting pipe (N, O).
  • Page 3 Fig.3: Take down the plastic ring (GG) from the curtain (U). Fig.1: Fix the plastic ring (GG) curtain (U). Fig.2: Hang the curtain (U) to the outer side of netting pipe (N, O). (Remark: Long side of curtain should contain 7 plastic ring and short side 6 plastic rings.)
  • Page 4 Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com.
