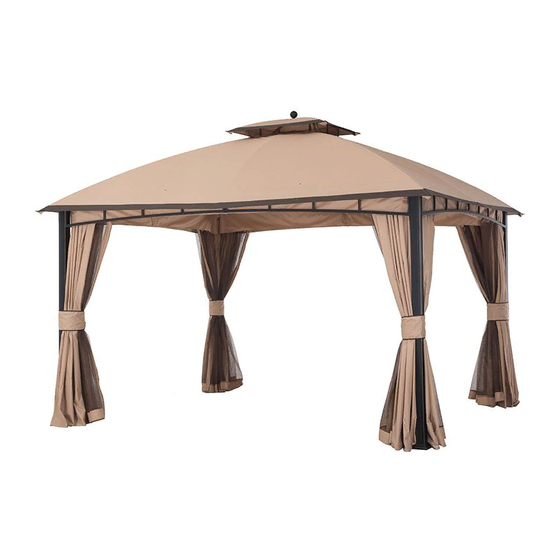

Sunjoy L-GZ717PST-E-GB Mirage Gazebo
Owner's Manual
IMPORTANT
Thank you very much for choosing Sunjoy Group.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
amazon@sunjoygroup.com
or visit
www.sunjoyonline.com
to get tech. assistance or to place your
replacement part order form.
Production Number: 2017xxxx
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ717PST-E-GB
Summary of Contents for Sunjoy L-GZ717PST-E-GB
- Page 1 Sunjoy L-GZ717PST-E-GB Mirage Gazebo Owner’s Manual IMPORTANT Thank you very much for choosing Sunjoy Group. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference. We would like to hear from you with any comments or suggestions. You can call us toll-free at 1-866-578-6569 from 8:00 a.m.
- Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
- Page 3 Parts List Name Qty. Image Post 1 Post 2 Stake Base Stake Base Cover Short side long beam Short side short beam Long side long beam Long side short beam Middle beam down connector Finial Curved beam Curved beam down tube Long middle beam Middle beam down tube Short middle beam...
- Page 4 Small top curved beam Big canopy Small canopy Curtain Mosquito net Hardware Pack 1 Name Qty. Image M6x15 Hexagon Bolt 32 PCS M6 Washer 40 PCS M5x15 Hexagon Bolt 24 PCS M6 Hexagon Nut 8 PCS M5 Washer 24 PCS M5/M6 Wrench 2 PC...
- Page 5 Fig.3: Attach Long side Long Fig.2: Insert long side long beam Fig.1: Put base cover (C) into (F) into long side short beam (G), beam (F) to Post (A1) with Hex post (A1, A2), then attach base then fix with bolt (AA), washer (BB) Bolt (AA) and Washer (BB), (B) to post (A1, A2) with Bolt and nut (EE).
- Page 6 Fig.8: Attach Curved beam Fig.7: Fig.6: Insert Curved beam (J) Insert Curved beam down tube (K) to Posts (A1, into Large top connector (R), (J) into Curved beam down A2) with Bolt (DD), Washer then fix hook (S) onto large top tube (K).
- Page 7 Hardware Pack 3 φ 8*180 Round Stake 16 PCS Plastic Loop 104 PCS Fig.16 ： Spread out Big Fig.14 : Put small canopy Fig.15: Attach finial (I) to canopy (V) , Attach on the (W) on small top, then small top connector (T). corners of Curved beam attach four corners of small down tube (K), Middle beam...
- Page 8 Fig.17: Hang mosquito nets (Y) and Fig.18: Lift base cover (C), secure the whole gazebo to the curtains (X) onto long mosquito net rails (P) and short mosquito net rails lawn by inserting stakes (FF) in (Q) with plastic rings (GG). the holes of each base.
