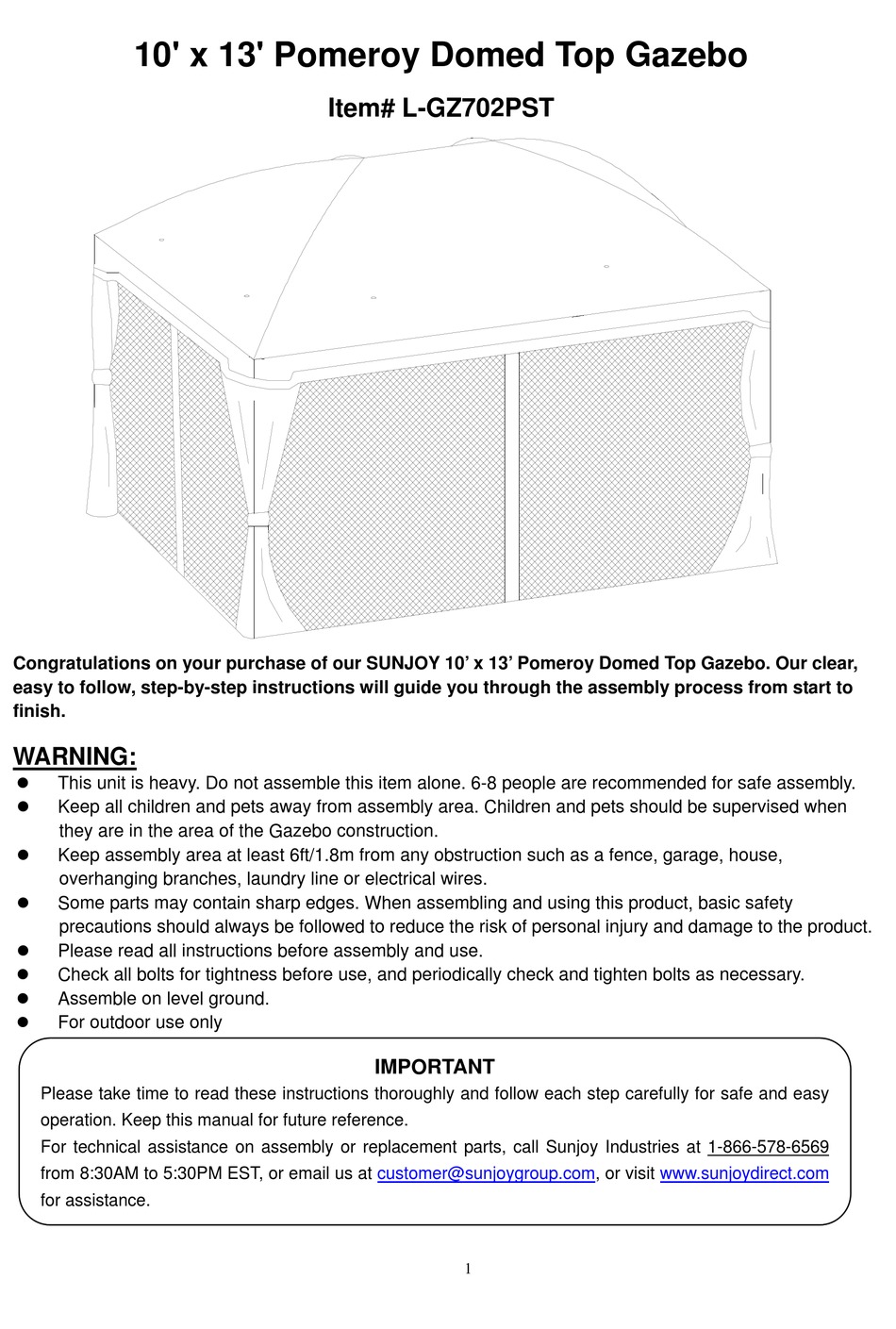

10' x 13' Pomeroy Domed Top Gazebo
Congratulations on your purchase of our SUNJOY 10' x 13' Pomeroy Domed Top Gazebo. Our clear,
easy to follow, step-by-step instructions will guide you through the assembly process from start to
finish.
WARNING:
This unit is heavy. Do not assemble this item alone. 6-8 people are recommended for safe assembly.
Keep all children and pets away from assembly area. Children and pets should be supervised when
they are in the area of the Gazebo construction.
Keep assembly area at least 6ft/1.8m from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the product.
Please read all instructions before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Assemble on level ground.
For outdoor use only
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569
from 8:30AM to 5:30PM EST, or email us at customer@sunjoygroup.com, or visit
for assistance.
Item# L-GZ702PST
IMPORTANT
1
www.sunjoydirect.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ702PST and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy L-GZ702PST

Summary of Contents for Sunjoy L-GZ702PST

  • Page 1 10' x 13' Pomeroy Domed Top Gazebo Item# L-GZ702PST Congratulations on your purchase of our SUNJOY 10’ x 13’ Pomeroy Domed Top Gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish.

  • Page 2: Parts List

    Parts List Description Picture Top Connector Top Connecting Middle Beam Oblique Beam Middle Beam Bottom Connecting Oblique Beam Long Mosquito Netting Runner 1 Long Mosquito Netting Runner 2 Short Mosquito Netting Runner 1 Short Mosquito Netting Runner 2 Beam Connector Corner Support Pole Support Slice Pole...

  • Page 3: Special Warnings

    SPECIAL WARNINGS Assemble the gazebo on a soft, non-abrasive surface, such as carpet or cardboard to avoid damage. After final alignment, make sure all bolts and nuts are securely tightened. Note: Identify all parts packed in carton against the parts list. Remove all the protective material carefully and do not use a knife to prevent scratching the gazebo.
  • Page 4 Hardware Pack 2 Bolt M6X20 16 pcs Flat Washer M6 20 pcs Mosquito Netting Hook 112pcs Bolt M6X25 4 pcs Hardware Pack 3 Stake￠6 x 180 12pcs...

  • Page 5: Assembly Steps

    Assembly Steps · Fig.1: Assemble Long Mosquito Netting Runner 1&2 (E1&E2) together by Beam Connector (G), Bolt (AA), Flat Washer (BB). (Note: Assemble Short Mosquito Netting Runner 1&2 (F1&F2) as above same way.) Fig.2: Put Base (K) under Post (J), then use Bolt (AA) and Flat Washer (BB) to fasten.
  • Page 6 Fig.3: Put assembled Long Mosquito Netting Runner 1&2 (E1&E2) on Pole (J), then use Bolt (CC) and Flat Washer (BB) to insert Bottom Connecting Oblique Beam (D) and lock on Pole (J). Don’t tighten the bolts at this step. Fig.4: Insert Short Mosquito Netting Runner 1&2 (F1&F2) into the gap between Pole (J) and Bottom Connecting Oblique Beam (D), then use Bolt (CC) and Flat Washer (BB) to lock them tightly.
  • Page 7 Fig.7: Insert Top Connecting Middle Beam (A2) to Top Connector (A1) by Bolt (AA) and Flat Washer (BB). Then screw Hook (L) onto Connecting Middle Beam (A2). Fig.8: Insert Oblique Beam (B) into Top Connector (A1). Fig.9: Insert bottom of Oblique Beam (B) into Bottom Connecting Oblique Beam (D). Fig.10: Insert Middle Beam (C) into Top Connector (A1).
  • Page 8 Fig.13: Connect Stake (GG) and Base (K) to ground. Fig.14: Connect Mosquito Netting (N) and Curtain (O) to Mosquito Netting Hook (JJ). (Note: Mosquito Netting should be inside, Curtain should be outside.) Fig.15: Set the Canopy (M), insert the hooks into the grooves on the outside of the beam.
  • Page 9 Limited Warranty Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
  • Page 10 Por favor léase estas instrucciones atentamente y completamente y siga cada etapa cuidadosamente para una operación fácil y segura. Guarde este manual para consultarlo en el porvenir. Para asistencia técnica sobre el montaje o piezas de recambio, llame a Industrias Sunjoy al 8h30...

  • Page 11: Lista De Piezas

    Lista de Piezas Descripción Cantidad Diagrama Conexión del Techo Viga Central de Conexión del Techo Viga Arqueada Viga Central Conexión Inferior de la Viga Arqueada Barra Larga del Mosquitero Barra Larga del Mosquitero Barra Corta del Mosquitero Barra Larga del Mosquitero Conexión de Vigas Soporte de Esquina Pieza de Soporte de la Viga...
  • Page 12 AVISOS ESPECIALES Monte el gazebo sobre una superficie suave y no abrasiva, como sobre una alfombra o un cartón, para evitar daños. Después del aliñamiento final, asegúrese que todos los tornillos y tuercas están apretados fuertemente. Consejo: Identifique todas las piezas del embalaje contra la lista de piezas. Quite el material protector con cuidado y no utilice cuchillos para evitar arañar el gazebo.
  • Page 13 Bolsa de Ferretería 2 Tornillo M6x20 16 piezas Arandela Plana M6 20 piezas Gancho para el Mosquitero piezas Tornillo M6x25 4 piezas Bolsa de Ferretería 3 Estaca￠6x180 12 piezas...
  • Page 14 Etapas de Montaje · Fig.1: Conecte las Barras Largas del Mosquitero 1 y 2 (E1 y E2) juntas con la Conexión de Vigas (G), Tornillo (AA), Arandela Plana (BB). (Aviso: Conecte las Barras Cortas del Mosquitero 1 y 2 (F1 y F2) de la misma forma.) Fig.2: Coloque la Base (K) debajo del Poste (J), y fíjela con Tornillo (AA) y Arandela Plana (BB).
  • Page 15 Fig.3: Coloque las Barras Largas del Mosquitero 1 y 2 (E1 y E2) sobre el Poste (J), introduzca la extremidad inferior de la Conexión de la Viga Arqueada (D) y fíjelas al Poste (J) con Tornillo (CC) y Arandela Plana (BB).
  • Page 16 Fig.7: Introduzca la Viga de Central de Conexión Central del Techo (A2) en la Conexión del Techo (A1) con Tornillo (AA) y Arandela Plana (BB). Luego atornille el Gancho (L) en la Viga Central de Conexión (A2). Fig.8: Introduzca la Viga Arqueada (B) en la Conexión del Techo (A1). Fig.9: Introduzca la parte inferior de la Viga Arqueada (B) en la Conexión Inferior de la Viga Arqueada (D).
  • Page 17 Fig.13: Clave las Estacas (GG) a la Base (K) y a la tierra. Fig.14: Cuelgue el Mosquitero (N) y la Cortina (O) en los Ganchos del Mosquitero (JJ). (Consejo: El Mosquitero se debe colgar en la parte interior, la Cortina al exterior.) Fig.15: Coloque el Toldo (M), introduzca los ganchos en las ranuras de la parte externa de la Viga.
  • Page 18 Garantía Limitada: Las Industrias Sunjoy garantizan, al comprador original, que este articulo está libre de defectos en mano de obra y materiales por un periodo de un 1 año a partir de la fecha de compra, siempre y cuando el articulo esté...
