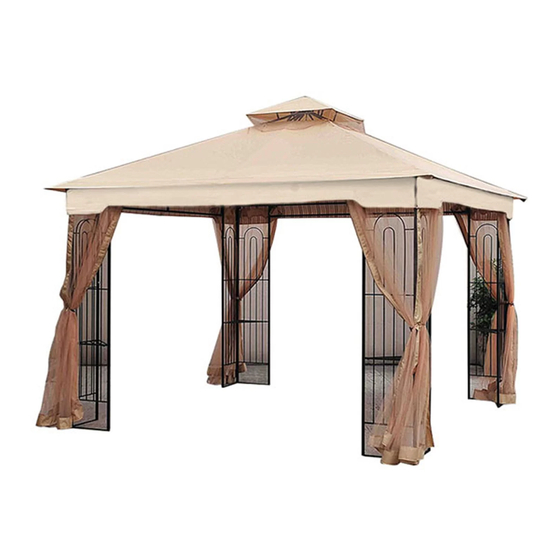

Sunjoy L-GZ747PST-A Lansing Gazebo
Thank you very much for choosing Sunjoy Group.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
amazon@sunjoygroup.com
replacement part order form.
Owner's Manual
IMPORTANT
or visit
www.sunjoyonline.com
to get tech. assistance or to place your
Production Number: 2017xxxx
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ747PST-A
Summary of Contents for Sunjoy L-GZ747PST-A
- Page 1 Sunjoy L-GZ747PST-A Lansing Gazebo Owner’s Manual IMPORTANT Thank you very much for choosing Sunjoy Group. Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference. We would like to hear from you with any comments or suggestions. You can call us toll-free at 1-866-578-6569 from 8:00 a.m.
- Page 2 Cautions: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
- Page 3 Parts List Screen1 Screen 2 Beam1 Beam 2 Shelf Connector Big Canopy Beam Lower Tube Middle Beam Top Connector Mosquito Netting Top Hook Small Canopy...
- Page 4 Assembly Assembling the Beams Assembling the Screens □ □ Insert Beam 1(B1) into Beam 2 (B2) and secure together Attach Screen 2 (A2) to Screen 1 (A1) using Bolts (DD) Flat using Bolt (AA) and Flat Washers (BB). Repeat for each Washer (BB).
- Page 5 Assembly (continued) Connecting the Lower Tubes Attaching the Top Connector to the Screens □ Insert the assembled Beam (F) into the small connector tube of the Top Connector (I). Then install the Hook (K) □ Insert the Lower Tubes (G) into the Screens (A1 and A2). to the Top Connector (I).
- Page 6 Assembly (continued) Attaching the Small Canopy Attaching the Shelves □ Assemble the four corners of the Small Canopy (L), □ Put the shelves (C) on the lower beams of the then unfold the big canopy. Screens (A1 and A2). NOTE: To avoid destroying the finish, please handle it with care.
- Page 7 Care & Maintenance: Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty. To minimize this condition, we recommend care when assembling &...
