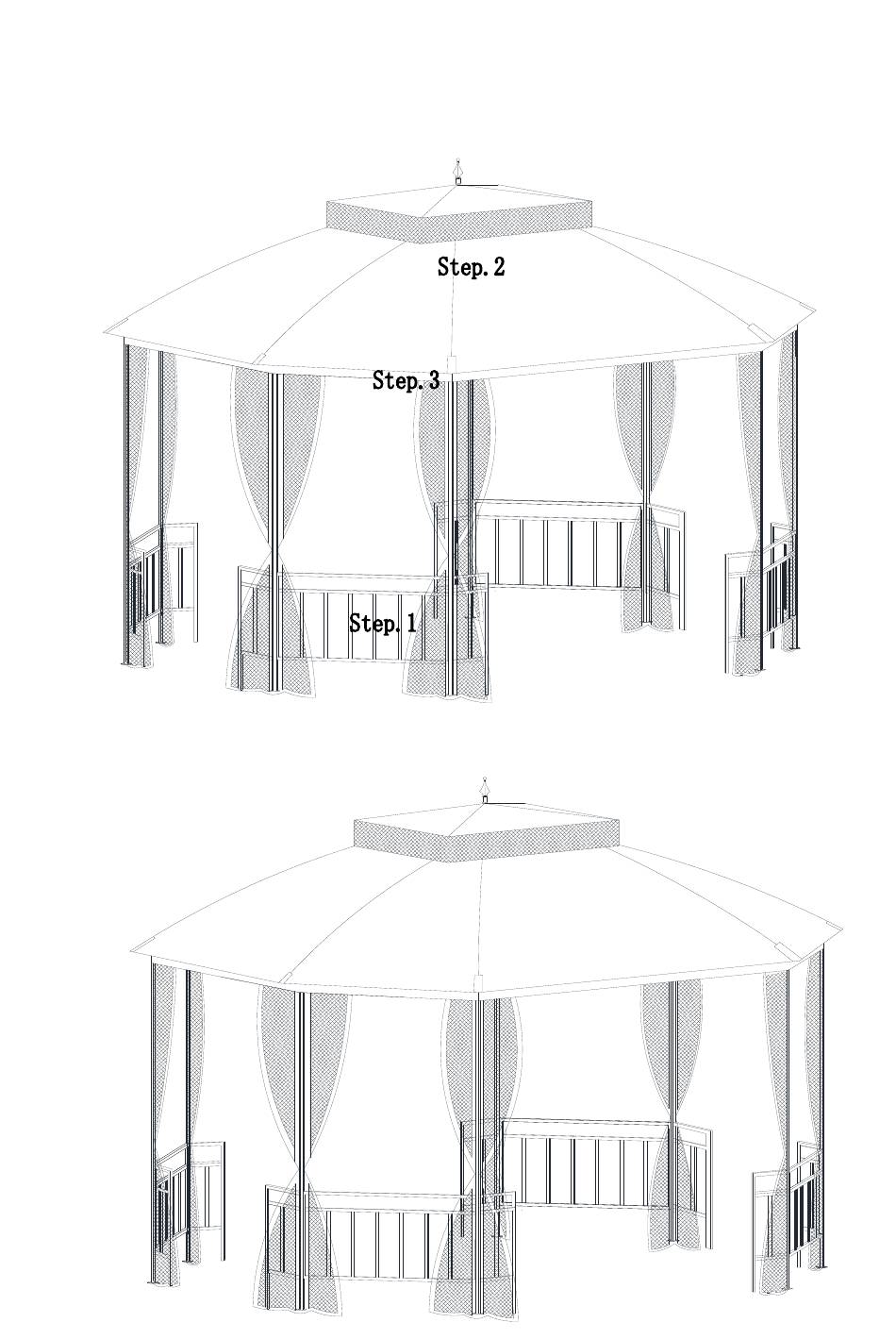

- Page 1 ASSEMBLY INSTRUCTION ITEM # L-GZ762PST-B Production Number:2018xxxx...
- Page 2 IMPORTANT: 1,When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and use. 2, Some parts may contain sharp edges, wear protective gloves if necessary. At least five or more people are recommended for safe assembly.
- Page 3 Parts List P10148B01108 Small roof Connector P10149B01108 Large roof Connector P10041A01108 Decoration P12601C01108 Hook P10267A01108 Small roof Pole P11408B01108 Upper bar P10341B01108 Slant beam 1 P10342B01108 Slant beam 2 P10747A01108 Slant beam connector P11034D01108 Beam1 P11035D01108 Beam 2 P11036D01108 Beam 3 P11183B01108 Post1 P11184B01108...
- Page 4 Hardware Pack 1 P90804A07001 knob 32 PCS Fig.1: Insert small railing (K2) and large railing (K1) into the plate of the post I (J) then tighten the connections with knob (AA). Fig.2: Insert the beam (F,H,G) into the plate of the post I( J),then tighten the connections with knob (AA)
- Page 5 Hardware Pack 2 P12406C01002 stakeФ6*230 16 PCS ig.3: Insert the upper bar (C4) into the connecting tube of large roof connector(A2), secure the hook（B2）to the large roof connector (A2) Fig.4: Insert the beam 1(D1) and beam 2(E2) into the connecting tube of upper bar (C4) Fig.5: Insert the slant beam 1(E2) and slant beam 2(D1) into the connecting tube of slant beam connector (E3) Fig.6: Insert the slant beam connector (E3) into the post I (J) ,then put the large canopy (M) on the assembled large roof, do not unfold Fig.7: Insert the small roof pole (C3) into the connecting tube of small roof connector (A1) ,then put the small canopy (L)
- Page 6 Hardware Pack 3 P90701A07007 Plastic ring 52 PCS Fig.11: Attach the mosquito netting （N）on the beam H( F,G) with plastic ring (BB) Made in China...
