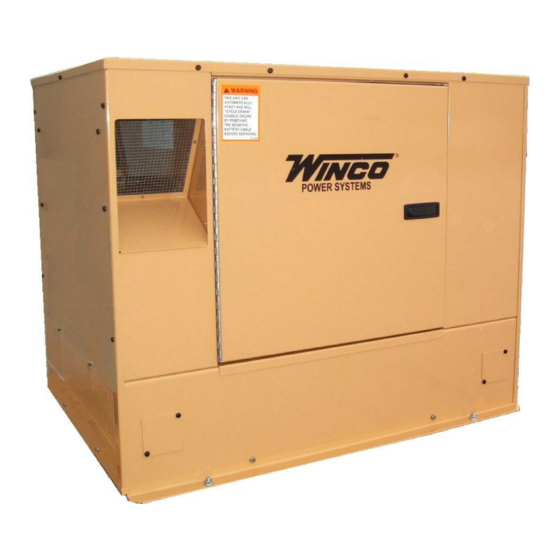

PSS12H2W/E
PSS12H2W/F
GENERATOR
INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us on this unit, it will help us to
respond to your needs faster.
MODEL __________________________________________________
16200-006
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Related Manuals for Winco PSS12H2W/E
Summary of Contents for Winco PSS12H2W/E
- Page 1 OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this manual. The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in the future. 60706-209/I... -
Page 3: Safety
SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING: FIRE HAZARD This engine generator set has been designed and Gasoline and other fuels present a hazard of possible manufactured to allow safe, reliable performance. Poor explosion and/or fire. maintenance, improper or careless use can result in A. -
Page 4: Specifications
SPECIFICATIONS GENERATOR STANDBY Fuel Watts* Volts Amps 12,000 120/240 3600 10,000 120/240 3600 MAIN CIRCUIT BREAKER 50 AMP PRIME Fuel Watts* Volts Amps 9,600 120/240 3600 8,000 120/240 3600 MAIN CIRCUIT BREAKER 40 AMP Derate 3.5% per 1640 feet elevation above sea level. FUEL CONSUMPTION Natural Gas LP Vapor... -
Page 5: Introduction
INTRODUCTION brushless, single bearing, direct drive, rotating field design. TESTING POLICY The generator is connected to the engine’s tapered (quill) crankshaft extension. The engine generator is mounted in Before any generator is shipped from the factory, it is fully a drip-proof enclosure for outside installation. Connection checked for performance. -
Page 6: Preparing The Unit
Use 4-stroke motor oil that meets or exceeds the requirements for or pour it down refuse the shipment and let WINCO take care of the freight API service category SJ or later (or equivalent). Always check the Allow the used oil to drain completely, then reinstall the drain... -
Page 7: Installation
INSTALLATION 60” Minimum 60” Minimum 60” Minimum 24” Minimum 24” Minimum GENERATOR CLEARANCES WARNING: Personal Injury: The enclosures on these units can become very hot These units should be mounted a minimum of 24” from adjacent to the exhaust areas. Special care must be taken a structure. -
Page 8: Liquid Propane Vapor (Lp)
LP TANK SIZING WARNING: FIRE HAZARD: Tank Temperature Tank Size All fuel runs should be installed by a licensed fuel supplier. 60° F (16° C) 150 Gallons 32° F (0° C) 250 Gallons To connect the fuel line to the generator set you will connect your incoming fuel line to the 3/4 inch NPT fitting 0°... -
Page 9: Fuel Pressure Tables
FUEL PRESSURE TABLES The following tables are the fuel pressure readings at each reference in the system. Single low pressure regulator (LP vapor only) Ref# Unit off Line PSI 7-11 in 7-11 in 4-6 oz 4-6 oz Starting Line PSI 7-11 in 7-11 in 4-6 oz... -
Page 10: Lubrication
OIL RECOMMENDATIONS Outdoor temperatures determine the proper oil viscosity for the engines. Winco recommends our 5W-30 fully synthetic oil to give you excellent protection in cold temperatures while maintaining excellent performance in warmer weather. -
Page 11: Installing The Battery
INSTALLING THE BATTERY neutralizing agent. A common practice is to use a CAUTION: solution of one pound of bicarbonate of soda (baking In the following battery installation procedure, check to be soda) to one gallon of water. The bicarbonate of soda is sure the selector switch remains in the ‘off’... -
Page 12: Connecting The Battery Charger
SOLAR CHARGER OPTION (If equipped) The WINCO solar option consists of two parts; one, the solar panel and two, the Sun Guard charge controller. The solar panel collects the energy while the Sun Guard controls the charging process acting as a switch to prevent the solar panel from discharging or overcharging the battery. -
Page 13: Generator Connections
Suggested circuits: freezer, refrigerator, WINCO UL ATS (ASCO 185) furnace, emergency lights, sump pump, emergency outlet circuits, etc. Total running load must not exceed generator See the ASCO installation manual for additional details on rating. -
Page 14: Dc Electrical Interconnection
DC ELECTRICAL INTERCONNECTION CAUTION: Never run the AC and DC wiring on the same conduit. ASCO 185 UL SWITCH Your DC connection points in the ASCO 185 UL ATS are on the terminal block on the bottom of the controller in the lower left hand corner of the ATS panel. -
Page 15: Initial Start Up
INITIAL START UP itch, h cold INITIAL START UP WARNING: DO NOT jump start these engine generator sets. Starting these units WARNING: STOP/RESET (red button) - This button places on a low battery of jump starting them will cause damage to the engine If the the module into its Stop/Reset mode. - Page 16 PUSH BUTTONS TRANSFER SWITCH & ENGINE-GENERATOR On the front control display are the three push buttons that control the operation of the generator and the ATS. Automatic (remote) Operation This procedure checks the electrical operation of the CAUTION: automatic transfer switch. If the actual operation does not follow procedure, consult the trouble-shooting section in Before using the transfer test button, be sure that the transfer switch manual.
- Page 17 EXERCISE WITH OR WITHOUT LOAD The transfer switch can be set up to exercise the generator with or without a load transfer. Normally, WINCO generators exercise without a load transfer. This is because you may not with to have a momentary interruption of power.
-
Page 18: Customer Connection Area
CUSTOMER CONNECTION AREA ENGINE CONTROL MODULE ASSEMBLY CUSTOMER DC CONNECTIONS TO 2-WIRE AUTOMATIC START & TRANSFER FUEL RELAYS SWITCH 1 & LOCATED IN 22/23 BACK EMERGENCY STOP CONTACTS TORQUE PROVIDED SCREWS TO 9.6 FOR REMOTE IN LBS. 14 TO 16 EMERGENCY AWG COPPER STOP SWITCH... -
Page 19: Sequence Of Operation
SEQUENCE OF OPERATION UTILITY FAILURE 60706-209/I... -
Page 20: Dse 3110
DSE 3110 DSE 3110 FAULT CODES FRONT PANEL CONFIGURATION Auxiliary inputs can be user configured and will display he message as written by the user. Fail to Start. The engine has not fired after the preset number of start attempts. Fail to Stop. -
Page 21: Dse 3110 Engine Control
DSE 3110 ENGINE CONTROL PROTECTIONS When an alarm is present, the Common alarm LED (if configured) will illuminate. The LCD display will show an icon to indicate the failure. WARNINGS Warnings are non-critical alarm conditions and do not affect the operation of the generator system; they serve to draw the operator’s attention to an undesirable condition. -
Page 22: Automatic Transfer Switch
PREVENTATIVE MAINTENANCE Reasonable care in preventative maintenance will ensure high reliability and a long life for the engine-generator set and Automatic Transfer Switch. WARNING: When performing any type of maintenance on this equipment, make sure the selector switch on the engine- generator is in the off position. -
Page 23: Trouble Shooting Tables
TROUBLE SHOOTING TABLES ATS PANEL WILL NOT TRANSFER TO EMERGENCY SUPPLY WARNING: 1. No AC generator out put from generator. Never jump start these units. Jump starting these units with 2. See Automatic Transfer Switch Manual. low or bad batteries will cause permanent damage to the engine control module. -
Page 24: Pad Layout Drawing
ENGINE GENERATOR SET PAD LAYOUT DRAWING PAD LAYOUT 60706-209/I... -
Page 25: Ac And Dc Generator Schematic
AC AND DC GENERATOR SCHEMATIC AC AND DC GENERATOR SCHEMATIC ENGINE CONTROLLER ASCO 165 SERIES TRANSFER SWITCH CONTROL TOWER DEEP SEA 3110 CR 1 CR 2 9 POSITION CONNECTOR MLCB (L2) (L6) NEUTRAL T/B GROUND T/B POWER CONNECTIONS ALARM LAMP (SYSTEM OFF) BATTERY FLOAT CHARGER CIRCUIT BREAKER CONTROL RELAY... -
Page 26: Solar Control Panel
SOLAR CONTROL PANEL (IF EQUIPPED) EXTERNAL RECEPTACLE ASSEMBLY (IF EQUIPPED) 60706-209/I... -
Page 27: Solar Panel Assembly
SOLAR PANEL ASSEMBLY (IF EQUIPPED) 60706-209/I... -
Page 28: 12 Month Limited Warranty
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
