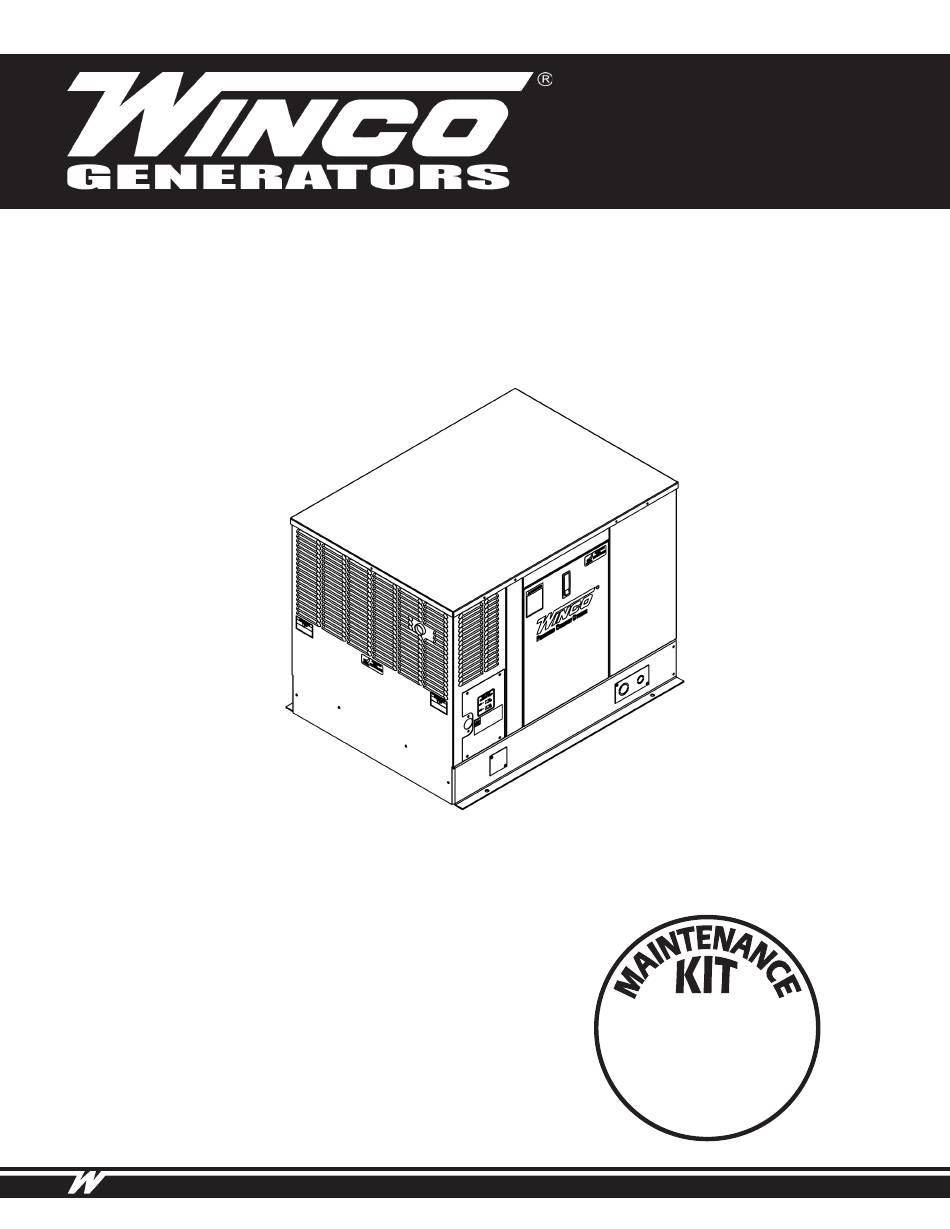

Page 1
MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this manual. The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in the future. 60706-211/J...
SAFETY IMPORTANT SAFETY INSTRUCTIONS WARNING: FIRE HAZARD This engine generator set has been designed and Gasoline and other fuels present a hazard of possible manufactured to allow safe, reliable performance. Poor explosion and/or fire. maintenance, improper or careless use can result in A.
INTRODUCTION TESTING POLICY field design. The generator is connected to the engine’s tapered (quill) crankshaft extension. The engine generator is mounted in a drip-proof enclosure for outside installation. Before any generator is shipped from the factory, it is fully Connection boxes and terminal blocks are provided for all checked for performance.
If any damage is noted, it is always easiest to temperatures while refuse the shipment and let WINCO take care of the freight maintaining excellent claim. If you sign for the unit, the transfer of the ownership performance in warmer weather.
INSTALLATION 60” Minimum 60” Minimum 60” Minimum 24” Minimum 24” Minimum GENERATOR CLEARANCES WARNING: PERSONAL INJURY The enclosures on these units can become very hot These units should be mounted a minimum of 24” from adjacent to the exhaust areas. Special care must be taken a structure.
LP TANK SIZING WARNING: FIRE HAZARD Tank Temperature Tank Size All fuel runs should be installed by a licensed fuel supplier. 60° F (16° C) 150 Gallons To connect the fuel line to the generator set you will 32° F (0° C) 250 Gallons connect your incoming fuel line to the 3/4 inch NPT fitting 0°...
FUEL PRESSURE TABLES The following tables are the fuel pressure readings at each reference in the system. Single low pressure regulator (LP vapor only) Ref# Unit off Line PSI 7-11 in 7-11 in 4-6 oz 4-6 oz Starting Line PSI 7-11 in 7-11 in 4-6 oz...
INSTALLING THE BATTERY 4. Spilled electrolyte is to be washed down with an acid CAUTION neutralizing agent. A common practice is to use a In the following battery installation procedure, check to be solution of one pound of bicarbonate of soda (baking sure the selector switch remains in the ‘off’...
SOLAR CHARGER OPTION (If Equipped) The WINCO solar option consists of two parts; one the solar panel and two the Sun Guard charge controller. The solar panel collects the energy while the Sun Guard controls the charging process acting as a switch to prevent the solar panel from discharging or overcharging the battery.
Suggested circuits: freezer, refrigerator, WINCO UL ATS (ASCO 185) furnace, emergency lights, sump pump, emergency outlet circuits, etc. Total running load must not exceed generator See the ASCO installation manual for additional details on rating.
DC ELECTRICAL INTERCONNECTION CAUTION Never run the AC and DC wiring on the same conduit. ASCO 185 UL SWITCH Your DC connection points in the ASCO 185 UL ATS are on the terminal block on the bottom of the controller in the lower left hand corner of the ATS panel.
INITIAL START UP INITIAL START UP cold WARNING: WARNING STOP/RESET (red button) - This button places DO NOT jump start these engine generator sets. Starting these units the module into its Stop/Reset mode. This DO NOT jump start these engine generator sets. Starting on a low battery of jump starting them will cause damage to the engine will clear any alarm conditions for which the these units on a low battery of jump starting them will...
Page 15
EXERCISE WITH OR WITHOUT LOAD The transfer switch can be set up to exercise the generator CAUTION with or without a load transfer. Normally, WINCO Before using the transfer test button, be sure that generators exercise without a load transfer. This is because...
CUSTOMER CONNECTION AREA Function Factory Actuator START & Setting Switch Actuator Position FUEL RELAYS ENGINE LOCATED IN CONTROL Clock On (up) BACK MODULE Battery Off (down) ASSEMBLY On (up) Exerciser Off (down) With load With (up) Without or without Without Load EMERGENCY load...
DSE 3110 DSE 3110 FAULT CODES FRONT PANEL CONFIGURATION Auxiliary inputs can be user configured and will display he message as written by the user. Fail to Start. The engine has not fired after the preset number of start attempts. Fail to Stop.
DSE 3110 ENGINE CONTROL PROTECTIONS When an alarm is present, the Common alarm LED (if configured) will illuminate. The LCD display will show an icon to indicate the failure. WARNINGS Warnings are non-critical alarm conditions and do not affect the operation of the generator system; they serve to draw the operator’s attention to an undesirable condition.
Refer to the Maintenance Schedule chart for required oil • Replace air filter change intervals. • Replace fuel filter • Service cooling system Outdoor temperatures determine the proper oil viscosity for the engines. Winco recommends our 5W-30 fully synthetic • Clean oil cooler fins 60706-211/J...
TROUBLESHOOTING ATS PANEL WILL NOT TRANSFER TO EMERGENCY SUPPLY WARNING 1. No AC generator out put from generator. Never jump start these units. Jump starting these units with 2. See Automatic Transfer Switch Manual. low or bad batteries will cause permanent damage to the engine control module.
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
