D2143D8UM2
D2123D8UM2
User Manual
Version 1.0
Published April 2019
Copyright©2019 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2143D8UM2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK Rack D2143D8UM2

Summary of Contents for ASROCK Rack D2143D8UM2

  • Page 1 D2143D8UM2 D2123D8UM2 User Manual Version 1.0 Published April 2019 Copyright©2019 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Rack has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installation of Memory Modules Expansion Slot (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 DRAM Configuration 3.3.3 Chipset Configuration 3.3.4 Storage Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 Runtime Error Logging 3.3.11 Intel SPS Configuration 3.3.12 Intel(R) VMD Technology 3.3.13 Intel(R) Virtual RAID on CPU 3.3.14 Instant Flash...
  • Page 6 Exit Screen Chapter 4 Software Support Install Operating System Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service Appendix Mezzanine Card Support List Appendix TPM Module Support List...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 8: Specifications

    1.2 Specifications D2143D8UM2 / D2123D8UM2 MB Physical Status Form Factor mATX Dimension 9.6'' x 9.6'' (24.4 cm x24.4 cm) Processor System Supports Intel® Xeon® D-2100 Series Processors (Max. 110W) *D-2123IT: 60W / D-2143IT: 65W Chipset System Memory Capacity - 8 x 288-pin DDR4 DIMM slots...
  • Page 9 256Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 3.1 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU/PCH/DDR/LAN/Storage Temperature Sensing - MB/Card side/TR1 Temperature Sensing...
  • Page 10 - SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP3 (64 bit) - UBuntu 16.04 (64 bit) /18.04 (64 bit) - Fedora 26 (64 bit) - FreeBSD 11.2 (64 bit) Virtual: - VMWare ESXi 6.5 u1 - Citrix XenServer 7.2 - Win hyper-V Server 2016 *Please refer to our website for the latest OS support list.

  • Page 11: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

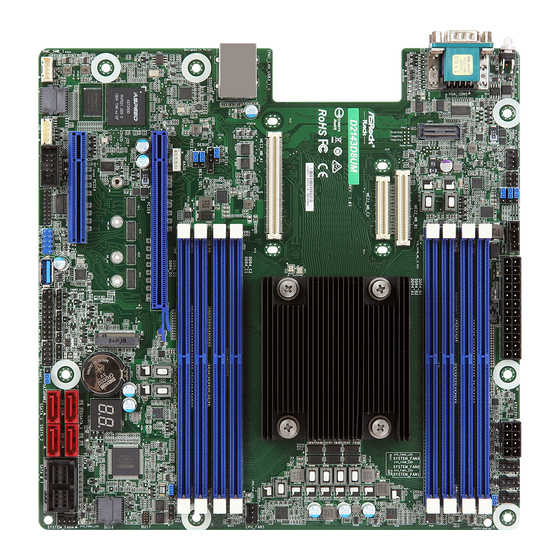

  • Page 12: Motherboard Layout

    64 bit, 288-pin module, White DDR4_A1 ( DDR4, 64 bit, 288-pin module, Blue) DDR4_A2 DDR4, 64 bit, 288-pin module, White MEZZ_MB_B1 MEZZ_MB_C1 D2143D8UM2 / D2123D8UM2 RoHS MEZZ_MB_A1 CPU1 USB 3.0 IPMI CPU_FAN1 T: USB2 DDR4_C2 ( DDR4, 64 bit, 288-pin module,...
  • Page 13 D2143D8UM2 / D2123D8UM2 Description System Fan Connector (SYSTEM_FAN5) ME Recovery Jumper (ME_RECOVERY1) Chassis ID Jumper (CHASSIS_ID3) Chassis ID Jumper (CHASSIS_ID2) PSU SMBus (PSU_SMB1) Chassis ID Jumper (CHASSIS_ID1) ATX Power Connector (ATXPWR1) ATX 12V Power Connector (ATX12V1) System Fan Connector (SYSTEM_FAN3)
  • Page 14 Description COM Port Header (COM2) Intelligent Platform Management Bus header (IPMB1) BMC SMB Header (BMC_SMB_1) PCI Express 3.0 Card Slot 4 (PCIE4) Speaker Header (SPEAKER1) PCI Express 3.0 Card Slot 6 (PCIE6) Virtual RAID On CPU Header (RAID_1) CPU PECI Jumper (PECI1) NCSI Mode Jumper (NCSI_SEL1) Mezzanine Card Slot (MEZZ_MB_A1)* Mezzanine Card Slot (MEZZ_MB_C1)*...

  • Page 15: Onboard Led Indicators

    D2143D8UM2 / D2123D8UM2 1.5 Onboard LED Indicators UID1 DDR4_B1 ( DDR4, 64 bit, 288-pin module, Blue) DDR4_B2 ( DDR4, 64 bit, 288-pin module, White DDR4_A1 ( DDR4, 64 bit, 288-pin module, Blue) DDR4_A2 DDR4, 64 bit, 288-pin module, White MEZZ_MB_B1...
  • Page 16 Item Status Description SYS_FAN5_LED Amber SYSTEM_FAN5 failed SB_PWR1 Green STB PWR ready SYS_FAN3_LED Amber SYSTEM_FAN3 failed SYS_FAN2_LED Amber SYSTEM_FAN2 failed SYS_FAN1_LED Amber SYSTEM_FAN1 failed CPU_FAN_LED Amber CPU_FAN1 failed SYS_FAN4_LED Amber SYSTEM_FAN4 failed BMC_LED1 Green BMC heartbeat LED...

  • Page 17: I/O Panel

    D2143D8UM2 / D2123D8UM2 1.6 I/O Panel No. Description No. Description UID Switch (UID1) USB 3.1 Gen1 Ports (USB3_1_2) VGA Port (VGA1) LAN RJ-45 Port (IPMI_LAN)* COM Port (COM1) LAN Port LED Indications *There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

  • Page 18: Block Diagram

    1.7 Block Diagram...

  • Page 19: Chapter 2 Installation

    D2143D8UM2 / D2123D8UM2 Chapter 2 Installation This is a mATX form factor (9.6'' x 9.6'', 24.4 cm x 24.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

  • Page 20: Pre-Installation Precautions

    Do not over-tighten the screws! Doing so may damage the motherboard. 2.2 Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. 1. Unplug the power cord from the wall socket before touching any components. 2.

  • Page 21: Installation Of Memory Modules

    D2143D8UM2 / D2123D8UM2 2.3 Installation of Memory Modules This motherboard provides eight 288-pin DDR4 (Double Data Rate 4) DIMM slots in two groups, and supports Six and Dual Channel Memory Technology. The DIMM only fits in one correct orientation. It will cause permanent damage to the...

  • Page 22: Expansion Slot (Pci Express Slots)

    2.4 Expansion Slot (PCI Express Slots) There are 2 PCI Express slots on this motherboard. PCIE slot: PCIE4 (PCIE 3.0 x8 slot, from CPU1) is used for PCI Express x8 lane width cards. PCIE6 (PCIE 3.0 x16 slot, from CPU1) is used for PCI Express x16 lane width cards. Slot Generation Mechanical...

  • Page 23: Jumper Setup

    D2143D8UM2 / D2123D8UM2 2.5 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 24 SATA DOM Power Jumper (3-pin SATAPWR1) (see p.6, No. 26) SATA DOM (SSATA_3) SATA DOM (SSATA_3) requires 5V power supply does NOT require 5V power supply (Default) Consult the documentation that comes with your SATA DOM and check whether or not Pin 7 requires 5V power supply.

  • Page 25: Onboard Headers And Connectors

    D2143D8UM2 / D2123D8UM2 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 26 Auxiliary Panel Header This header supports multiple (18-pin AUX_PANEL1) functions on the front panel, (see p.6, No. 30) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows you to connect SMBus (System Management Bus) equipment. It can be used for communication between peripheral equipment in the system, which has slower transmission rates, and power management equipment.
  • Page 27 Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. *For more details, please refer to the Cooler QVL list on the ASRock Rack website. System Connectors Please connect a fan cable to...
  • Page 28 Clear CMOS Pads This allows you to clear the (CLRMOS1) data in CMOS. To clear CMOS, (see p.6, No. 18) take out the CMOS battery and short the Clear CMOS Pad. Mini-SAS HD Connector The connector supports (SATA_0_7) MiniSAS-to-SATA (see p.6, No. 21) data cables for internal storage devices with up SATA_0_7...
  • Page 29 D2143D8UM2 / D2123D8UM2 Chassis Speaker Header Please connect the chassis DUMMY SPEAKER (4-pin SPEAKER1) speaker to this header. (see p.6, No. 38) DUMMY Non Maskable Interrupt Please connect a NMI device Button Header to this header. (2-pin NMI_BTN1) (see p.6, No. 29)
  • Page 30 TPM Header This connector supports (17-pin TPM1) Trusted Platform Module (see p.6, No. 35) (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. LAN3_LINK Front LAN LED These 4-pin connectors...

  • Page 31: Dr. Debug

    D2143D8UM2 / D2123D8UM2 2.7 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT...
  • Page 32 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 33 D2143D8UM2 / D2123D8UM2 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 34 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 35 D2143D8UM2 / D2123D8UM2 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 36 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 37: Led/Switches

    D2143D8UM2 / D2123D8UM2 2.8 LED/Switches Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on. Press the UID button again to turn off the indicator.

  • Page 38: M.2_Ssd (Ngff) Module Installation Guide

    2.10 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket (M2_1) supports a M.2 PCI Express module up to Gen 3 x4 (6Gb/s). Installing the M.2_SSD (NGFF) Module Step 1 Prepare a M.2_SSD (NGFF) module...
  • Page 39 D2143D8UM2 / D2123D8UM2 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and NUT4 NUT3 NUT2 NUT1 4 and go straight to Step 5 if you are going to use the default nut.

  • Page 40: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI Setup Utility 3.1 Introduction Th is section explains how to use the UEFI SETUP UTILITY to confi gure your system. Th e UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer.

  • Page 41: Navigation Keys

    D2143D8UM2 / D2123D8UM2 3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 42: Main Screen

    3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 43: Advanced Screen

    D2143D8UM2 / D2123D8UM2 3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, DRAM Configuration, Chipset Configuration, Storage Configuration, ACPI Configura- tion, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/ W Monitor, Runtime Error Logging, Intel SPS Configuration, Intel(R) VMD Technology, Intel(R) Virtual RAID on CPU and Instant Flash.

  • Page 44: Cpu Configuration

    3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU turbo ratio can be fixed when Intel SpeedStep Technology set Disabled and Intel Turbo Boost Technology set En- abled.
  • Page 45 D2143D8UM2 / D2123D8UM2 Limit is exceeded. Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance.
  • Page 46 CPU C6 State Support Enable C6 deep sleep state for lower power consumption. Enhanced Halt State(C1E) Enable Enhanced Halt State (C1E) for lower power consumption. Hardware P-States Disable: Hardware chooses a P-state based on OS Request (Legacy P-States) Native Mode: Hardware chooses a P-state based on OS guidance Out of Band Mode: Hardware autonomously chooses a P-state (no OS guidance) AES-NI Use this item to enable or disable AES-NI support.

  • Page 47: Dram Configuration

    D2143D8UM2 / D2123D8UM2 3.3.2 DRAM Configuration Enforce POR Enforce POR - Enforces Plan Of Record restrictions for DDR4 frequency and voltage programming. Disable - Disables this feature. DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically.

  • Page 48: Chipset Configuration

    3.3.3 Chipset Configuration MMCFG Base Use this item to select MMCFG Base. MMIO High Base Use this item to select MMIO High Base. MMIO High Size Use this item to select MMIO High Size. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).
  • Page 49 D2143D8UM2 / D2123D8UM2 VT-d Intel(R) Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and provid- ing additional levels of manageability, security, isolation, and I/O performance. PCIE4/PCIE6 Link Width This allows you to select PCIE4/PCIE6 Link Width. The default value is [Auto].

  • Page 50: Storage Configuration

    3.3.4 Storage Configuration Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. SATA Controller Use this item to enable or disable SATA Controllers. SATA Mode Selection Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
  • Page 51 D2143D8UM2 / D2123D8UM2 sSATA/M.2_SATA Mode Selection Identify the sSATA port is connected to Solid State Drive or Hard Disk Drive. Press <Ctrl+I> to enter RAID ROM during UEFI POST process. sSATA ALPM Use this item to enable or disable Support Aggressive Link Power Management.

  • Page 52: Acpi Configuration

    3.3.5 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the powersoft- off mode.

  • Page 53: Usb Configuration

    D2143D8UM2 / D2123D8UM2 3.3.6 USB Configuration Legacy USB Support Enable or disable Legacy OS Suppor t for USB 2.0 dev ices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux...

  • Page 54: Super Io Configuration

    3.3.7 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of COM1. Serial Port Use this item to enable or disable the serial port (COM). Change Settings Use this item to select an optimal setting for Super IO device. SOL Configuration Use this item to set parameters of SOL.
  • Page 55 D2143D8UM2 / D2123D8UM2 Serial Port Use this item to enable or disable the serial port (COM). Change Settings Use this item to select an optimal setting for Super IO device.

  • Page 56: Serial Port Console Redirection

    3.3.8 Serial Port Console Redirection COM 1 / SOL / COM2 Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.
  • Page 57 D2143D8UM2 / D2123D8UM2 Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200].
  • Page 58 computer and the host computer to which you are connected exchange information. Redirection COM Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Resolution On Legacy OS, the Number of Rows and Columns supported redirection. Redirect After POST When Bootloader is selected, then Legacy Console Redirection is disabled before booting to legacy OS.
  • Page 59 D2143D8UM2 / D2123D8UM2 CTS], and [Software Xon/Xoff]. Data Bits Parity Stop Bits...

  • Page 60: H/W Monitor

    3.3.9 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. Fan Control If [Auto] is selected, the fan speed will controlled by BMC.
  • Page 61 D2143D8UM2 / D2123D8UM2 SYSTEM_FAN5 This allows you to set the System fan5’s speed. The default value is [Smart Fan]. Smart Fan Control This allows you to set the Smart fan’s level speed. Smart Fan Duty Control Smart Fan Duty x (x means 1 to 11 stage) This allows you to set duty cycle for each stage.

  • Page 62: Runtime Error Logging

    3.3.10 Runtime Error Logging WHEA Support Use this item to enable or disable Windows Hardware Error Architecture. System Error Use this item to enable or disable System Error feature. When it is set to [Enabled], you can configure Memory Error and PCIE Error log features. S/W Error Injection Support When it is set to [Enabled], S/W Error Injection is supported by unlocking MSR Ox790.
  • Page 63 D2143D8UM2 / D2123D8UM2 PCIE Uncorrected Error Enable Use this item to enable or disable PCIe Uncorrectable errors. PCIE Fatal Error Enable Use this item to enable or disable PCIe Fatal errors.

  • Page 64: Intel Sps Configuration

    3.3.11 Intel SPS Configuration SPS screen displays the Intel SPS Configuration information, such as Operational Firmware Version and Firmware State.

  • Page 65: Intel(R) Vmd Technology

    D2143D8UM2 / D2123D8UM2 3.3.12 Intel(R) VMD Technology Intel(R) VMD for Volume Management Device on Socket 1 Intel(R) VMD for Volume Management Device Technology Use this item to enable or disable Intel(R) Volume Management Device Technology in this Stack. When [Enabled], users are allowed to configure the options below.
  • Page 66 specific root port. Hot Plug Capable Use this item to enable or disable Hot Plug for PCIe Root Ports 1A-1D.

  • Page 67: Intel(R) Virtual Raid On Cpu

    D2143D8UM2 / D2123D8UM2 3.3.13 Intel(R) Virtual RAID on CPU This formset allows the user to manage Intel(R) Virtual RAID on CPU.

  • Page 68: Instant Flash

    3.3.14 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive, floppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other compli- cated flash utility.

  • Page 69: Security

    D2143D8UM2 / D2123D8UM2 3.4 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 70: Key Management

    3.4.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.
  • Page 71 D2143D8UM2 / D2123D8UM2 Remove 'UEFI CA' from DB Device Guard ready system must not list ‘Microsoft UEFI CA’ Certificate in Autho- rized Signature database (db). Restore DB defaults Restore DB variable to factory defaults. Platform Key(PK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 72 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1.
  • Page 73 D2143D8UM2 / D2123D8UM2 Key Source: Factory, External, Mixedt OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3.

  • Page 74: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option #2 Use this item to set the system boot order.
  • Page 75 D2143D8UM2 / D2123D8UM2 Bootup Num-Lock If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up. Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed.

  • Page 76: Csm(Compatibility Support Module)

    3.5.1 CSM(Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows Server 2012 R2 or later ver- sions 64-bit UEFI and all of your devices support UEFI, you may also disable CSM for faster boot speed.
  • Page 77 D2143D8UM2 / D2123D8UM2 PCIE4/PCIE6 Slot OpROM Use this item to select slot storage and Network Option ROM policy. In Auto option, the default is Disabled with NVMe device, but it is Legacy with other devices. (This item can't select Video Option ROM policy.) Mezz_MB_AB Slot OpROM Use this item to select slot storage and Network Option ROM policy.

  • Page 78: Event Logs

    3.6 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 79: Server Mgmt

    D2143D8UM2 / D2123D8UM2 3.7 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 90 seconds to initialize Host to BMC interfaces.

  • Page 80: System Event Log

    3.7.1 System Event Log SEL Components Change this to enable ro disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL. Log EFI Status Codes Use this item to disable the logging of EFI Status Codes or log only error code or only progress code or both.

  • Page 81: Bmc Network Configuration

    D2143D8UM2 / D2123D8UM2 3.7.2 BMC Network Configuration BMC Out of Band Access Enabled/Disabled BMC Out of band Access. Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots.
  • Page 82 The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp...

  • Page 83: Exit Screen

    D2143D8UM2 / D2123D8UM2 3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY.

  • Page 84: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 85: Chapter 5 Troubleshooting

    D2143D8UM2 / D2123D8UM2 Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 86 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 87: Technical Support Procedures

    D2143D8UM2 / D2123D8UM2 5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.

  • Page 88: Appendix Mezzanine Card Support List

    Appendix Mezzanine Card Support List This motherboard supports the following ASRock Rack mezzanine cards. Mezz Card Type Mezz Slot Type Model LAN Card Mezz Type A M350 LAN Card Mezz Type A M350R LAN Card Mezz Type A M540 LAN Card...
