Manual de
ESPAÑOL: PÁGINA 9
FRANÇAIS: PAGE 17

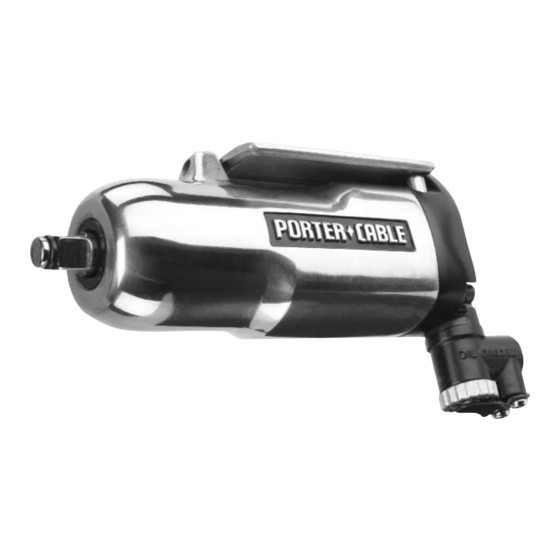

3/8" Butterfly
Impact Wrench
Herramienta neumática de
impacto, mariposa 3/8"
Clé à chocs de 3/8 po
pour écrous à oreilles
MODEL PT381
MODELO PT381
MODÈLE PT381
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
IMPORTANTE
Asegúrese de que la persona que va a usar esta
herramienta lea cuidadosamente y comprenda
estas instrucciones antes de empezar a
operarla.
IMPORTANT
Veuillez vous assurer que la personne qui
utilise cet outil lit attentivement et comprend
ces instructions avant de commencer à utiliser
l'outil.
Part No. D22726-028-3

Advertisement

Table of Contents
loading

Related Manuals for Porter-Cable PT381

Summary of Contents for Porter-Cable PT381

  • Page 1 Clé à chocs de 3/8 po pour écrous à oreilles MODEL PT381 MODELO PT381 MODÈLE PT381 To learn more about Porter-Cable visit our website at: http://www.porter-cable.com IMPORTANT Para obtener más información sobre Please make certain that the person who is...

  • Page 2: Safety Guidelines - Definitions

    SAFETY GUIDELINES - DEFINITIONS This manual contains indicates an imminently hazardous situation which, if not information that is avoided, will result in death or serious injury. important for you to know and indicates a potentially hazardous situation which, if not understand.
  • Page 3 HAZARD RISK OF LOSS OF HEARING WHAT COULD HAPPEN HOW TO PREVENT IT • Long term exposure to noise produced from the opera- • Always wear ANSI S3.19 hearing protection. tion of air tools can lead to permanent hearing loss. HAZARD RISK TO BREATHING INHALATION HAZARD WHAT COULD HAPPEN...
  • Page 4 HAZARD RISK OF INJURY (continued) WHAT COULD HAPPEN HOW TO PREVENT IT • Improperly maintained tools and accessories can cause • Maintain the tool with care. serious injury. • Keep a cutting tool sharp and clean. A properly maintained tool, with sharp cutting edges reduces the risk of binding and is easier to control.

  • Page 5: Specifications

    SPECIFICATIONS Free Speed @ 90 PSI 11,000 Blows Per Minute @ 90 PSI 1800 Maximum Torque 75 FT./LBS. Maximum Working Pressure 90 PSI Air Inlet 1/4" NPT Recommended Hose Size 3/8" I.D Air Consumption @ 90 PSI 3.5 SCFM ASSEMBLY Accessories Required Line pressure or hose inside diameter should be increased to compensate for IMPORTANT:...

  • Page 6: Maintenance

    MAINTENANCE Lubrication Air tools require lubrication throughout the life of the tool. The air motor and bearing uses compressed air to power the tool. Because moisture in compressed air will rust the air motor, you must lubricate the motor daily. An inline oiler is recommended. To lubricate the air motor manually: Disconnect the tool from the air supply holding it so the air inlet faces up.

  • Page 7: Repair Parts

    REPAIR PARTS Note: No serviceable Parts 7- ENG D22726...

  • Page 8: Limited Warranty

    • Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
