4 Overview

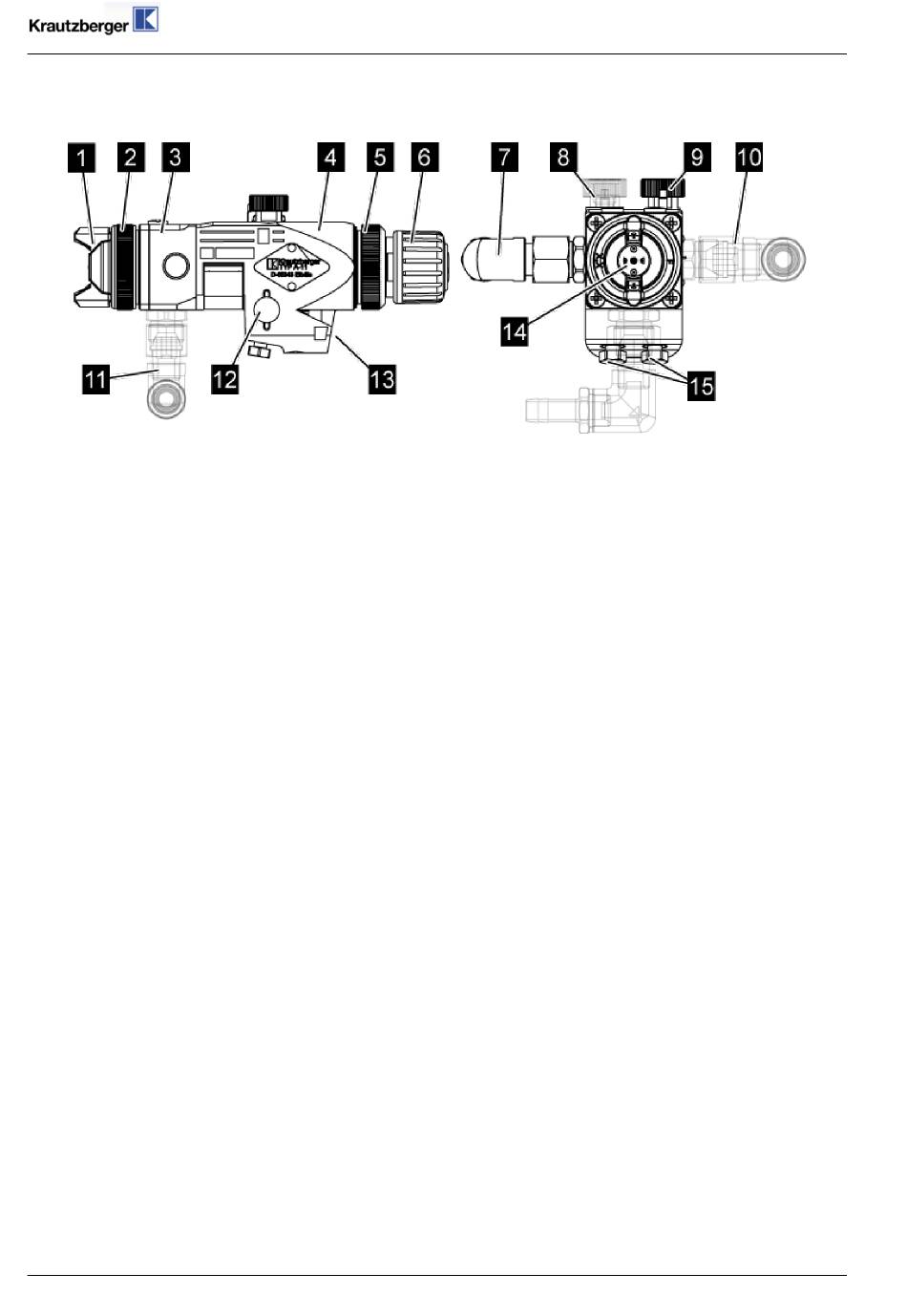

Fig. 1: Overview
1
Air nozzle (flat, round, rotary jet or full-
cone rotary jet)
2
Clamping nut
3
Transition part
4
Main element
5
Closing piece
6
Adjustment nut for needle stroke
7
Connection angle (simple fluid connection)
8
Round jet regulator (R) (option)
GB–14
Operating instructions
9
Flat jet regulator (F)
10
Connection angle (option circulation con-
nection)
11
Connection angle (lower fluid connection)
12
Fastening hole
13
Connection control (St)/atomisation air
(Z)
14
Fluid nozzle (flat, round, rotary jet or full-
cone rotary jet)
15
Fastening screws
