Summary of Contents for ProHD DT-N21H

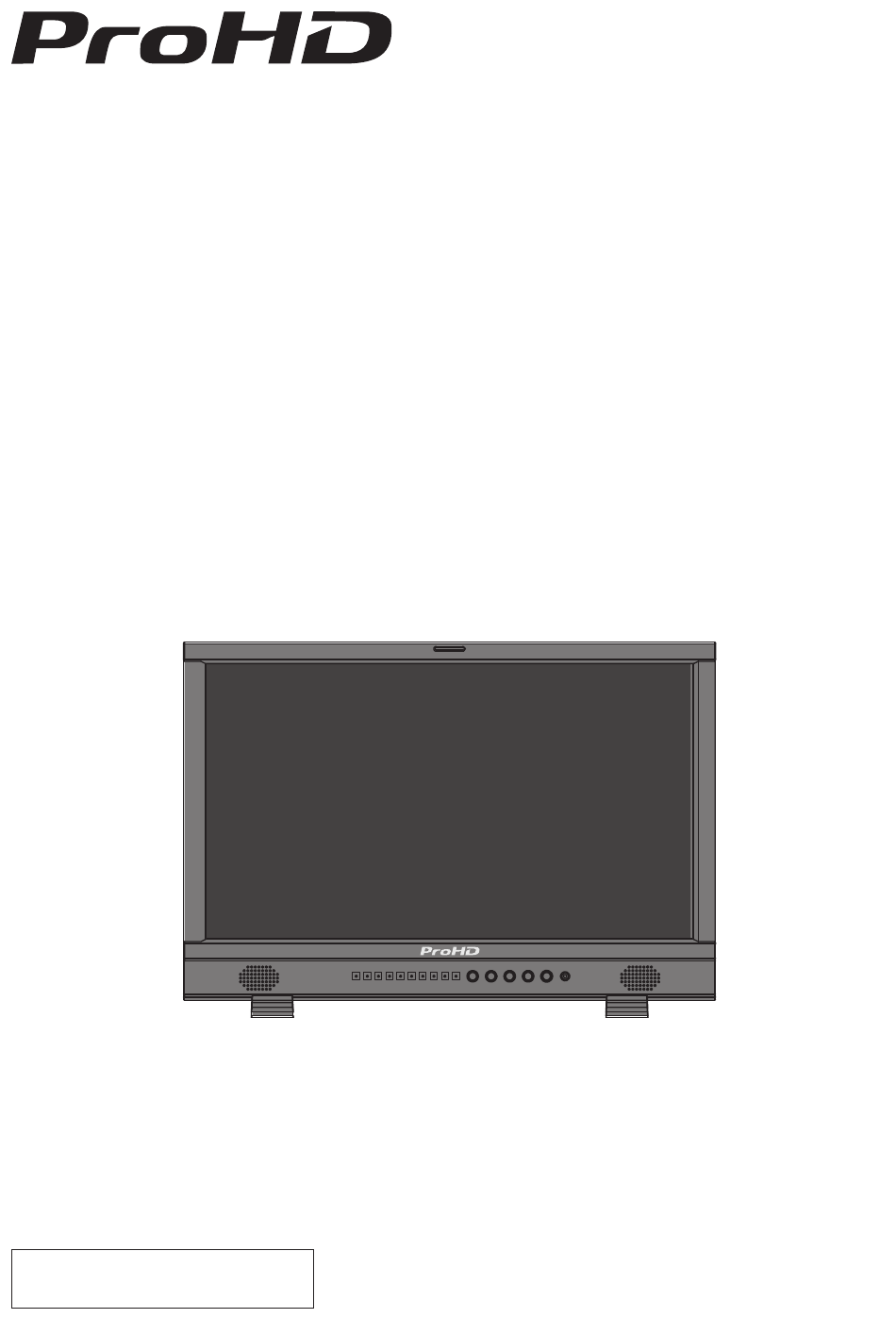

- Page 1 MULTI FORMAT LCD MONITOR DT-N21H INSTRUCTIONS For Customer Use: Please read the Instruction Manual carefully and retain this information for future reference. Version:A...
-
Page 2: Safety Precautions
Safety Precautions The lightning flash with arrowhead symbol, within an equilateral triangle is CAUTION intended to alert the user to the presence of uninsulated “dangerous voltage” RISK OF ELECTRICAL SHOCK within the product’s enclosure that may DO NOT OPEN be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Safety Precautions (cont.) Do not attempt to service this product yourself, as opening or • When the product is left unattended and unused for a long removing covers may expose you to dangerous voltages and period of time, unplug it from the wall outlet and disconnect other hazards.
-
Page 4: Operating Precautions
Safety Precautions (cont.) IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
Table of Contents Safety Precautions ............2 IMPORTANT SAFEGUARDS Operating Precautions . -
Page 6: Installation
Installation Do not rest your arm on the monitor or lean against the monitor. Do not touch the LCD panel when installing the monitor. Be sure to install the monitor securely to prevent the monitor from falling over, which may cause damage to the monitor or injury. surface using screws Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged. -
Page 7: Index Of Parts And Functions
Index of Parts and Functionos Rear panel RS-485 CVBS RS-232C VGA-IN HDMI OUT1 OUT2 3G/HD/SD-SDI AUDIO-IN Firmware upgrade 1 REMOTE terminal Terminal for controlling the monitor by an external control ( “External Control” on page 17 2 Y / Pb / Pr (IN) terminals (BNC) 3 CVBS terminals (BNC) Input (IN) and output (OUT) terminals for the composite signals. -
Page 8: Front Panel
Index of Parts and Functionos (cont.) Front panel Tally lamp This lamp is controlled by the tally function of the Make contact terminal. ( External Control on Page 17.) • You can select the color of the tally lamp from "Green", "Red", or "Yellow". -
Page 9: Showing Input Signals
Showing Input Signals Volume Adjustment When no menu screen is not displayed, revolve the “VOLUNE MENU/PUSH”button Clockwise revolve “VOLUME MENU/PUSH” knob to volume up, and anticlockwise revolve to volume down. The volume value range is 0-31. The “Volume” screen disappears automatically if no operations are made for 3 seconds. Volume On the Information Display TC：00:15:13:07... -
Page 10: The Operation Procedure
The Operation Procedure Press the MENU button to display the Main Menu Revolve “VOLUME MENU/PUSH” to select submenu, the selected submenu highlights in yellow, press “VOLUME MENU/PUSH” to apply and enter into the selected submenu’s items Revolve “VOLUME MENU/PUSH” to select the item which needed to adjust, press “VOLUME MENU/PUSH”, the selected item and its parameters will be highlighted in yellow. -
Page 11: Main Menu
Main Menu Picture Function Setting for the picture quality. Item To do Setting value Exit Return Main Menu Contrast Adjusts the contrast of the display. 0 to 100 Brightness Adjusts the brightness of the display. 0 to 100 Saturation Adjusts the saturation of the display. 0 to 100 Sharpness Adjusts the sharpness of the display. - Page 12 Setting UMD control parameters (TSL UMD Protocol V3.1/4.0, provided by Television System LTD.) Item To do Setting value Exit Return Main Menu Address setting RS485 Address 1 to 126 1 to 126: Set a particular address Position Position setting Top、Bottom Display Type Choose Display Type Source ID、UMD...
- Page 13 Audio Setting Setting for the audio meters and channel selection Item To do Setting value Exit Return Main Menu Display setting Audio Bar On、 Bar Frame : Off Bar Frame : On Display setting Bar Frame*1 On: Displayed, On、 Yellow Green -04DB -06DB Top Right、Bottom Left、...
- Page 14 When set to “Yes”, next time switch on the monitor, the monitor will automatically scan the available signal source with the sequence of “SDI1→SDI2→HDMI→YPbPr→VGA→CVBS”. *2 Logo When powered on, the screen will display ProHD logo. *3 Green Mode When no recognized signal is detected and opreation time reaches the time selected in “Idle Duration”, the monitor will turn to green energy saving mode: “Green mode”.
- Page 15 *4, *5 Update Driver/ Kernel Operation steps: 2. Press “MENU/ENTER”, enter “Main Menu” - “System”, and select “Update Driver” or “Update Kernel”. 3. Set “Yes”, the monitor will upgrade automatically. Main Menu System Exit Exit&Status ＞ Picture ＞ Scan Mode XXXX Zoom Mode Color Temp...
-
Page 16: External Control
External Control Using the GPI control About the external control This monitor has three external control terminals. Pin No Pin name RS-485 terminal (RJ-45): Controls the monitor with the RS-485 GPI 1 system. GPI 2 The terminal is to connect with TallyMan system of UMD application. GPI 3 RS-232C terminal (D-sub 9-pin): Controls the monitor with the GPI 4... -
Page 17: Troubleshooting
Troubleshooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult an authorized dealer or service center. Symptom Page Probable cause and corrective action press ”POWER”... -
Page 18: General
General Model name DT-N21H Type Multi format LCD monitor Screen size Type 21.5 wide format Aspect ratio 16:9 Horizontal/vertical frequency 61.93kHz – 92.9 kHz (computer signal) 50 Hz – 75 Hz * Some signals within this frequency range may not be displayed Compliant video signal format “Available signals”... -
Page 19: Dimensions
Dimensions Unit: mm (inch) DT-N21H <Rear view> <Side view> Front view 525.3(20 11/16) VESA mounting holes 86(3 3/8) (Size: M4, depth: 10 mm) 477.8(18 13/16) (3 15/16) 34(1 5/16) 14(9/16) 383.7(15 1/8) 135(5 5/16) 429.4(16 7/8) -
Page 20: Available Signals
Available signals The following signals are available for this monitor. Video signals Input terminal Signal format shown in Signal name the status display CVBS YPbPr HDMI NTSC √ — — — — NTSC — — NTSC 4.43 NTSC √ — —... - Page 21 Computer signals (preset) Analog RGB input (COMP./RGB terminals) and DVI input (HDMI terminal): Signal name Scan system Horizontal Vertical Horizontal (kHz) Vertical (Hz) VGA60 31.5 59.9 Non-interlace SVGA60 37.9 60.3 XGA60 1024 48.4 60.0 WXGA(1280) 1280 47.8 60.0 WXGA+60*1 1440 55.9 60.0 SXGA60*1...
- Page 22 MEMO...
- Page 23 This model is manufactured, warranted and supported by SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC, and distributed in North America by JVCKENWOOD USA Corporation To obtain service or for further information, please contact: SWIT Electronics USA, LLC. Address: 3350 Scott Blvd. 61-02, Santa Clara, CA 95054 Toll free: 1 866 986-SWIT (7948) •...
