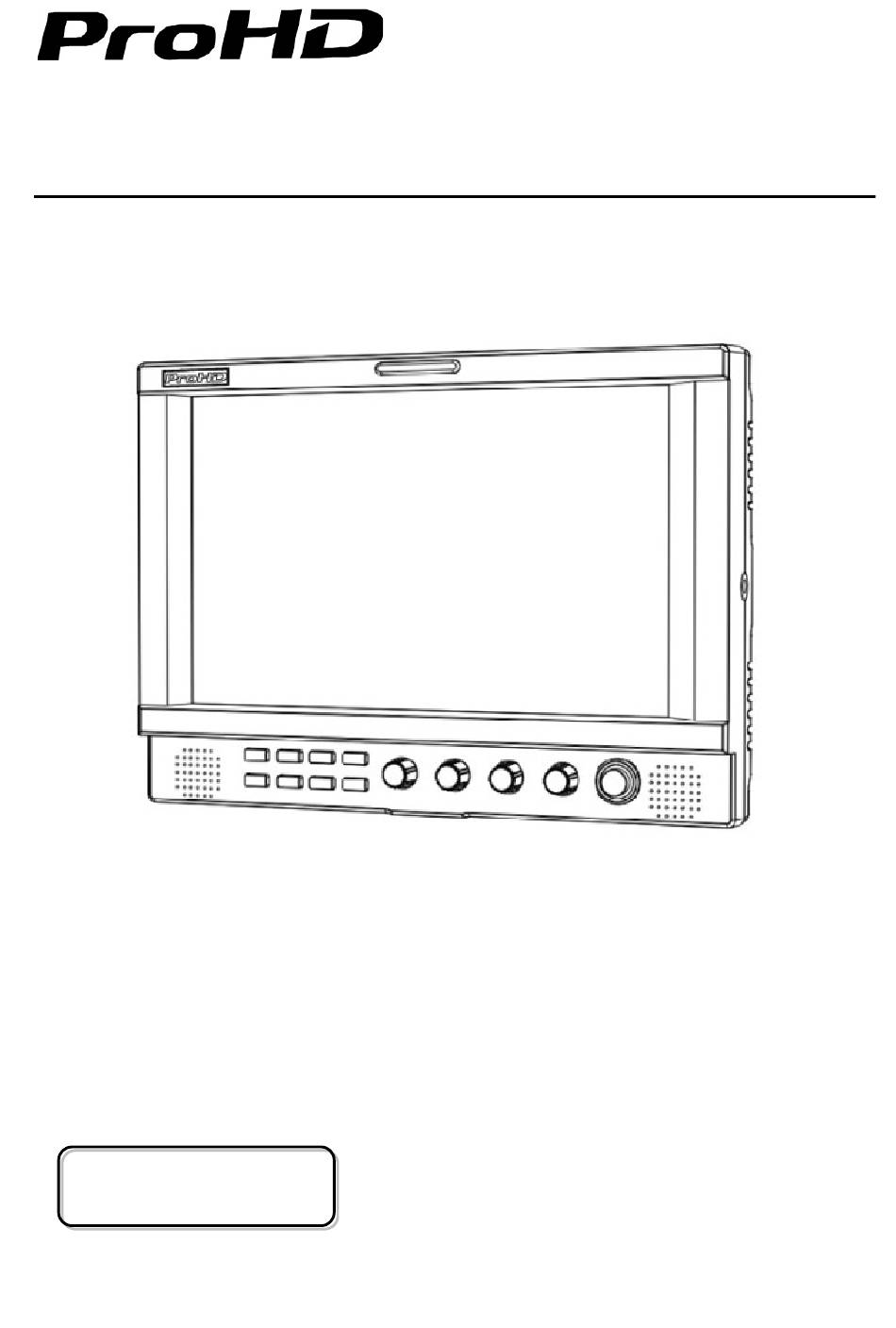

- Page 1 Model: DT-X92F 9” Full HD Broadcast LCD Monitor User Manual Ver: A Please read this User Manual throughout before using.
-
Page 2: Preface
Preface 1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks are protected and other relative trademarks in this user manual are the property of their respective owners. -
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents
Contents Preface ..............................2 Maintenance ............................3 Contents ..............................4 Packing list ............................... 4 Operation Instructions ..........................5 ·Front Panel ............................. 5 ·OSD ................................6 ·Back Panel ............................. 8 Main Menu ............................... 9 Sub-Menu .............................. 10 Specification ............................16 Dimensions ............................17 Trouble-shooting ............................ -
Page 5: Operation Instructions
Operation Instructions ·Front Panel ⑴ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if headphone socket is plugged in) ⑵ Buttons SOURCE: Press “SOURCE” to select SDI1, SDI2, HDMI, and CVBS signal input F1～F5: User definable function keys. Please see details in “4. Function key” under “Main Menu”. WFM: Waveform shortcut key, press “WFM”... -
Page 6: Osd
·OSD ⑴ Timecode (SDI) Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC: UNLOCKED”. User can set function keys F1～F5 or GPI pins as “Timecode” to turn on or off this function. ⑵... - Page 7 Introduction of audio and video functions 16-ch embedded audio meters Under 2K/3G/HD SDI, it displays 16 channels embedded audio meters. Under SD-SDI and HDMI, it displays 8 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.
-
Page 8: Back Panel
·Back Panel ⑴ TALLY Light: Red, Green and Yellow 3-color TALLY indicator. ⑵ DC IN: Connect with 4-pin XLR power adapter, support 6.5V-24V voltage input (Pin 1: Negative, Pin 4: Positive) ⑶ Battery mount connector The monitor has V-mount plate pre-installed, and supplied an SSL-JVC50 battery plate in package for exchange. -
Page 9: Main Menu
Main Menu DT-X92F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will pop-up from the left top of the screen. The selected main menu highlights in yellow. -
Page 10: Sub-Menu
Sub-Menu (the default values are marked with underline) 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3. - Page 11 4. Function key To define the F1～F5 function keys. *1 Function keys F1～F5 can be set as the down below functions: Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Focus Assist , Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, CVBS, HDMI , SDI1, SDI2 ,Color Temp, Time Code, Zebra, Vector.
- Page 12 6. UMD Support “TSL UMD Protocol-V4.0” provided by Television System LTD Source ID Setup: Select “Source ID”, revolve “MENU/ENTER” to select the letters and press “MENU/ENTER" to input. Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen.
- Page 13 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 When “Audio Alarm” is set to “On”, if no embedded audio is detected, the audio bar will display “UNLOCKED”.
- Page 14 9. Vector 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line: Off WFM Single Line: On 11.
- Page 15 When set to “Yes”, after turn on the monitor, the signal will be inspected and follow the sequence of “SDI1→SDI2→HDMI→CVBS”. *2 Logo When powered on, the screen will display ProHD logo. *3、*4 Update Driver/ Kernel Download latest firmware files in USB disk - root directory.
-
Page 16: Specification
Specification LCD Performance 9 inches Size Display area 191.5×119.7 mm Resolution 1920×1200 Color 8 bit Aspect ratio 16:9 / 4:3 Brightness 450 cd/m Contrast 1000:1 Viewing Angle Horizontal: 170° Vertical: 170° Input/output BNC×2 2K/3G/HD/SD-SDI ×2 BNC×1 CVBS input HDMI×1 HDMI input Input GPI×1 UMD, GPI control input... -
Page 17: Dimensions
Dimensions The main body (in mm) -
Page 18: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is The power is not turned on connected, and then press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact or Check and correctly connect the BNC not correctly connected or HDMI cable... - Page 19 This model is manufactured by SWIT Electronics Co., Ltd. and distributed, warranted and supported in Europe by JVCKENWOOD Deutschland GmbH To obtain service or for further information, please contact: JVCKENWOOD Deutschland GmbH · Konrad-Adenauer-Allee 1-11 · 61118 Bad Vilbel Telefon: +49 (0) 6101 / 4988 - 0 · Telefax: +49 (0) 6101 / 4988 - 50 www.jvcpro.eu...
